Intel D525MW User Manual

Intel Desktop Board D525MW and Intel Desktop Board D525MWV Technical Product
Specification
24
1.8.2 RJ-45 LAN Connector with Integrated LEDs
Two LEDs are built into the RJ-45 LAN connector (shown in Figure 3).

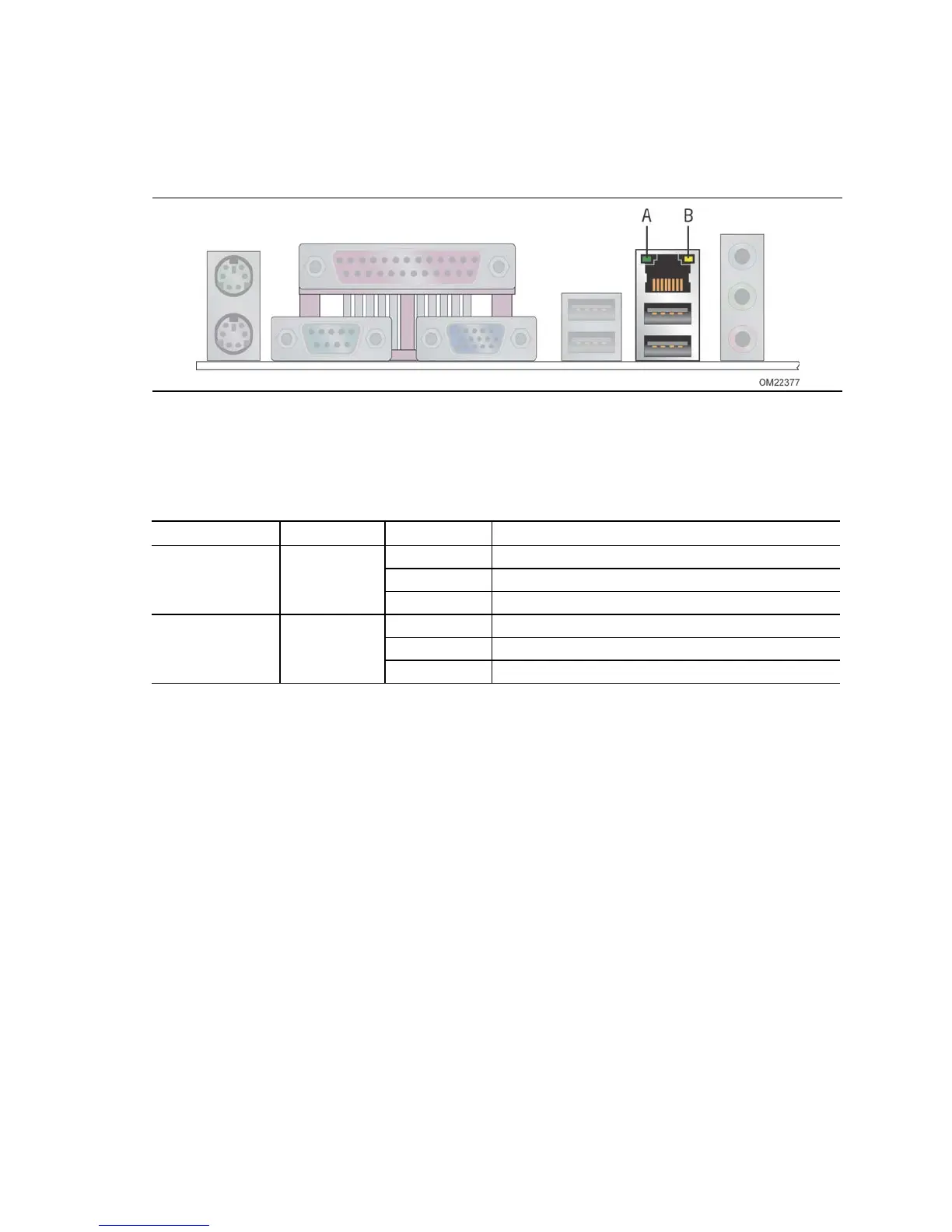

Figure 3. LAN Connector LED Locations
Table 4 describes the LED states when the board is powered up and the Ethernet LAN
subsystem is operating.
Table 4. LAN Connector LED States
LED
LED Color
LED State
Condition
Link/Activity (A) Green
Off LAN link is not established.
On LAN link is established.
Blinking LAN activity is occurring.
Link Speed (B) Green/Yellow
Off 10 Mbits/s data rate is selected or negotiated.
Green 100 Mbits/s data rate is selected or negotiated.
Yellow 1000 Mbits/s data rate is selected or negotiated.

Intel D525MW Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Single-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	4 GB
Supported memory clock speeds	800, 1066 MHz
Product family	Desktop board
Product series	Intel® Desktop Boards with Intel Atom® Processors
Processor socket	-
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
Parallel ports quantity	1
Market segment	Desktop
Power source type	ATX
Motherboard chipset	Intel® NM10 Express
Audio output channels	5.1 channels
Motherboard chipset ID	47610
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Compatible operating systems	Windows XP, Vista, 7
Parallel processing technology support	Not supported
Networking features	10/100/1000
Audio channels	6
Graphics output	VGA
Motherboard ARK ID	48952
Discrete graphics card model	None
Commodity Classification Automated Tracking System (CCATS)	NA
Status	Discontinued
Form factor	Mini-ITX
Last change	63903513
Launch date	Q4'10
USB ports quantity	7
Sustainability certificates	ENERGY STAR
Supported RAID configuration	N/A
Harmonized System (HS) code	8471500150

Weight and Dimensions

Width	- mm
