Intel D525MW User Manual

Technical Reference
51
2.3 BIOS Configuration Jumper Block
CAUTION
Do not move the jumper with the power on. Always turn off the power and unplug the
power cord from the computer before changing a jumper setting. Otherwise, the board
could be damaged.
Figure 14 shows the location of the jumper block. The jumper determines the BIOS
Setup program’s mode. Table 26 lists the jumper settings for the three modes: normal,
configure, and recovery.

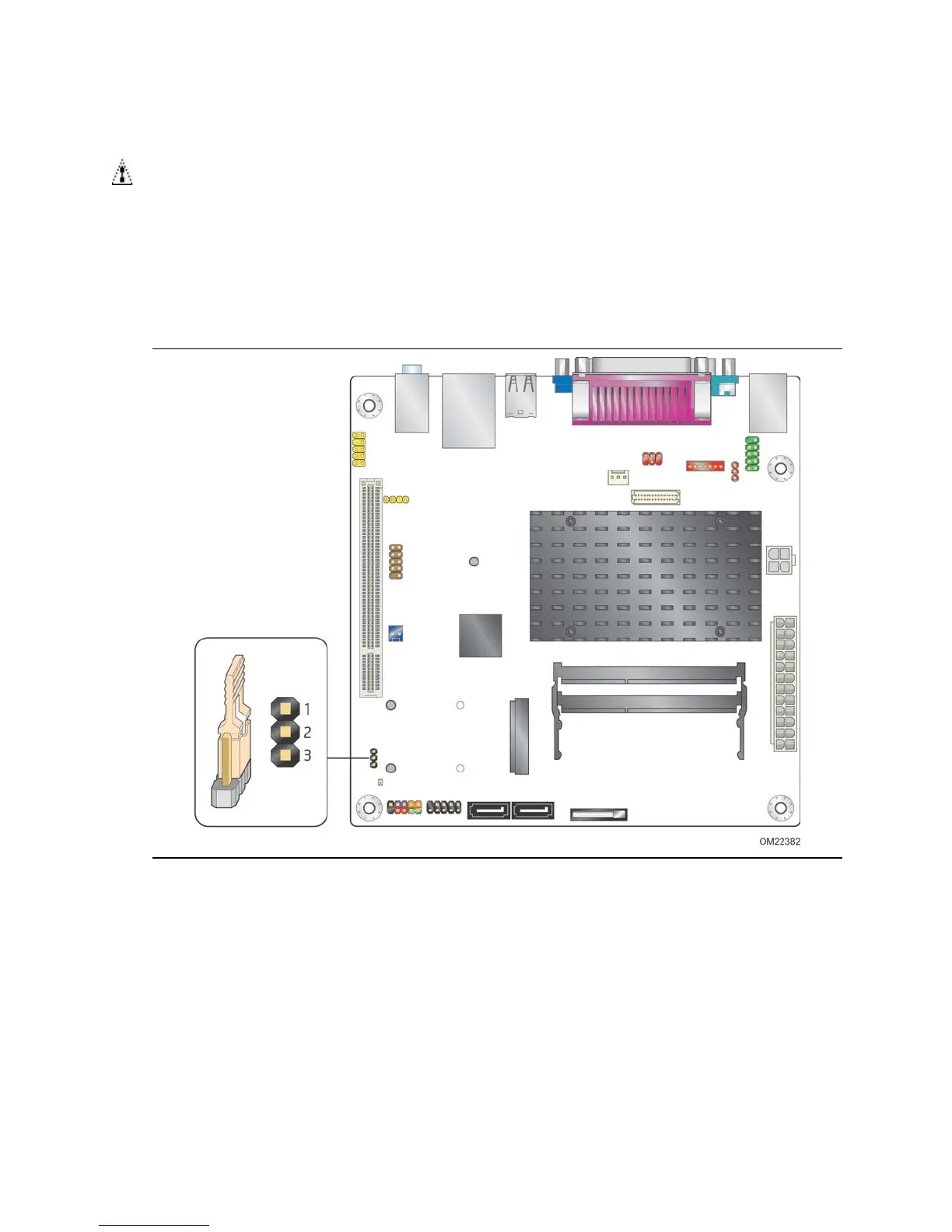

Figure 14. Location of the BIOS Configuration Jumper Block

Intel D525MW Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Single-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	4 GB
Supported memory clock speeds	800, 1066 MHz
Product family	Desktop board
Product series	Intel® Desktop Boards with Intel Atom® Processors
Processor socket	-
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
Parallel ports quantity	1
Market segment	Desktop
Power source type	ATX
Motherboard chipset	Intel® NM10 Express
Audio output channels	5.1 channels
Motherboard chipset ID	47610
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Compatible operating systems	Windows XP, Vista, 7
Parallel processing technology support	Not supported
Networking features	10/100/1000
Audio channels	6
Graphics output	VGA
Motherboard ARK ID	48952
Discrete graphics card model	None
Commodity Classification Automated Tracking System (CCATS)	NA
Status	Discontinued
Form factor	Mini-ITX
Last change	63903513
Launch date	Q4'10
USB ports quantity	7
Sustainability certificates	ENERGY STAR
Supported RAID configuration	N/A
Harmonized System (HS) code	8471500150
