1.10.2 Thermal Monitoring
Figure 5 shows the locations of the thermal sensors and fan header.
Item
Description
A
Chassis fan header
B
Remote thermal sensor
C
Thermal diode, located on the processor die

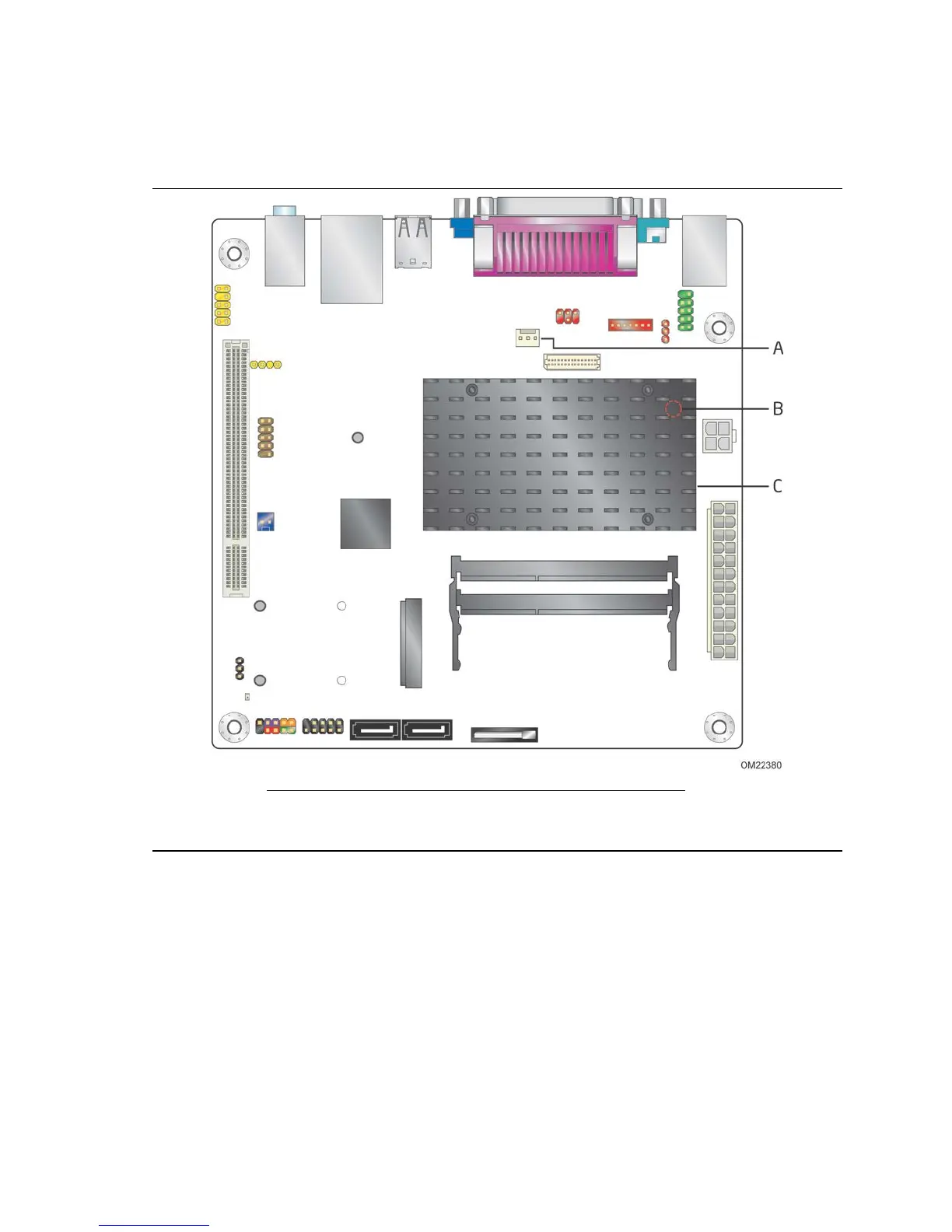

Figure 5. Thermal Sensors and Fan Header
