Intel Desktop Board D525MW and Intel Desktop Board D525MWV Technical Product
Specification
50
2.2.2.5 Front Panel USB Headers

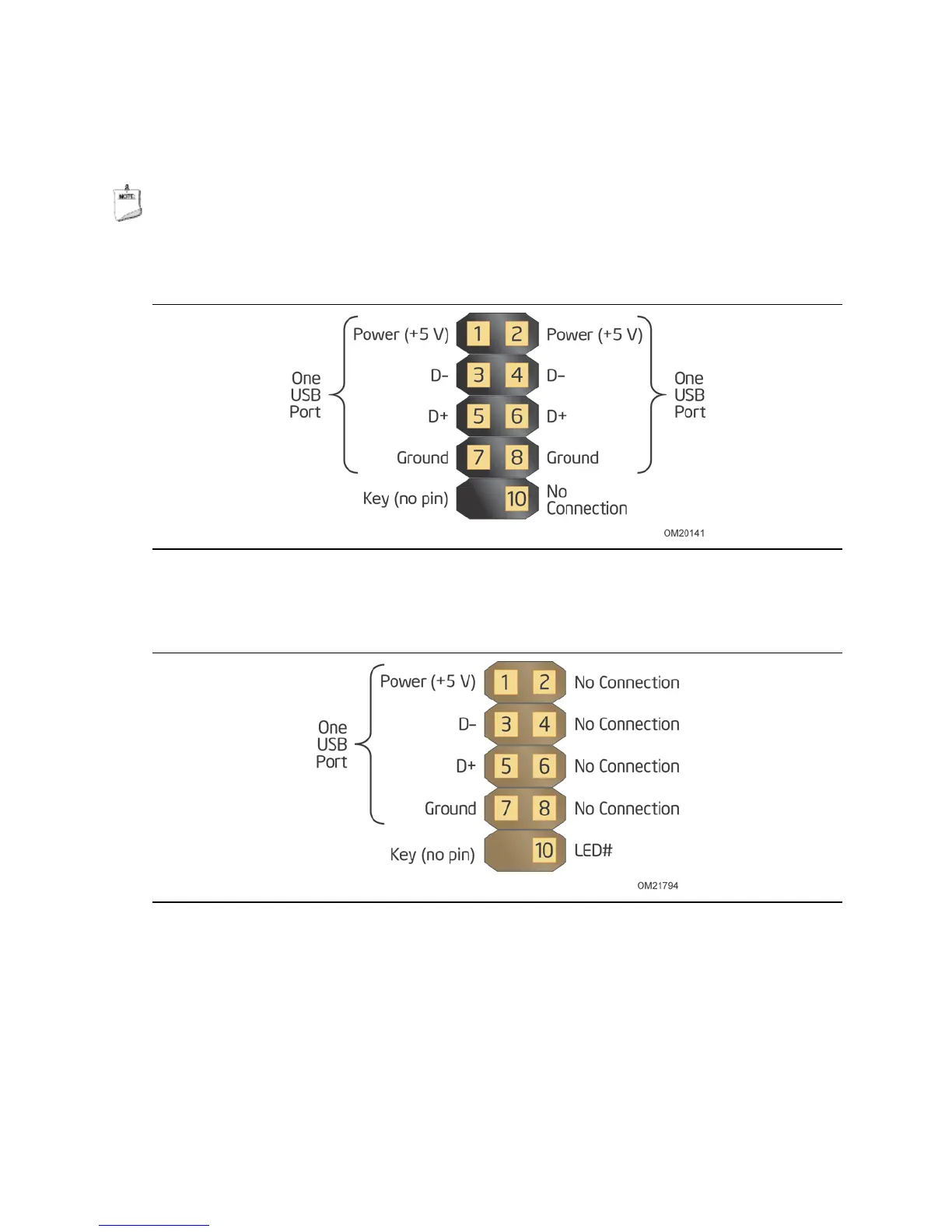

Figure 12 and Figure 13 are connection diagrams for the front panel USB headers.
NOTE
• The +5 VDC power on the USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
Figure 12. Connection Diagram for Front Panel USB Header
Figure 13. Connection Diagram for Front Panel USB Header
with Intel Z- USB Solid-State Drive or Compatible Device Support
