Intel D525MW

Intel Desktop Board D525MW and Intel Desktop Board D525MWV Technical Product
Specification
44

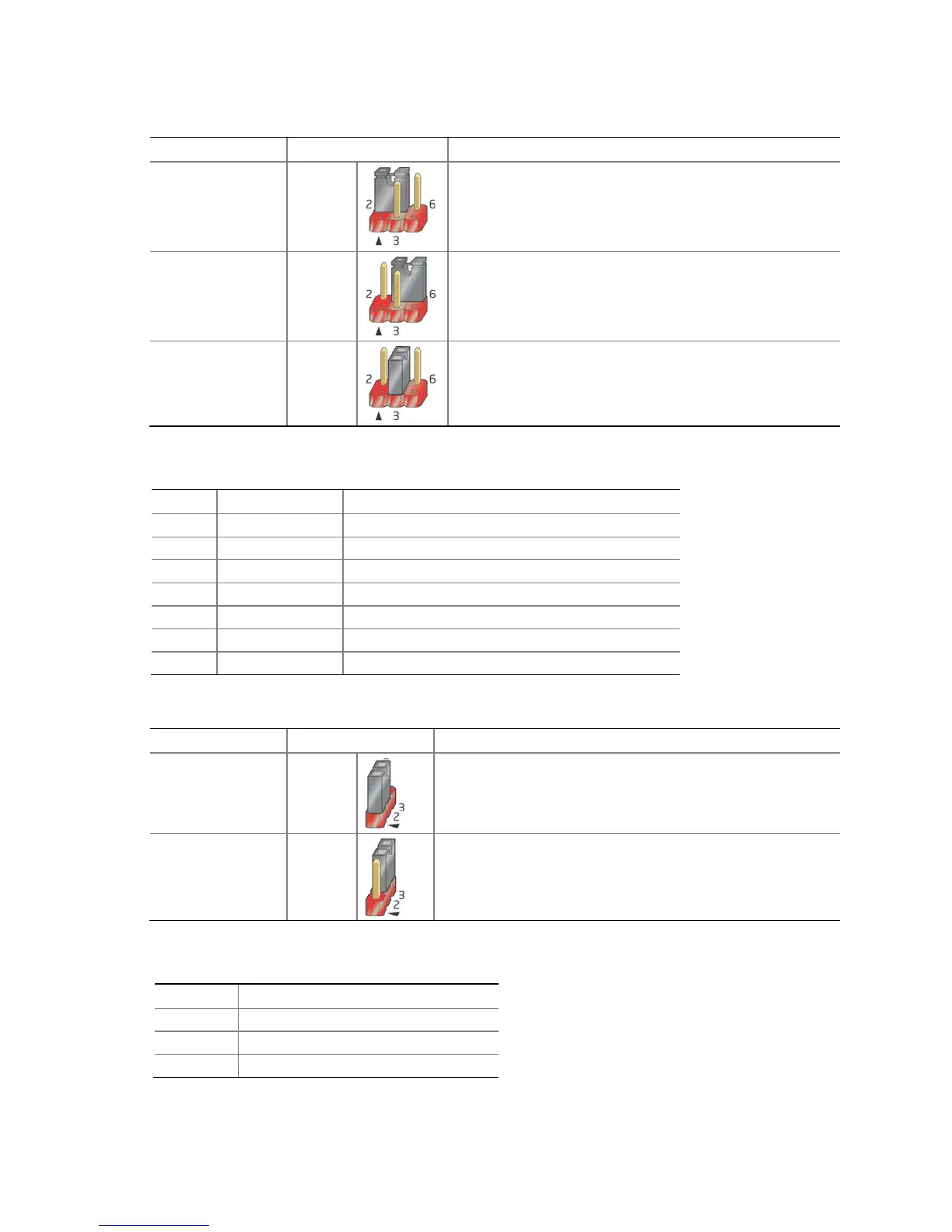

Table 13. LVDS Panel Voltage Selection Jumper (D525MWV only)
Voltage Jumper Setting Configuration
3.3 V 2 and 4
Jumper position for 3.3 V (default)
5 V 6 and 4 Jumper position for 5 V
12 V 3 and 4 Jumper position for 12 V
Table 14. LVDS Inverter Power Connector (D525MWV only)
Pin
Signal Name
Description
1 GND Ground
2 GND Ground
3 5 V/12 V Inverter power
4 5 V/12 V Inverter power
5 INV_RATING Inverter rating
6 BKLT_PWM Backlight PWM
7 BKLT_EN Backlight enable
Table 15. LVDS Inverter Power Voltage Selection Jumper (D525MWV only)
Voltage Jumper Setting Configuration
5 V 1 and 2
Jumper position for 5 V (default)
12 V 3 and 2
Jumper position for 12 V
Table 16. Chassis Fan Header
Pin Signal Name
1 Ground
2 +12 V (PWM controlled pulses)
3 Tach
