Intel D525MW User Manual

Intel Desktop Board D525MW and Intel Desktop Board D525MWV Technical Product
Specification
48
2.2.2.4 Front Panel Header
This section describes the functions of the front panel header. Table 24 lists the signal
names of the front panel header. Figure 11 is a connection diagram for the front panel
header.
Table 24. Front Panel Header
Pin Signal
In/
Out Description Pin Signal
In/
Out Description
Hard Drive Activity LED Power LED
1 HD_PWR Out Hard disk LED
pull-up to +5 V
2 HDR_BLNK_GRN Out Front panel green
LED
3 HDA# Out Hard disk active
LED
4 HDR_BLNK_YEL Out Front panel yellow
LED
Reset Switch On/Off Switch
5 Ground Ground 6 FPBUT_IN In Power switch
7 FP_RESET# In Reset switch 8 Ground Ground
Power Not Connected
9 +5 V Power 10 N/C Not connected

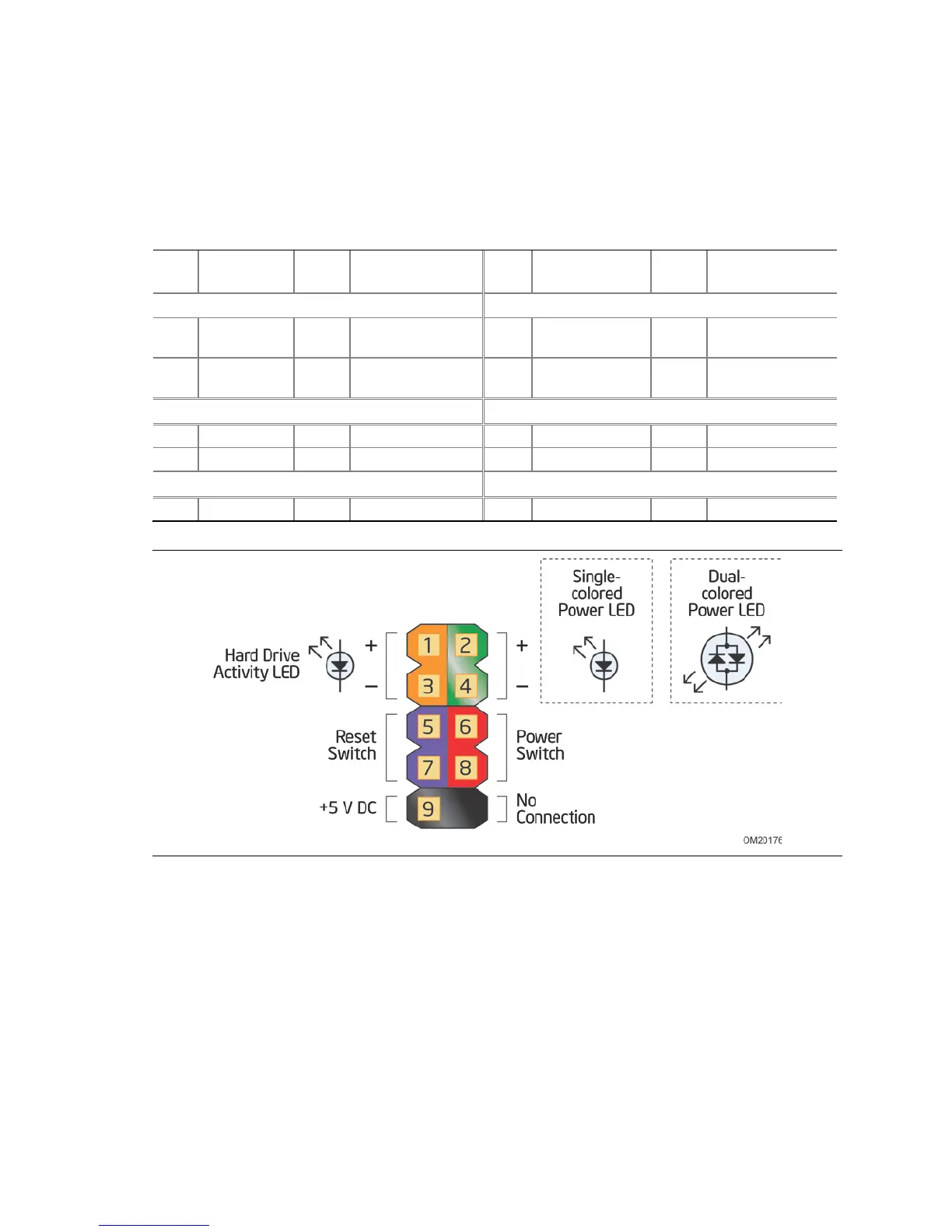

Figure 11. Connection Diagram for Front Panel Header

Intel D525MW Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Single-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	4 GB
Supported memory clock speeds	800, 1066 MHz
Product family	Desktop board
Product series	Intel® Desktop Boards with Intel Atom® Processors
Processor socket	-
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
Parallel ports quantity	1
Market segment	Desktop
Power source type	ATX
Motherboard chipset	Intel® NM10 Express
Audio output channels	5.1 channels
Motherboard chipset ID	47610
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Compatible operating systems	Windows XP, Vista, 7
Parallel processing technology support	Not supported
Networking features	10/100/1000
Audio channels	6
Graphics output	VGA
Motherboard ARK ID	48952
Discrete graphics card model	None
Commodity Classification Automated Tracking System (CCATS)	NA
Status	Discontinued
Form factor	Mini-ITX
Last change	63903513
Launch date	Q4'10
USB ports quantity	7
Sustainability certificates	ENERGY STAR
Supported RAID configuration	N/A
Harmonized System (HS) code	8471500150

Weight and Dimensions

Width	- mm
