Intel D525MW

Intel Desktop Board D525MW and Intel Desktop Board D525MWV Technical Product
Specification
36
The amount of installed memory that can be used will vary based on add-in cards and
BIOS settings. Figure 7 shows a schematic of the system memory map. All installed
system memory can be used when there is no overlap of system addresses.

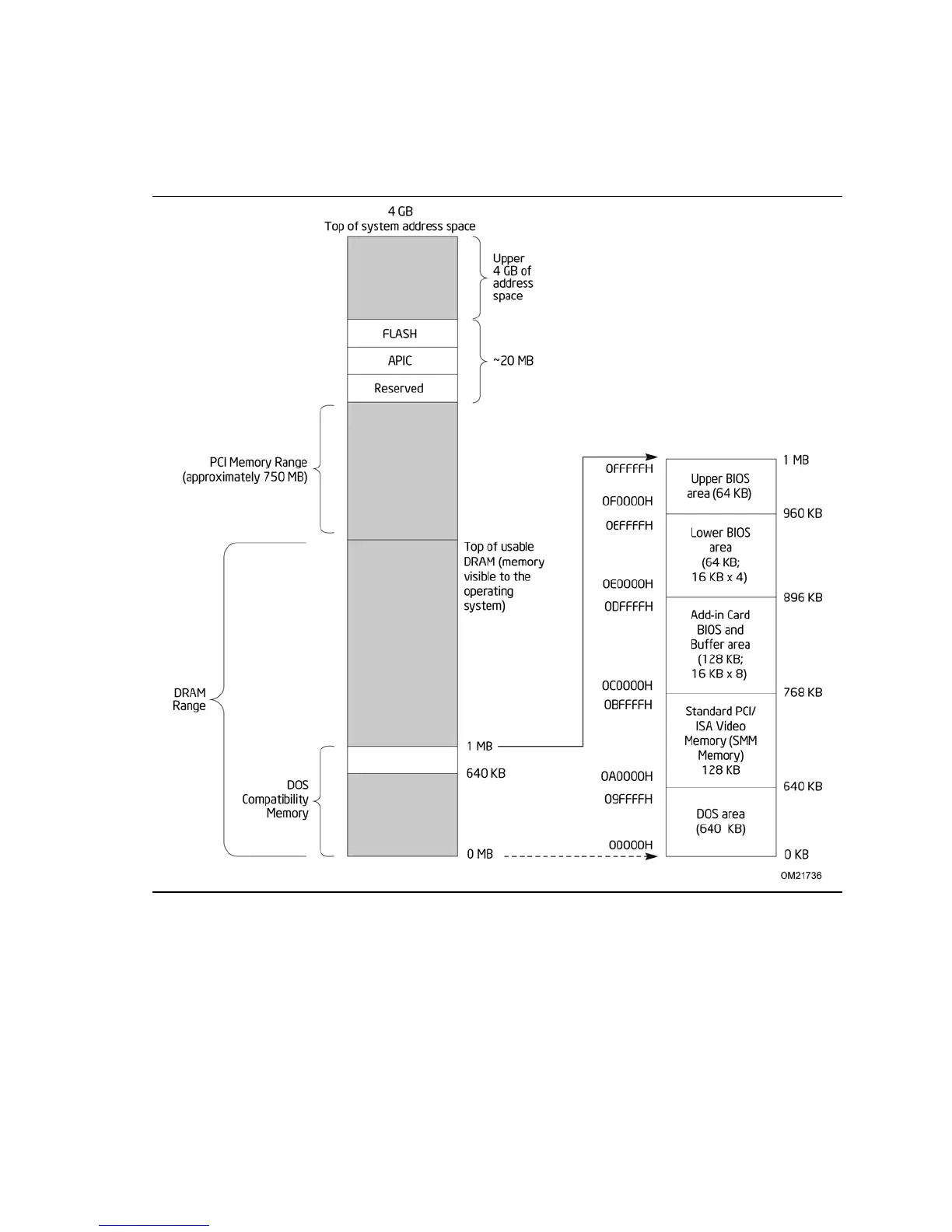

Figure 7. Detailed System Memory Address Map
