Intel D525MW

Intel Desktop Board D525MW and Intel Desktop Board D525MWV Technical Product
Specification
58

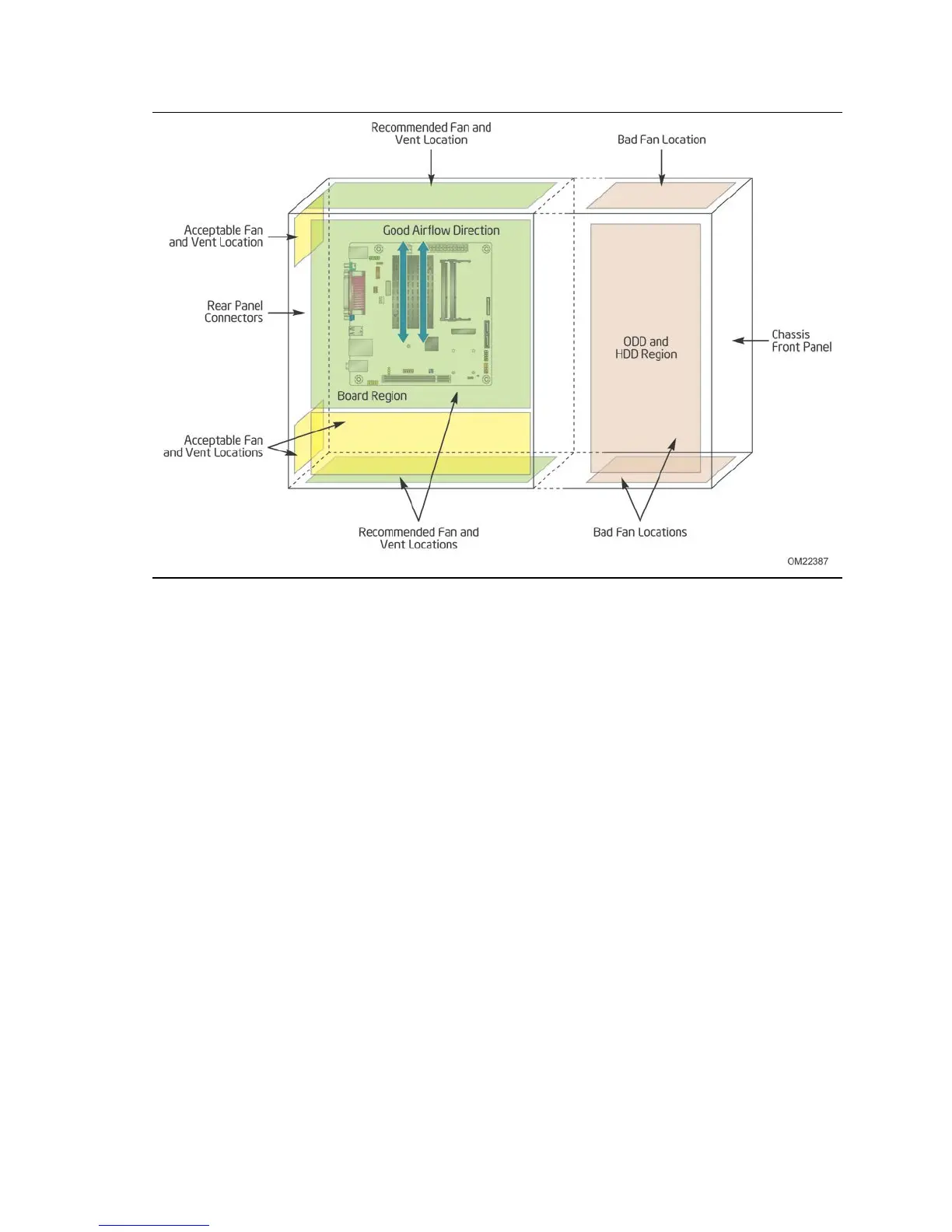

Figure 17. Fan Location Guide for Chassis Selection
(Chassis Orientation is Not Restricted)
For all chassis configurations, the heatsink performance parameter, Ψ
JA
should be less
than 3.85 °C/W. The detail thermal measurement metrology is described in the
TMSDG. For chassis that fail to meet the thermal specifications guideline highlighted
above, an actively cooled heatsink solution should be used.
