Installing and Removing the Desktop Board
CAUTION
Only qualified technical personnel should do this procedure. Disconnect the computer
from its power source before performing the procedures described here. Failure to
disconnect the power before you open the computer can result in personal injury or
equipment damage.
Do not lift or handle the desktop board by the chipset heat sink. Handling may damage
the thermal interface material that resides between the heat sink and the chipset
silicon.
Refer to your chassis manual for instructions on installing and removing the desktop
board.
Figure 5 shows the location of the moun
ting screw holes for Desktop Board
D945GCNL.

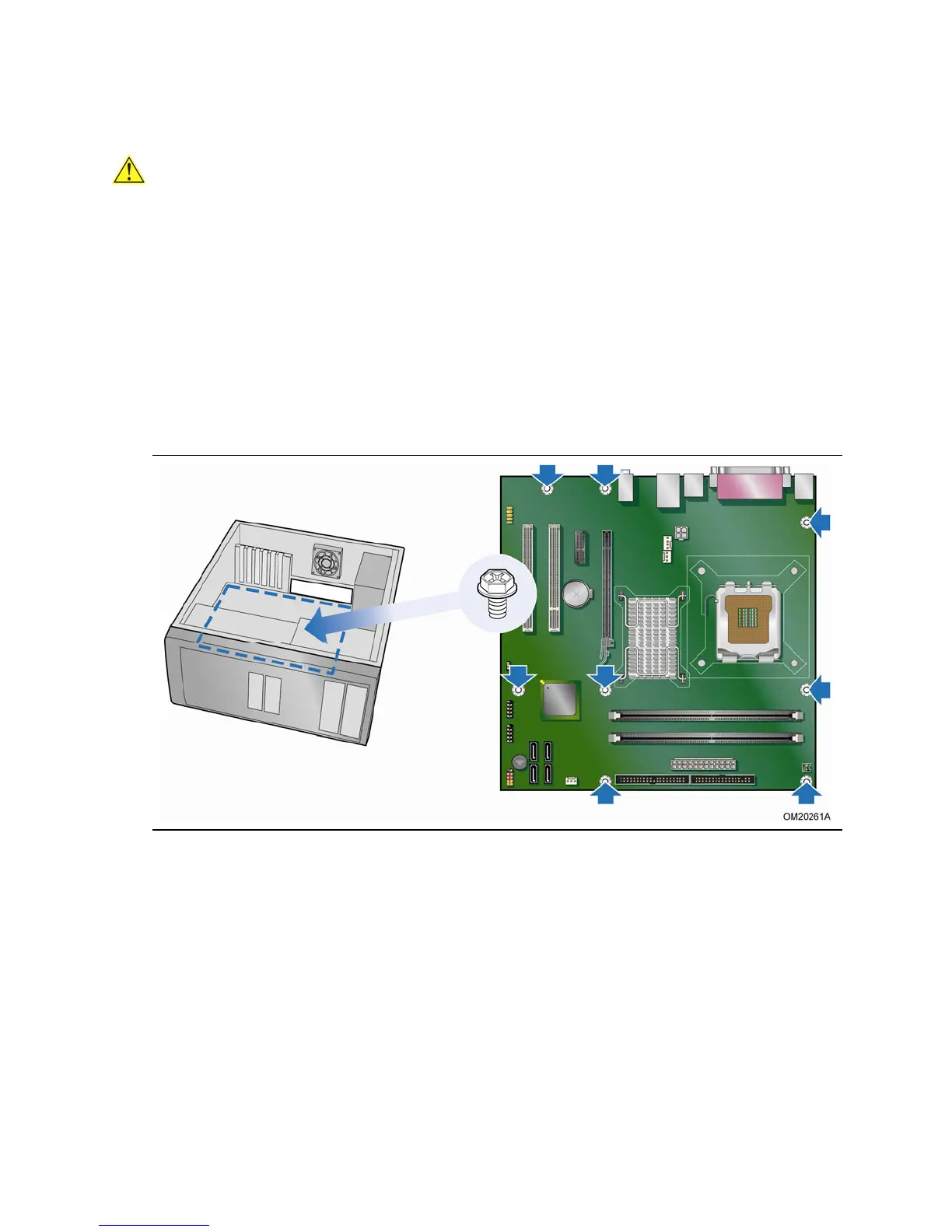

Figure 5. Desktop Board D945GCNL Mounting Screw Hole Locations

Intel D945GCNL - Desktop Board Motherboard Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 775
Memory Type	DDR2
Maximum Memory	4 GB
Graphics	Intel Graphics Media Accelerator 950
USB Ports	8 x USB 2.0
Processor Support	Intel Pentium D, Pentium 4, Celeron D
Audio	Realtek ALC888
LAN	10/100 Ethernet
Expansion Slots	1 x PCIe x16, 2 x PCI
Chipset	Intel 945GC Express Chipset
