Installing and Replacing Desktop Board Components
39
Connecting the Serial ATA (SATA) Cable
The SATA cable supports the Serial ATA protocol and connects a single drive to the
desktop board. For correct cable function:
1. Observe the precautions in "Before You Begin" on page 23.
2. Attach the locking cable end to
the connector on the board (Figure 19, A).
3. Attach the cable end without the lock to
the drive (Figure 19, B).

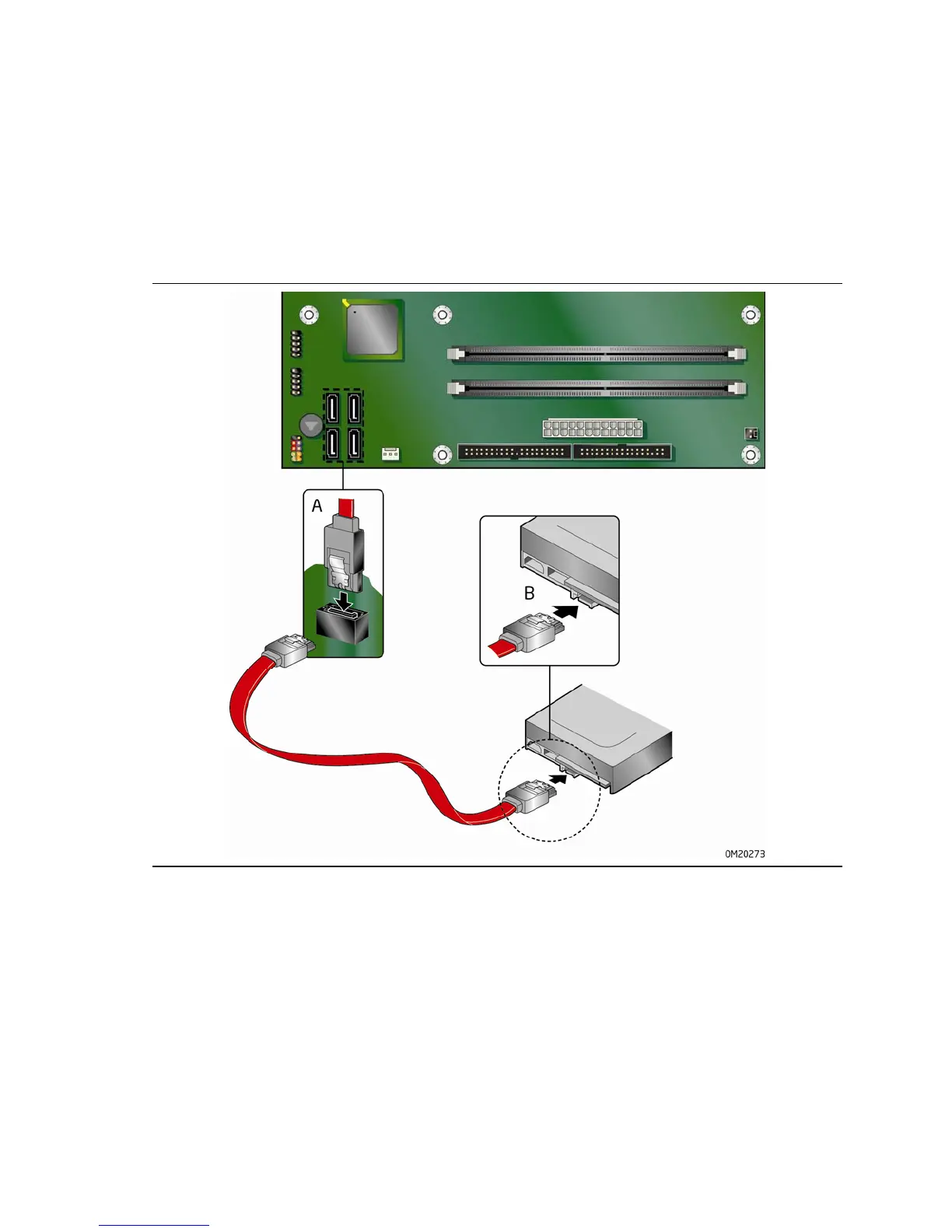

Figure 19. Connecting the Serial ATA Cable

Intel D945GCNL - Desktop Board Motherboard Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 775
Memory Type	DDR2
Maximum Memory	4 GB
Graphics	Intel Graphics Media Accelerator 950
USB Ports	8 x USB 2.0
Processor Support	Intel Pentium D, Pentium 4, Celeron D
Audio	Realtek ALC888
LAN	10/100 Ethernet
Expansion Slots	1 x PCIe x16, 2 x PCI
Chipset	Intel 945GC Express Chipset
