Intel Desktop Board D945GCNL Product Guide
46
Other Connectors and Headers

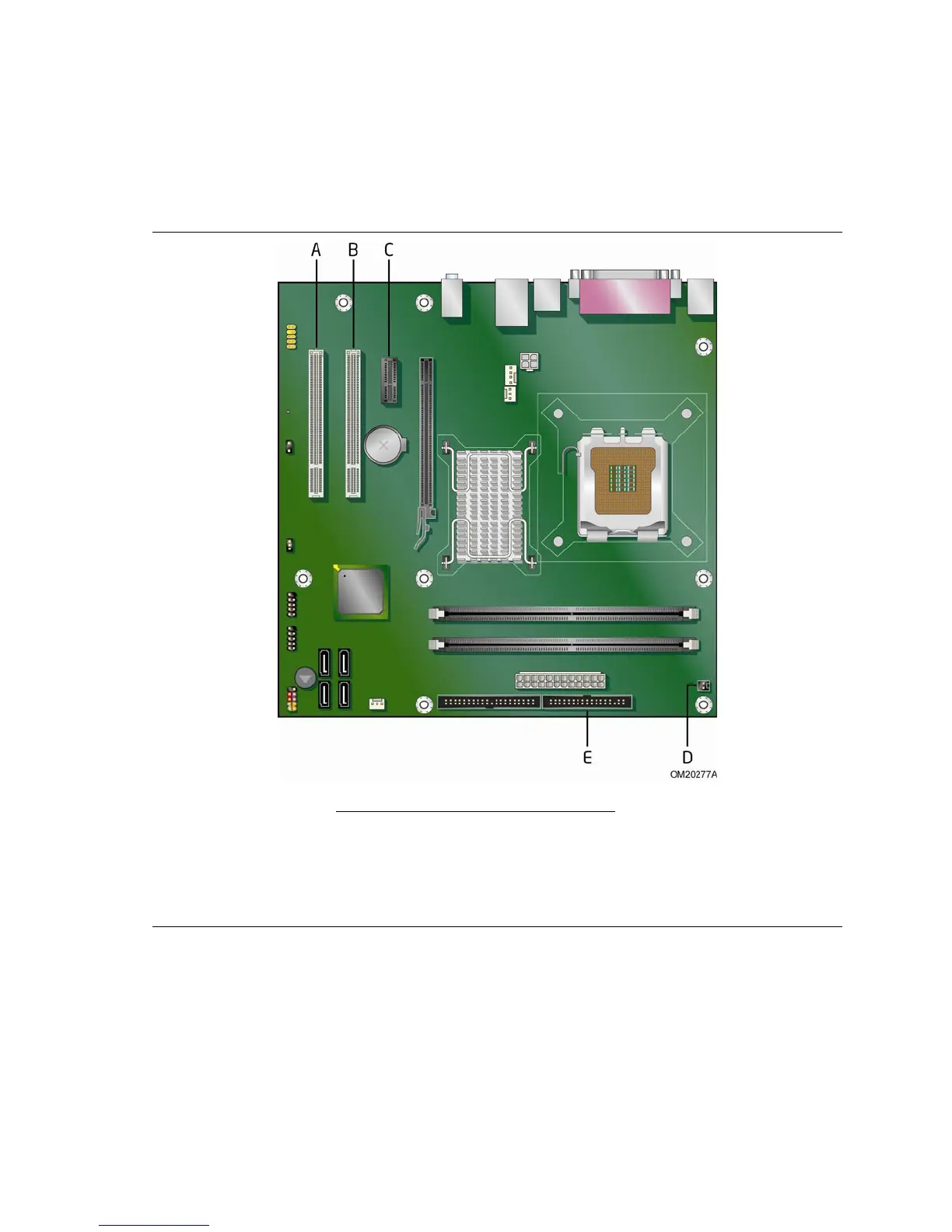

Figure 24 shows the location of the other connectors and headers on the desktop
board.
Item Description
A PCI bus connector 2
B PCI bus connector 1
C PCI Express x1 connector
D Chassis intrusion header
E Diskette drive connector
Figure 24. Location of the Other Connectors and Headers
