Intel Desktop Board D945GCNL Product Guide
40
Connecting to Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page 23. Figure 20 shows the location of the internal
headers.
Item Description
A Front panel audio
B USB 2.0
C Front panel
D Alternate front panel power LED

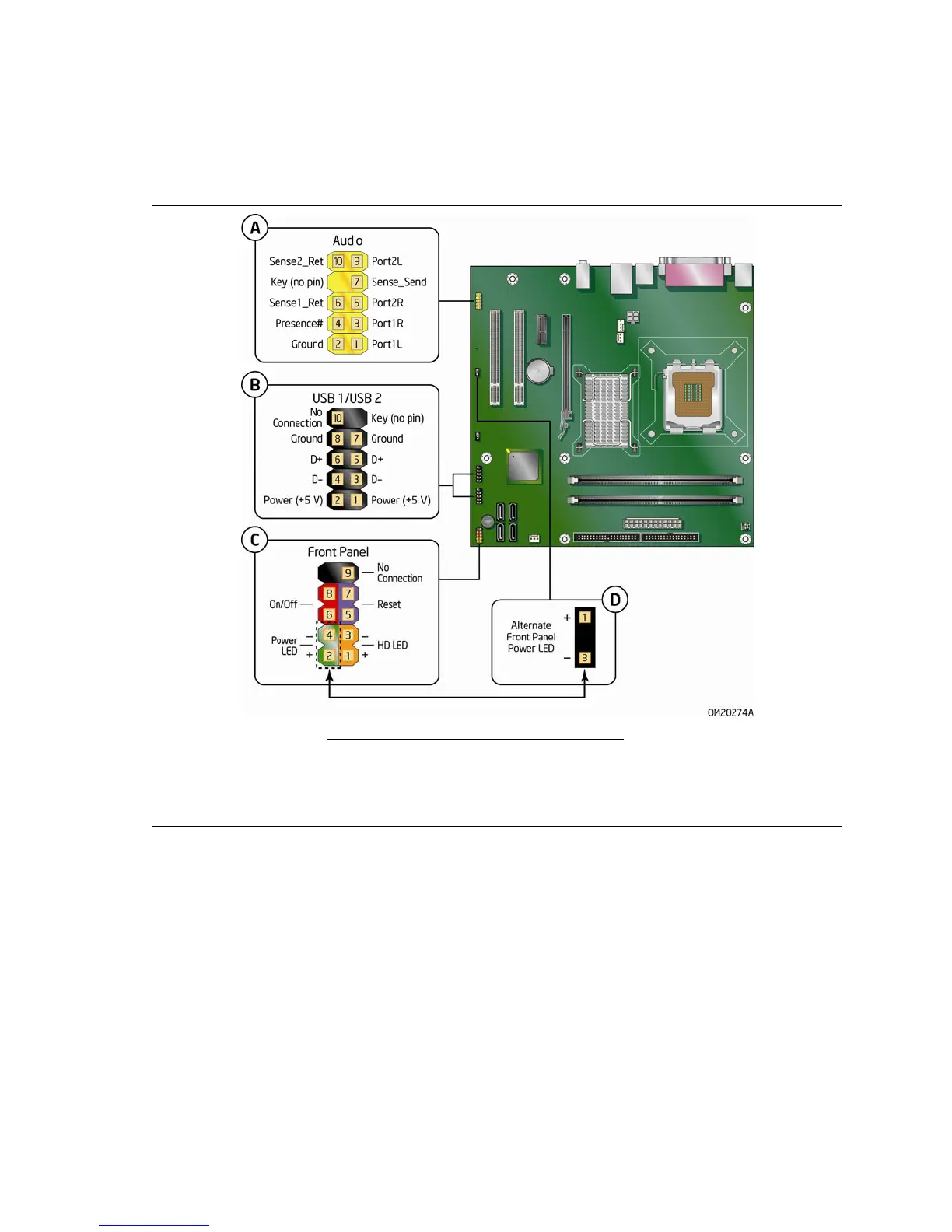

Figure 20. Internal Headers
