Installing and Replacing Desktop Board Components
29
5. Remove the processor from the protective processor cover. Hold the processor
only at the edges, being careful not to touch the bottom of the processor (see
Figure 9). Do not discard the
protective processor cover. Always replace the
processor cover if the processor is removed from the socket.

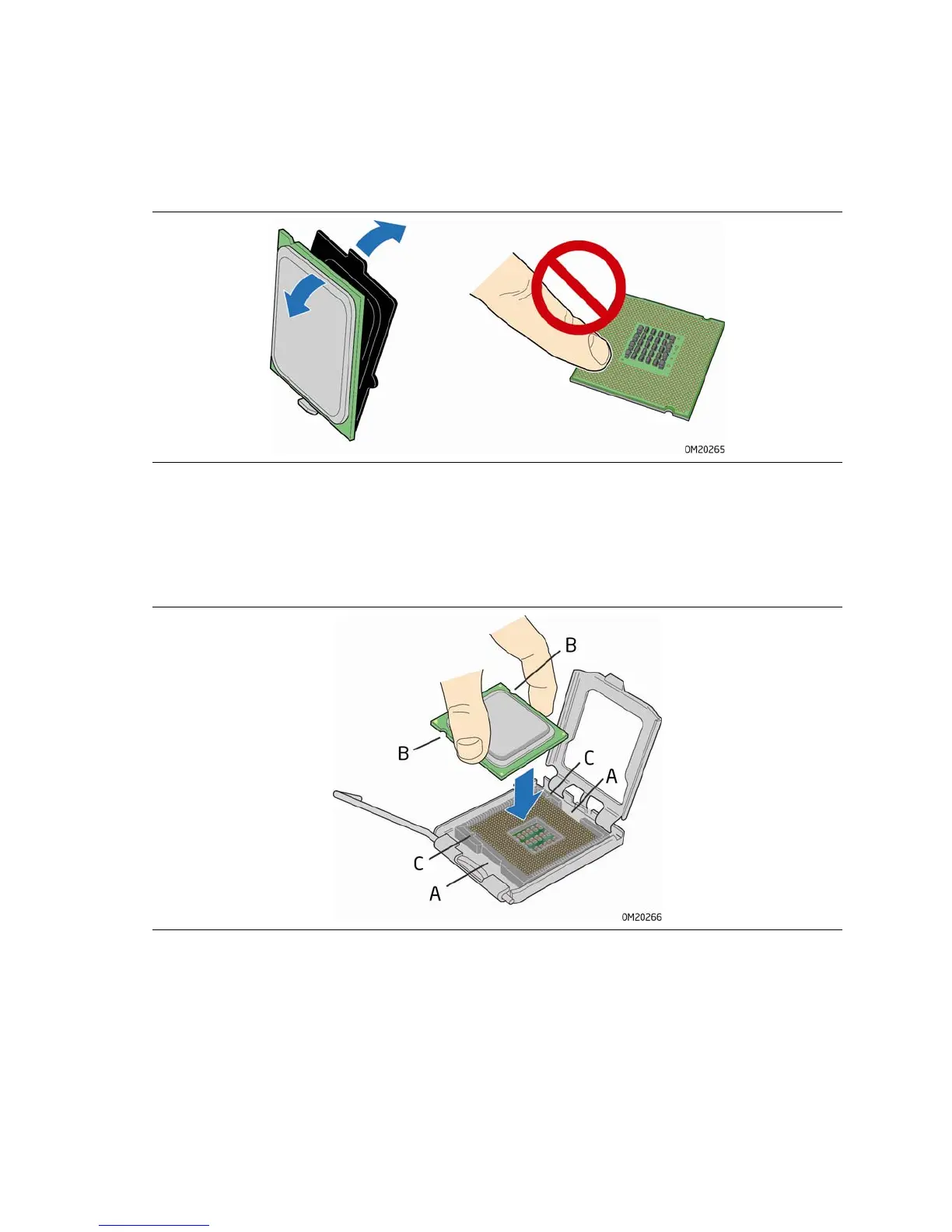

Figure 9. Remove the Processor from the Protective Processor Cover
6. Hold the processor with your thumb and index fingers oriented as shown in
Figure 10. Make sure fingers align to the
socket cutouts (Figure 10, A). Align
notches (Figure 10, B) with the socket (Figure 10, C). Lower the processor straight
dow
n without tilting or sliding the processor in the socket.
Figure 10. Install the Processor

Intel D945GCNL - Desktop Board Motherboard Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 775
Memory Type	DDR2
Maximum Memory	4 GB
Graphics	Intel Graphics Media Accelerator 950
USB Ports	8 x USB 2.0
Processor Support	Intel Pentium D, Pentium 4, Celeron D
Audio	Realtek ALC888
LAN	10/100 Ethernet
Expansion Slots	1 x PCIe x16, 2 x PCI
Chipset	Intel 945GC Express Chipset
