Installing and Replacing Desktop Board Components
33

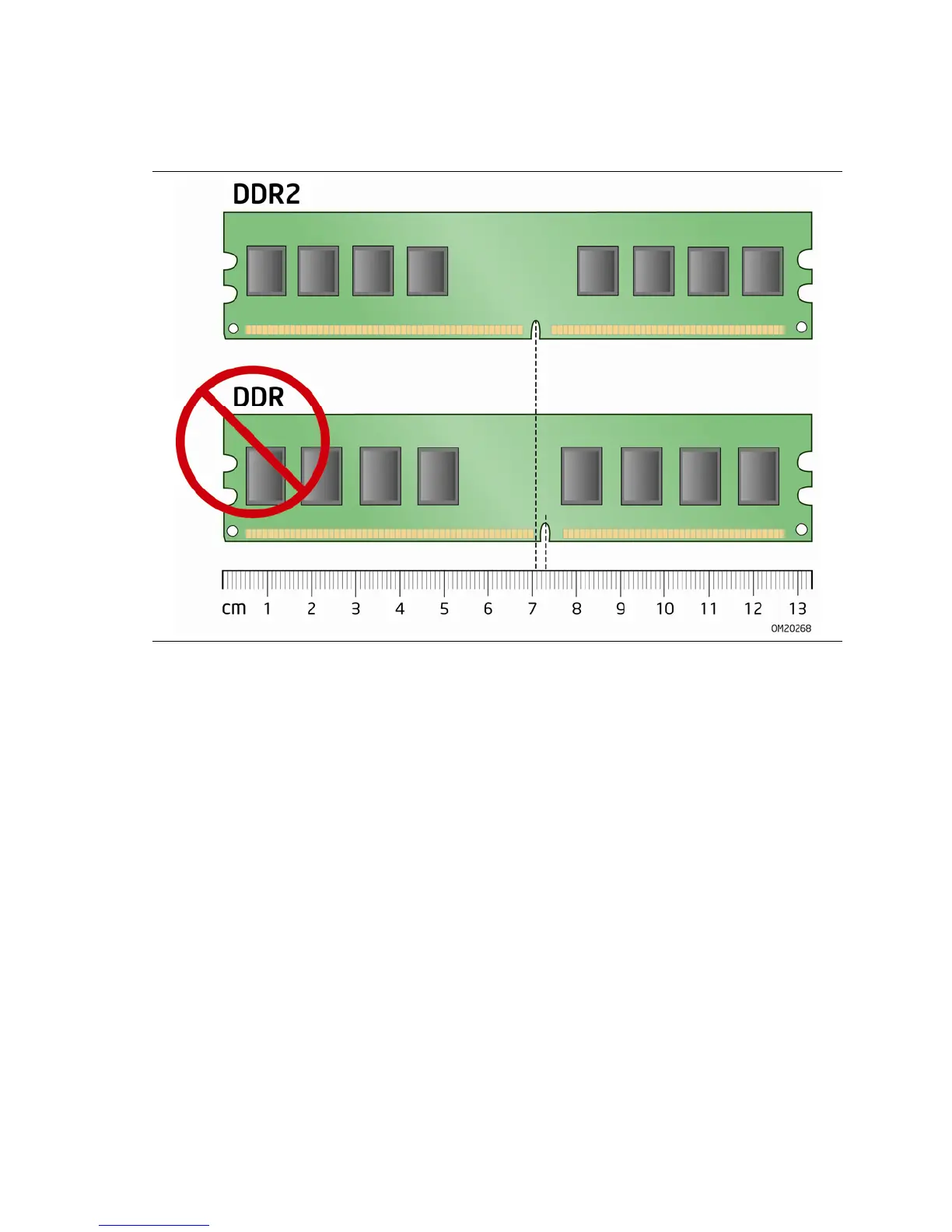

To make sure you have the correct DIMM, place it on the illustration of the DDR2
DIMM in Figure 14. All the notches should match with the DDR2 DIMM.
Figure 14. Use DDR2 DIMMs

Intel D945GCNL - Desktop Board Motherboard Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 775
Memory Type	DDR2
Maximum Memory	4 GB
Graphics	Intel Graphics Media Accelerator 950
USB Ports	8 x USB 2.0
Processor Support	Intel Pentium D, Pentium 4, Celeron D
Audio	Realtek ALC888
LAN	10/100 Ethernet
Expansion Slots	1 x PCIe x16, 2 x PCI
Chipset	Intel 945GC Express Chipset
