Intel D945GCNL - Desktop Board Motherboard User Manual

Installing and Replacing Desktop Board Components
27
Installing and Removing a Processor
Instructions on how to install the processor on the desktop board are given below.
Installing a Processor
CAUTION
Before installing or removing the processor, make sure the AC power has been
removed by unplugging the power cord from the computer; the standby power LED
should not be lit (see Figure 3 on page 21). Failure to do so could damage the
processor and the boar
d.
To install a processor, follow these instructions:
1. Observe the precautions in "Before You Begin" on page 23.
2. Open the so
cket lever by pushing the lever down and away from the socket
(Figure 6, A and B).

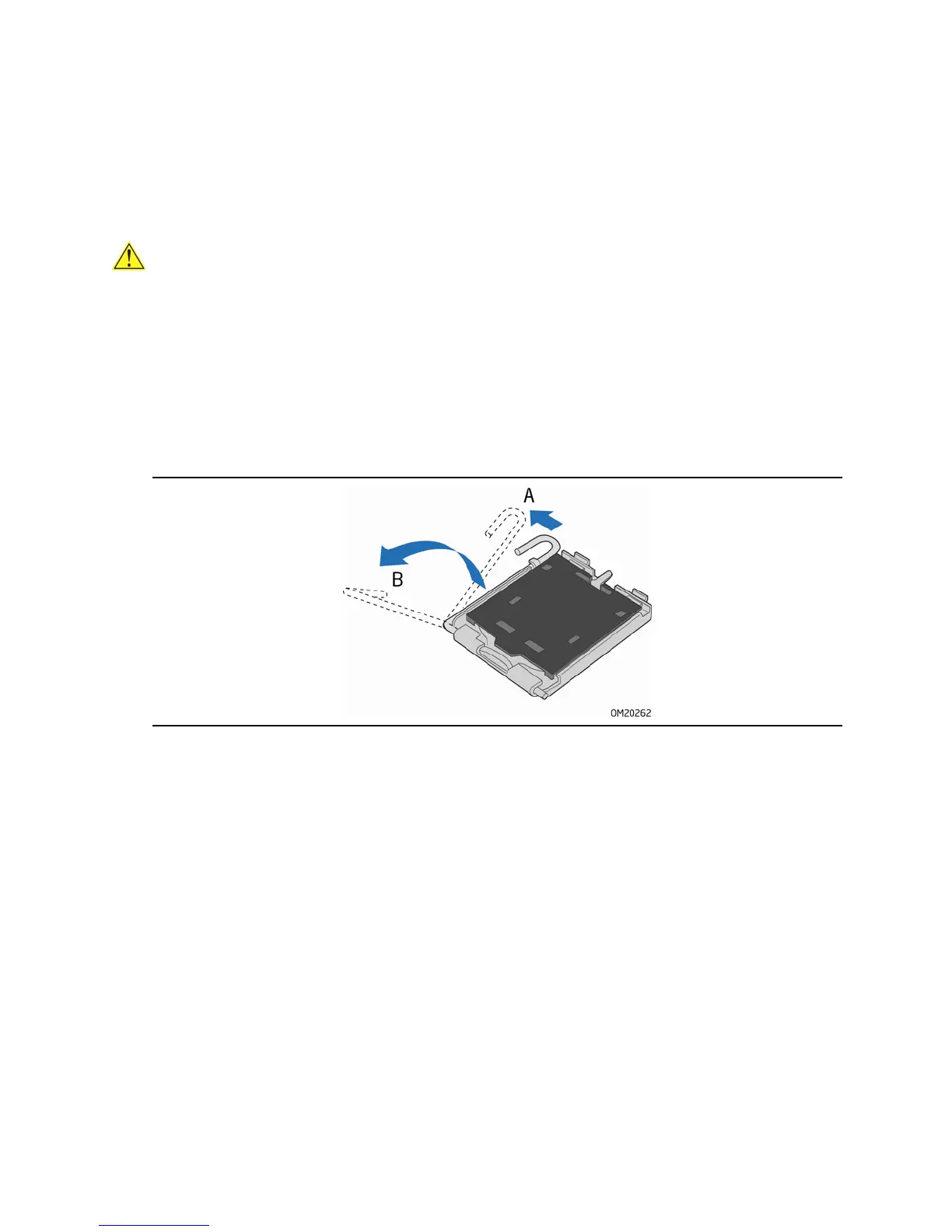

Figure 6. Lift Socket Lever

Intel D945GCNL - Desktop Board Motherboard Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 775
Memory Type	DDR2
Maximum Memory	4 GB
Graphics	Intel Graphics Media Accelerator 950
USB Ports	8 x USB 2.0
Processor Support	Intel Pentium D, Pentium 4, Celeron D
Audio	Realtek ALC888
LAN	10/100 Ethernet
Expansion Slots	1 x PCIe x16, 2 x PCI
Chipset	Intel 945GC Express Chipset
