Intel® Server RAID Controller U3-1 User’s Manual Rev 1.0 4-9
Using the Storage Console
Note: You may see the number 2147483648 when viewing attribute information with DMI Explorer.
This number is equivalent to 80000000 hex, which indicates that the item is unsupported.

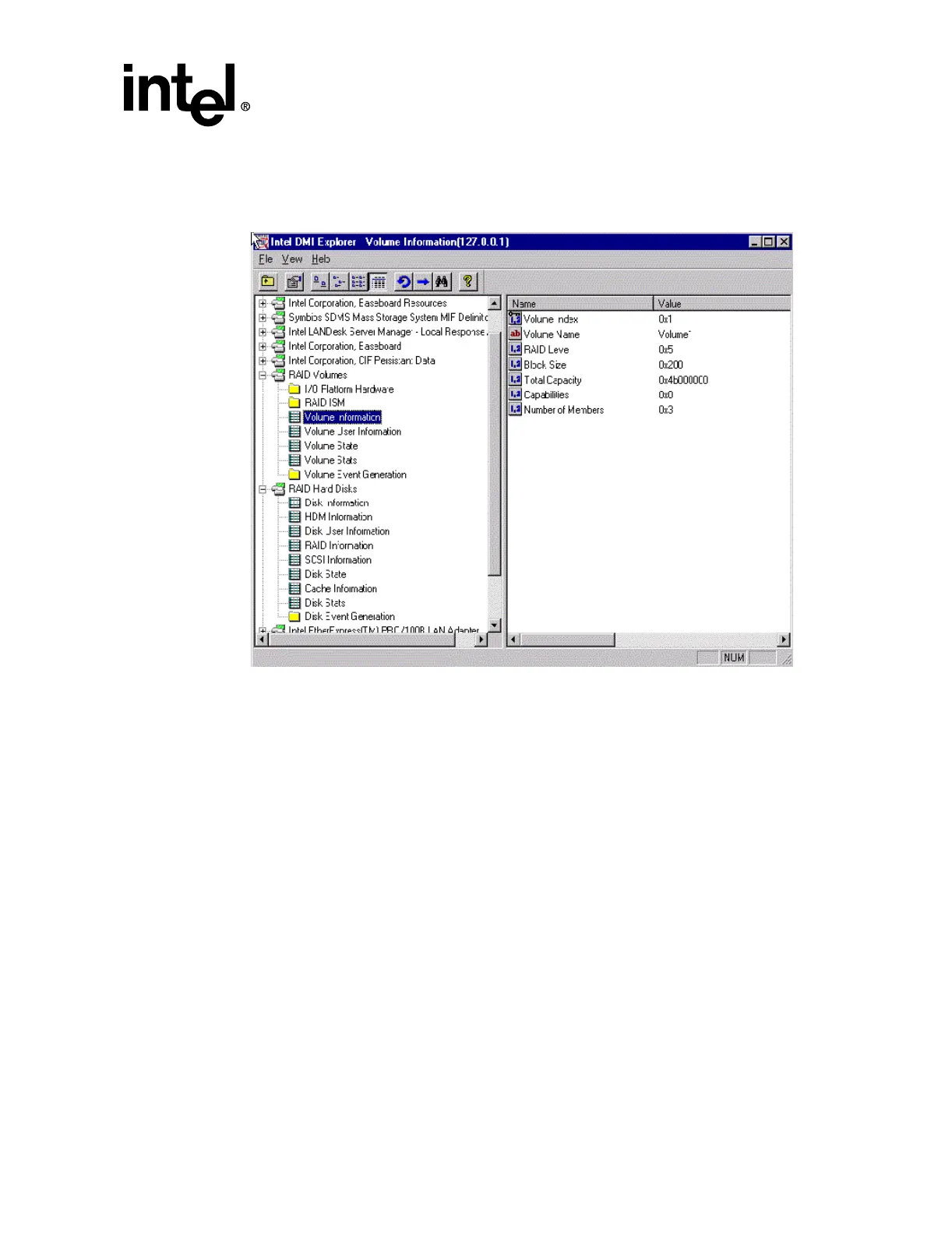

Figure 4-4. Browsing SRCU31 DMI Information
Refreshing Attributes
Attribute values change from time to time. Whenever you select a group or display a new row in a
table, DMI Explorer displays a snapshot of the data that is accurate at that time.
You may want to refresh the information manually if you suspect that it might have changed. To
refresh the data click View/Refresh.
Viewing Properties
You can use DMI Explorer to view properties for the computer, components, groups, or attributes.
To display properties:
1. Select an item.
2. Click Properties.
Setting the View Options
DMI Explorer offers several different view options.
To turn the toolbar on or off click View/Toolbar.
To turn the status bar on or off click View/Status Bar.
