4-14 Intel® Server RAID Controller U3-1 User’s Manual Rev 1.0
Using the Storage Console

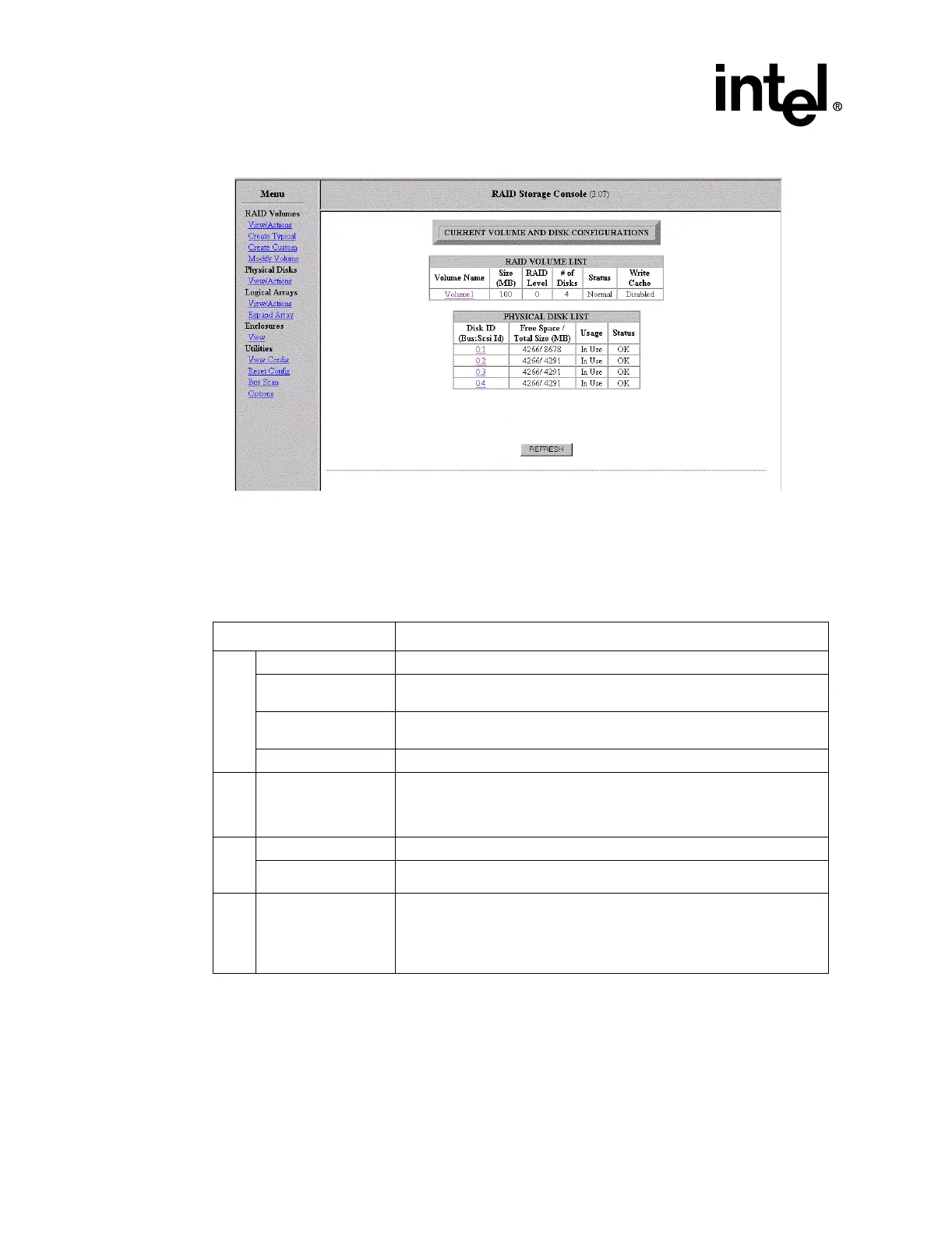

Figure 4-5. Current Configuration with Volume Created
4.3.4.1 The Menu
The Menu (located in the left panel of the Storage Console) enables the user to execute actions by
clicking on the appropriate link. See Table 4-4 for a summary of Menu functions.
Table 4-4. Intel® Integrated RAID Storage Console Menu
Category Description
RAID Volumes
View/Actions View volume information or take a volume action.
Create Typical
Create a typical RAID volume (the Wizard suggests a configuration) (modify
volume name and size only).
Create Custom
Create a customized RAID volume (RAID level, volume name, strip size and
the number of disks).
Modify Volume Modify a volume (RAID level and strip size only).
Physical
Disks
View/Actions View individual disk configurations or take a disk action.
Logical
Arrays
View/Actions View all logical arrays.
Expand Array Expand the capacity of an array (by adding new drives).
Enclosures
View
This option is available if your system has an intelligent drive enclosure that
supports SAF-TE.
