Intel® Server RAID Controller U3-1 User’s Manual Rev 1.0 4-21
Using the Storage Console

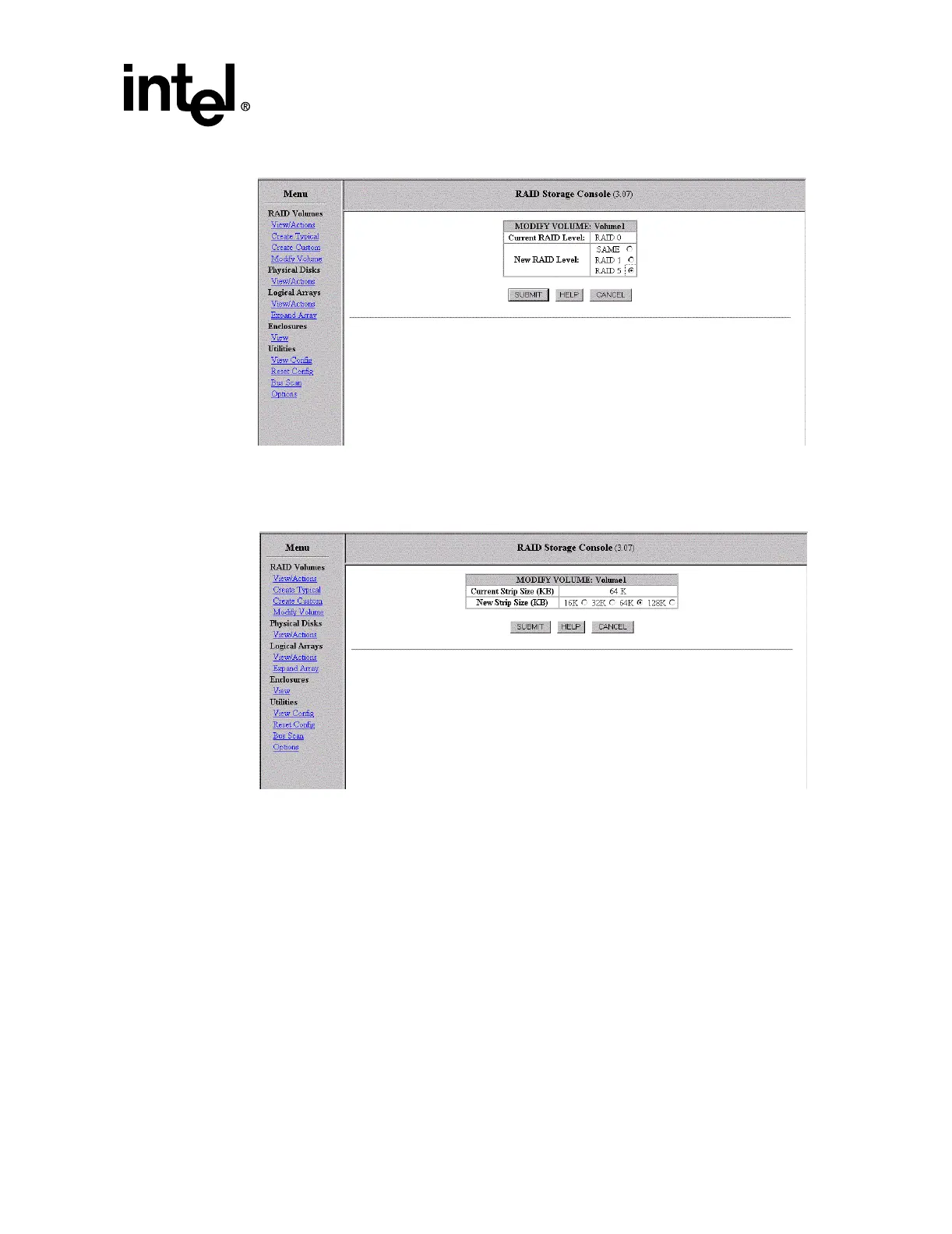

Figure 4-14. Modify Volume RAID Level
4. Select the appropriate strip size (16, 32, 64 and 128K) and click on Submit. The modify
volume confirmation screen appears. See Figure 4-15.
Figure 4-15. Modify Volume Strip Size
5. Click on Yes to implement the changes to the volume.
4.3.6 Physical Disks
4.3.6.1 View/Actions
Use the View/Actions feature to view physical disk information. See Figure 4-16. View individual
disk configurations (by clicking on a Disk ID) or take a disk action. Table 4-6 shows the possible
usage states a disk may be in. Table 4-7 shows the actions that are available for each usage state.
