Intel® Server RAID Controller U3-1 User’s Manual Rev 1.0 4-25
Using the Storage Console

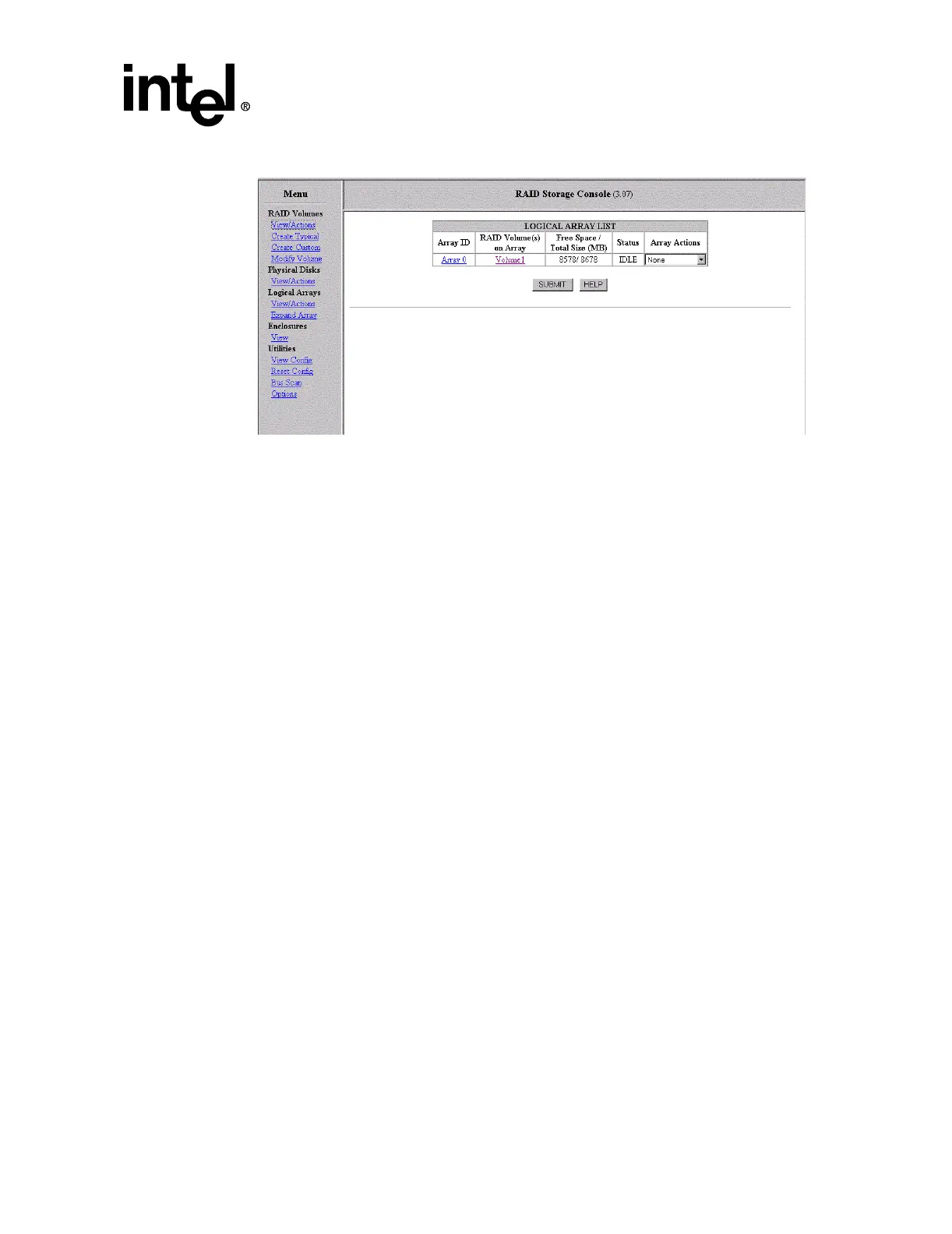

Figure 4-18. Logical Array List
4.3.7.2 Expand Array
Use this feature to expand an array, for example, when a drive is added to your system. This feature
is active when at least one drive is available, for example, when the drive is not offline, marked as
a spare, or part of another array.
Note: To expand an array you must first bring the available drive online. For example, in the Physical
Disk List, mark the drive as Online and submit.
To expand an array:
1. Click on Expand Array. If there is an available disk, then the Add Disks to Array screen
appears. See Figure 4-19.
2. Select the target array by clicking on the appropriate radial button. Select the target disk by
clicking on the appropriate check box.
3. Click the Expand Array button.
