Wireless device Receiver connection
The AMT 2018 E/EG, AMT 2018 E 3G and AMT 2118 EG centers are compatible with
the XAR 4000 receiver, operating only in OOK modulation (unsupervised devices).
Note:we do not guarantee the operation of XAR 4000 Smart with centers or wireless
sensors not manufactured by Intelbras. As for remote controls from other manufactu-
rers, they must have the following features to work with XAR 4000 Smart:
1. Operate in OOK modulation;
2. Operate on 433.92 Mhz frequency;
3. Transmission rate 1.886 Kbps.
Connection to the T1/T2 bus

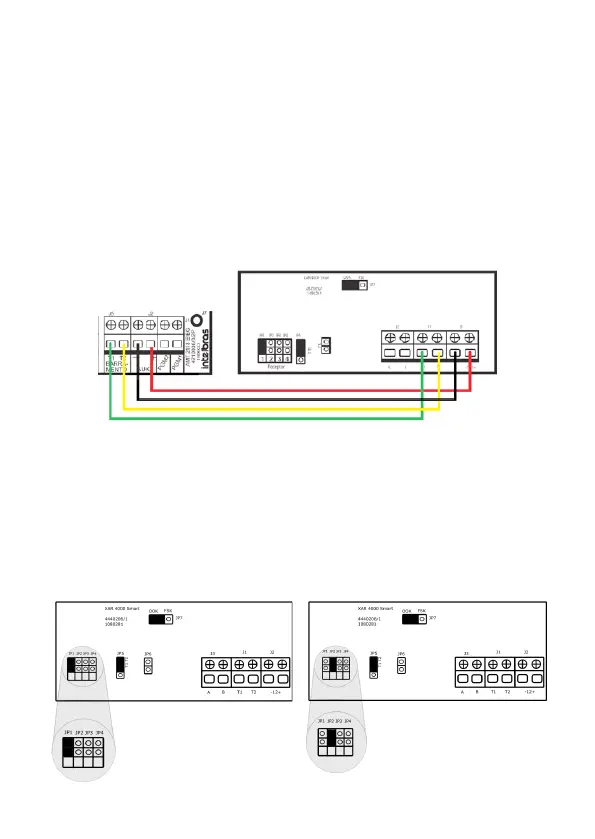

1. Connect the receiver’s T1 terminal to the center’s T1 input and the receiver’s T2
terminal to the center’s T2 input. Use 4 × 26 AWG or higher cable with a maxi-
mum length of 100 m and a total resistance of up to 40 ;
2. Power is connected to the auxiliary output of the alarm center;
3. For addressing the XAR 4000 SMART, there are four jumpers: JP1, JP2, JP3, and
JP4. All receivers leave the factory with the jumper in position JP1. If you are using
more than one device, the second one should have the jumper in the JP2 position,
and so on;
