Set Tracking Information of Satellite [Primary]
Command Buttons
•EditSatelliteInformation–Tochangefrequencyinformationoftheantenna.
•SatelliteInformation–Satelliteinformationconsistsoffrequency,symbolandNID
(Network ID) of a transponder in tracking satellite. There are four groups of satellite
information. ‘Vertical/RHCP’ is applied when IRD supplies 13V. ‘Horizontal/LHCP’ is
applied when IRD supplies 18V. ‘LOW’ is applied when DiSEqC signal is not
detected from IRD. ‘HIGH’ is applied when DiSEqC signal is detected from IRD.
If you select ‘Not Use’ or ‘Change Satellite’, two ‘HIGH’ groups are inactivated.
If you select ‘Change Band’, two ‘HIGH’ groups are activated and you can modify
satellite information which is applied when DiSEqC signal is detected from IRD.
After modifying information, press ‘Edit Satellite Information’ button, then new
information is updated in the antenna.
•Pol&BandControl
The “Pol” controls 13V (Vertical/RHCP band) and 18V (Horizontal/ LHCP band). The
“Band” controls DiSEqC 0KHz tone (Low band) and 22KHz tone (High band).

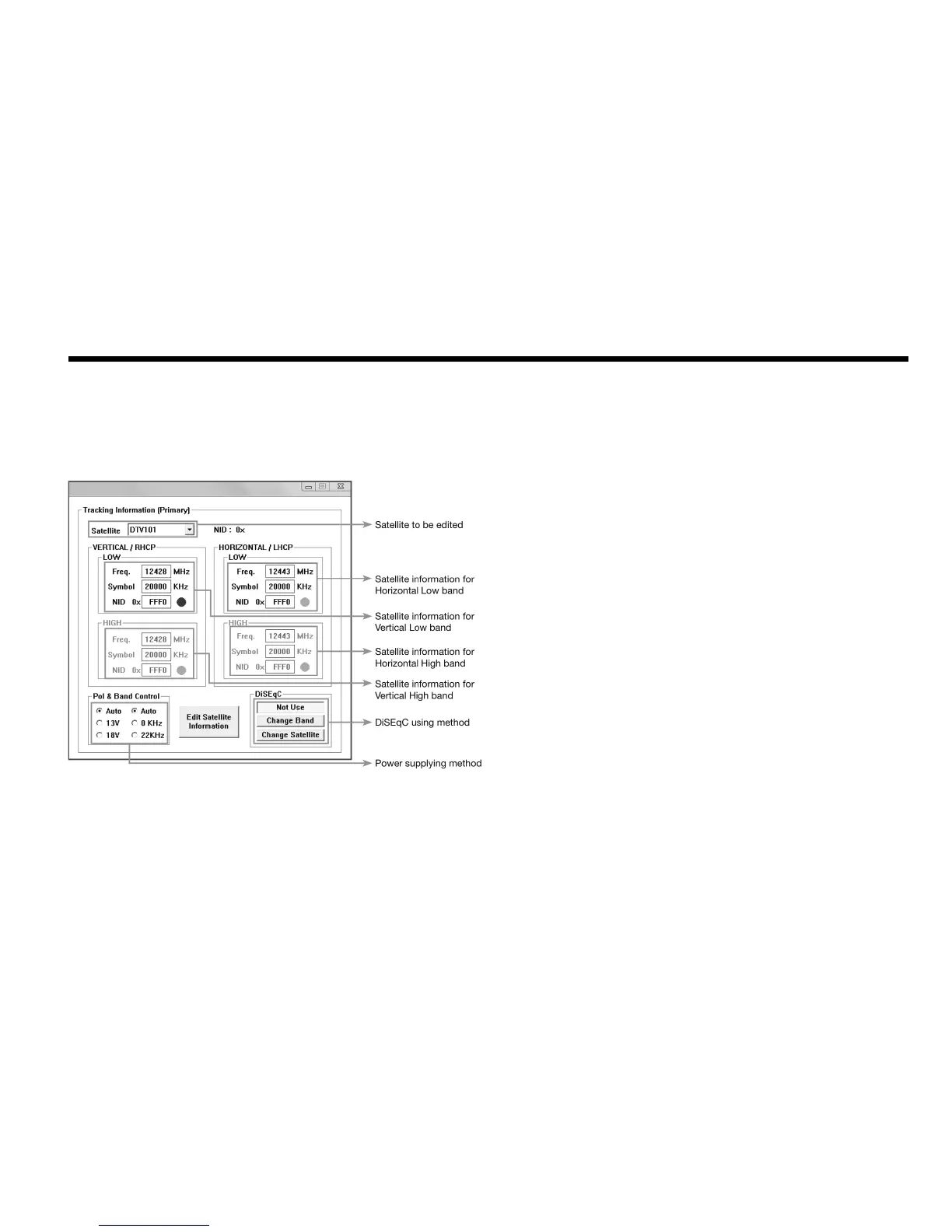

Figure 34 : Setting up the Primary Tracking Information
