Intellian i6P Installation And Operation User Guide

32
Intellian Satellite TV Antenna Systems
Edit Satellite Information
It is possible to modify the existing satellite information and input new satellite information
into the ACU as well. It is not recommended for a novice satellite service user to use this mode.

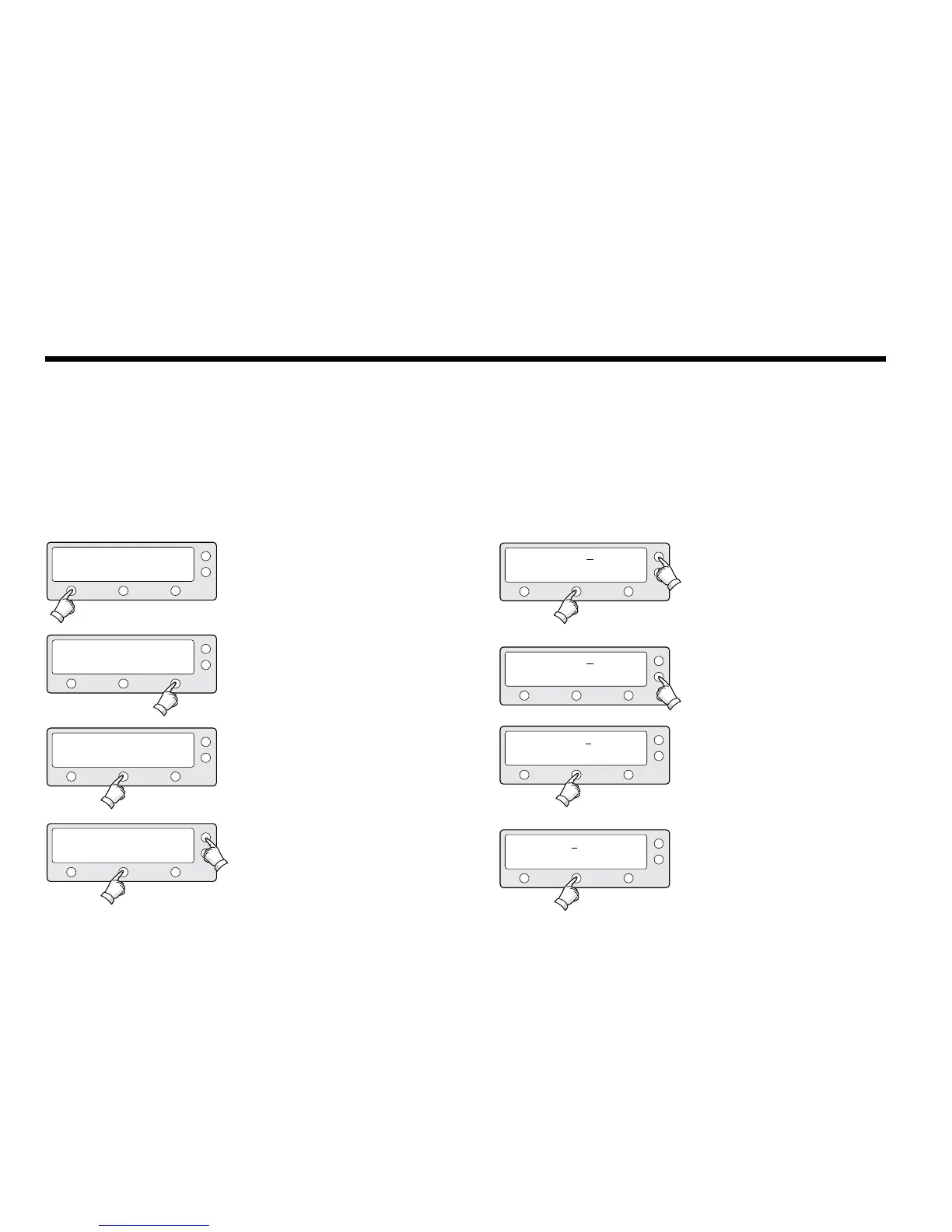

1. Press YES to enter setup mode.
2. Press NEXT twice to enter edit satellite info
mode.
3. Press YES to edit satellite info.
4. Set the satellite name.
PREV - Shows previous satellite name.
SELECT - Select the displayed satellite for
editing.
NEXT - Shows next satellite name.
Press ENTER to move to next screen.
SET SAT PAIR ?
SAT NAME : DTV101
PREV
PREV
NEXT
NEXT
NEXT
YES
YES
SELECT
X2
5. Input the satellite name.
+ increases the value. - decreases the value.
Change the underscored digit using the +/-
buttons.
Press INPUT to accept the value and move to
next digit.
Press BACK to move to previous digit.
6. Press ENTER to move to next screen.
Press BACK to return previous screen.
7. Input the satellite position.
+ increases the value. - decreases the value.
Change the underscored digit using the +/-
buttons.
Press INPUT to accept the value and move to
next digit.
Press BACK to move to previous digit.
SAT NAME : DTV101
SAT NAME : DTV101
LONGITUDE 124.00 E
-
-
-
+
+
+
INPUT
INPUT
INPUT
8. Input the tracking frequency (MHz) and symbol
rate (KHz) for vertical low band.
VER LOW 12598 21096
-
+INPUT

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
