Intellian i6P Installation And Operation User Guide

33

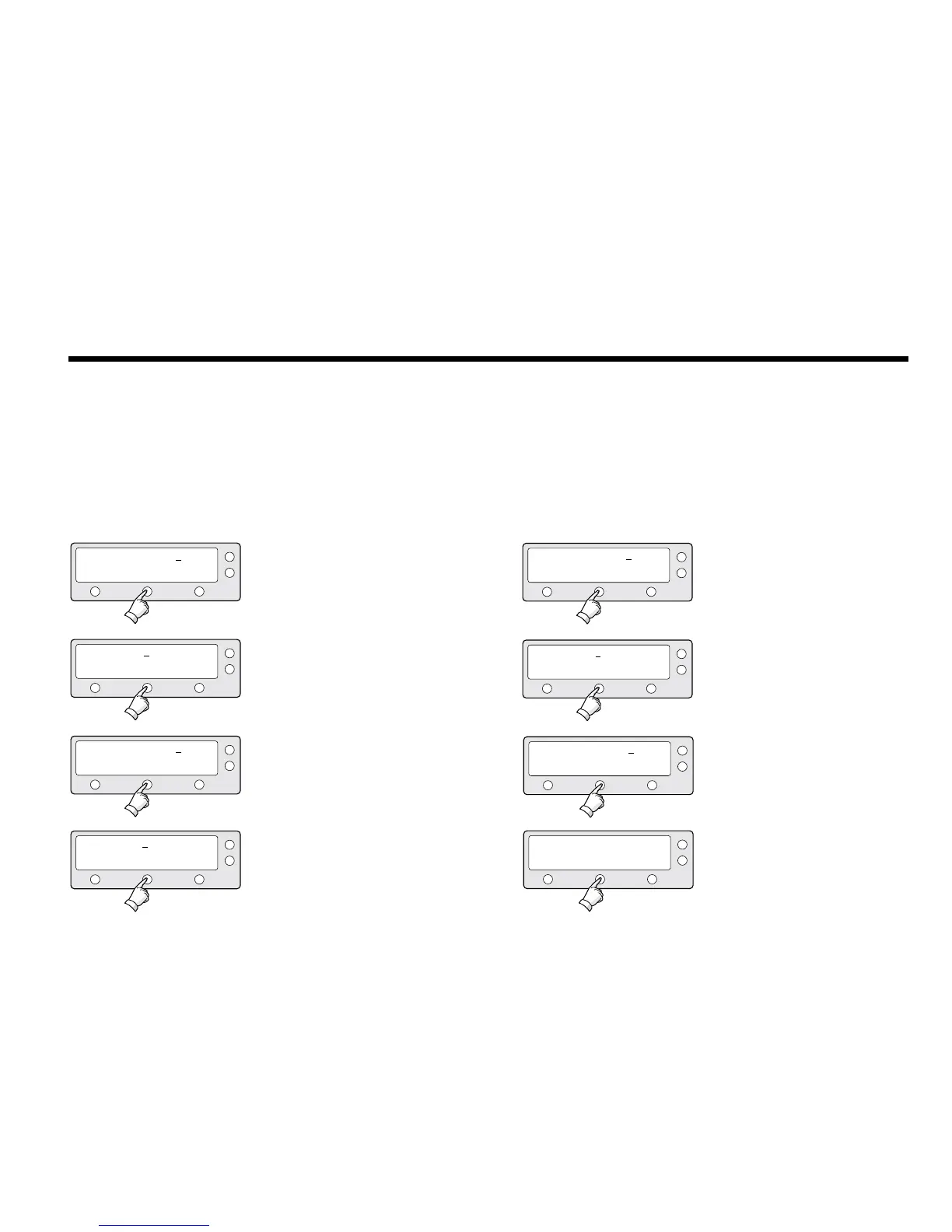

9. Input the network ID (NID) for vertical low band.
10. Input the tracking frequency (MHz) and symbol
rate (KHz) for horizontal low band.
11. Input the network ID (NID) for horizontal low
band.
12. Input the tracking frequency (MHz) and symbol
rate (KHz) for vertical high band.
HOR LOW 12523 21096
VER HIGH 12598 21096
HOR LOW NID 0x0003
-
-
-
-
+
+
+
+
INPUT
INPUT
INPUT
INPUT
VER LOW NID 0x0003
13. Input the network ID (NID) for vertical high
band.
14. Input the tracking frequency (MHz) and symbol
rate (KHz) for horizontal high band.
VER HIGH NID 0x0003
HOR HIGH 12523 21096
-
-
+
+
INPUT
INPUT
15. Input the network ID (NID) for horizontal high
band.
16. Select the Verication Method*
of tracking
satellite.
PREV - Shows previous method.
SELECT - Set the displayed method.
NEXT - Shows next method.
HOR HIGH NID 0x0003
VERIFY : DVB DECODE
-
PREV
+
NEXT
INPUT
SELECT

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
