Intellian i6P User Manual

42
Intellian Satellite TV Antenna Systems
Setting the DiSEqC Method
DiSEqC selection can be made from ACU. It is not recommended for a
novice satellite service user to use this mode.

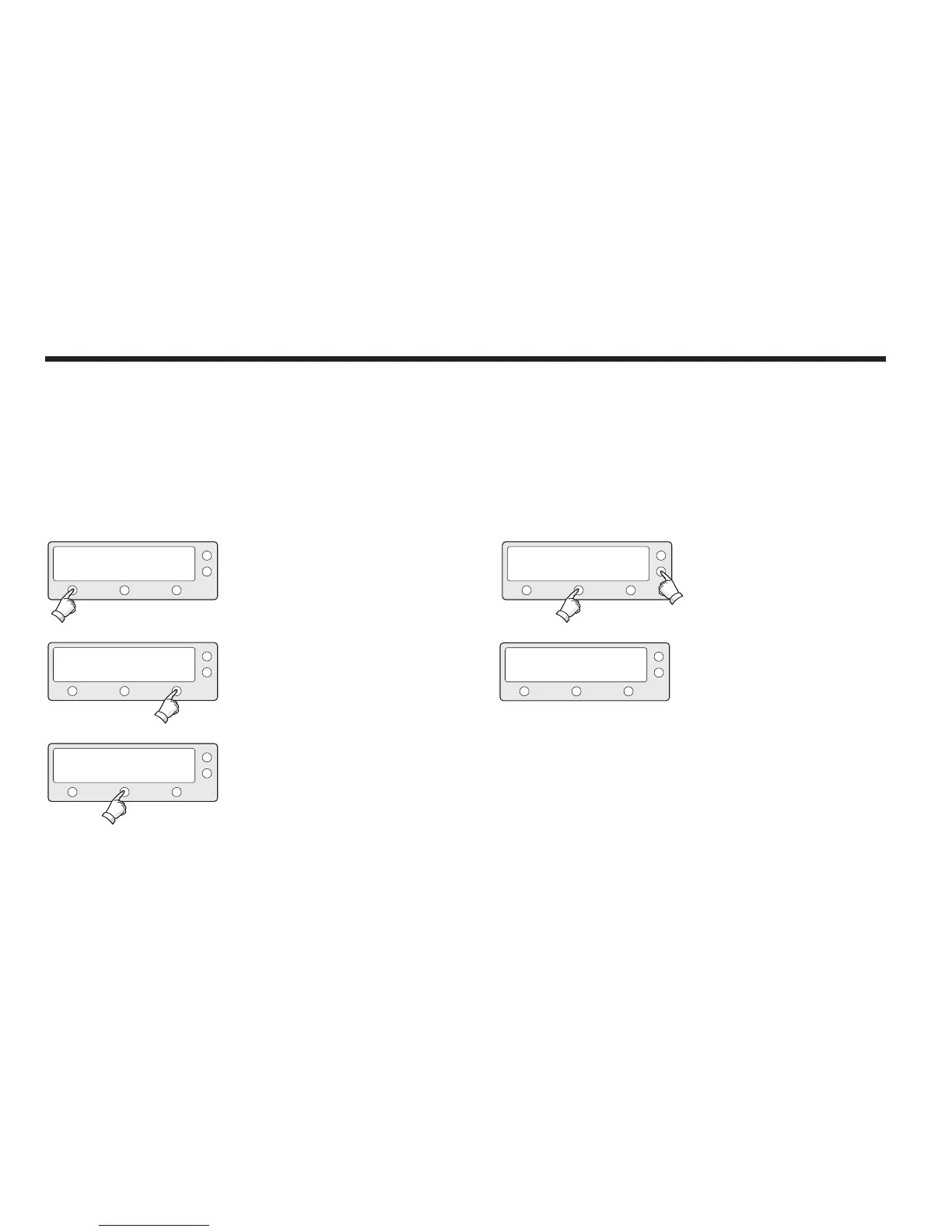

1. Press YES to enter setup mode.
2. Press NEXT ve times to enter DISEQC mode.
3. Press YES to use DISEQC.
4. Select the DiSEqC Method*
PREV - Shows previous DiSEqC Method.
SELECT/ENTER - Set the displayed DiSEqC
method.
NEXT - Shows next DiSEqC Method.
Press ENTER to move to next screen.
SETUP MODE ?
SET SAT PAIR ?
USE DISEQC ?
DO NOT USE DISEQC
YES
PREV
PREV
PREVNO
NEXT
NEXT
NEXT
YES
YES
SELECT
X5
5. Press YES to accept the selection.
Press NO to cancel and return to main setup
mode.
SAVE ?
YES NO
DiSEqC Method*
DO NOT USE DISEQC - DiSEqC is not being used.
USE TO CHANGE BAND - DiSEqC is being used to change to low and high band.
USE TO CHANGE SAT - DiSEqC is being used to change tracking satellite.

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
