Intellian i6P User Manual

43

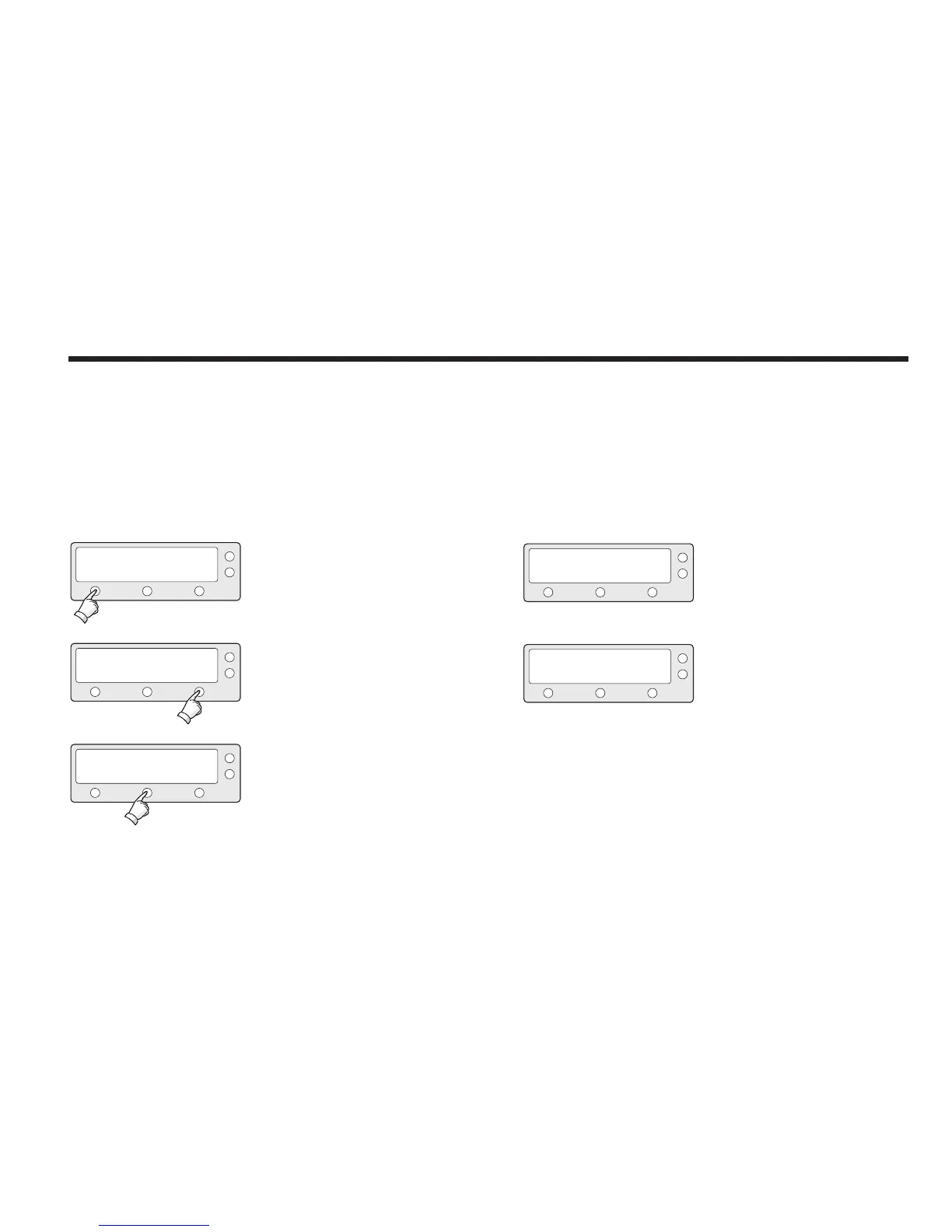

1. Press YES to enter setup mode.
2. Press NEXT six times to enter the Use DiSEqC
1.2 menu.
3. Press YES to set the use of DiSEqC 1.2.
SETUP MODE ?
SET SAT PAIR ?
USE DISEQC 1.2 ?
YES
PREV
PREV
NO
NEXT
NEXT
YES
YES
X6
Setting the Use of DiSEqC 1.2
If DiSEqC 1.2 protocol is in use on your IRD, enable the DiSEqC 1.2 set-
ting on the ACU to process the DiSEqC 1.2 command.
4. Set the USE DiSEqC 1.2 to a desired option*.
PREV - Shows previous option (YES/NO)
SELECT/ENTER - Set the displayed option for
DiSEqC 1.2.
NEXT - Shows next option (YES/NO)
Press ENTER to move to next screen.
5. Press YES to accept the data.
Press NO to cancel and return to main setup
mode.
USE DISEQC 1.2 : NO
NEXT
PREV SELECT
SAVE ?
YES
NO
Options for ‘USE DiSEqC 1.2’
YES - Select this option if the DiSEqC 1.2 is used.
NO - Select this option if the DiSEqC 1.2 is not used.

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
