Intellian i6P User Manual

44
Intellian Satellite TV Antenna Systems
Setting the LNB Skew
(This menu is available for i6P and i6PE.)

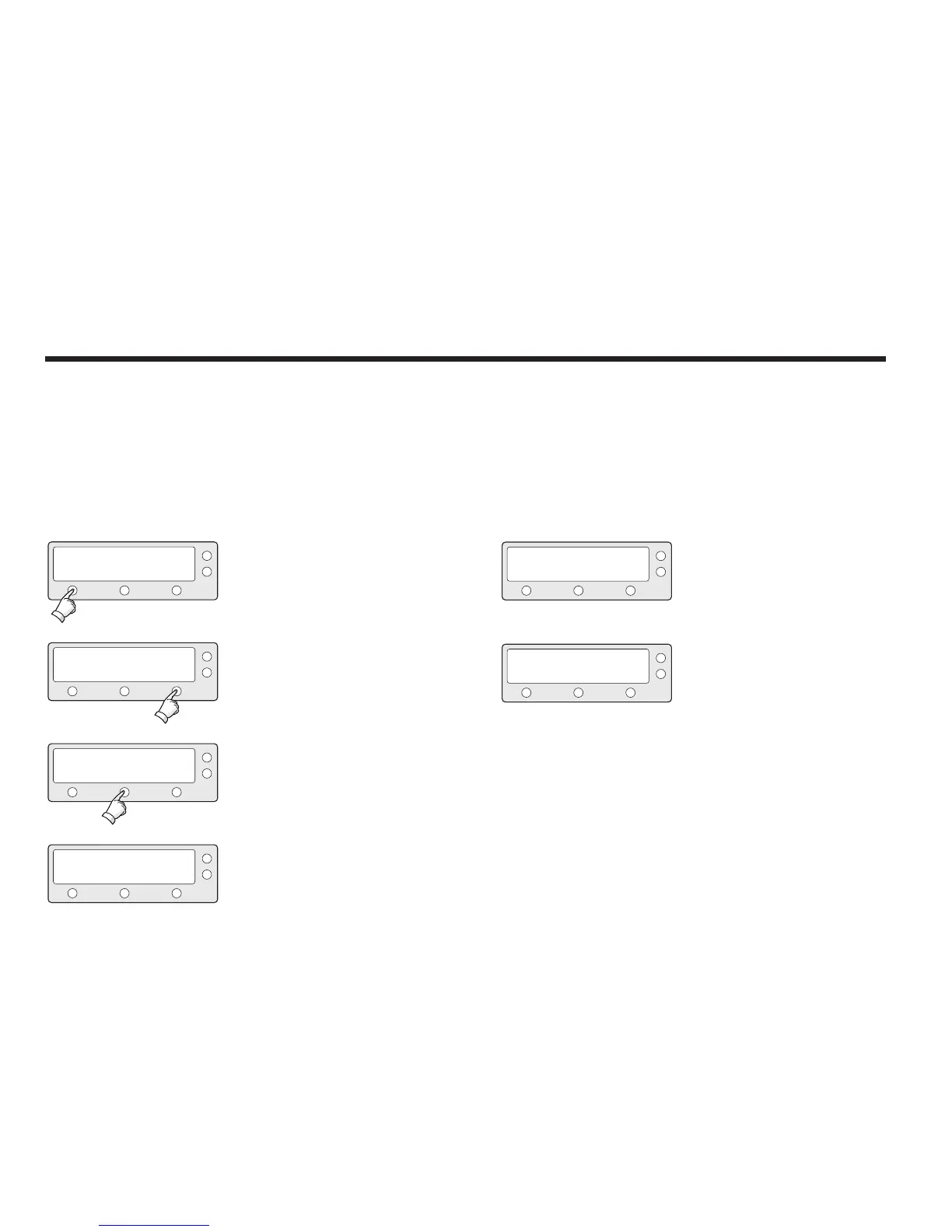

1. Press YES to enter setup mode.
2. Press NEXT seven times to enter the Set LNB
Skew menu.
3. Press YES to set the LNB Skew menu.
4. Press SELECT to calibrate LNB skew angle or
press NEXT to enter ‘Skew: Manual’ option.
SETUP MODE ?
SET SAT PAIR ?
SET LNB SKEW
SKEW : CALIBRATION
PREV
PREV
PREV
NO
NEXT
NEXT
YES
YES
SELECT
YES
5. Press SELECT to set the LNB skew angle
manually.
6. Press SET to save the changed LNB skew angle.
SKEW : 2.0 -> 0
+1
NEXT
X7
SKEW : MANUAL
PREV
-1
SELECT
SET
NEXT

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
