Intellian i6P User Manual

45

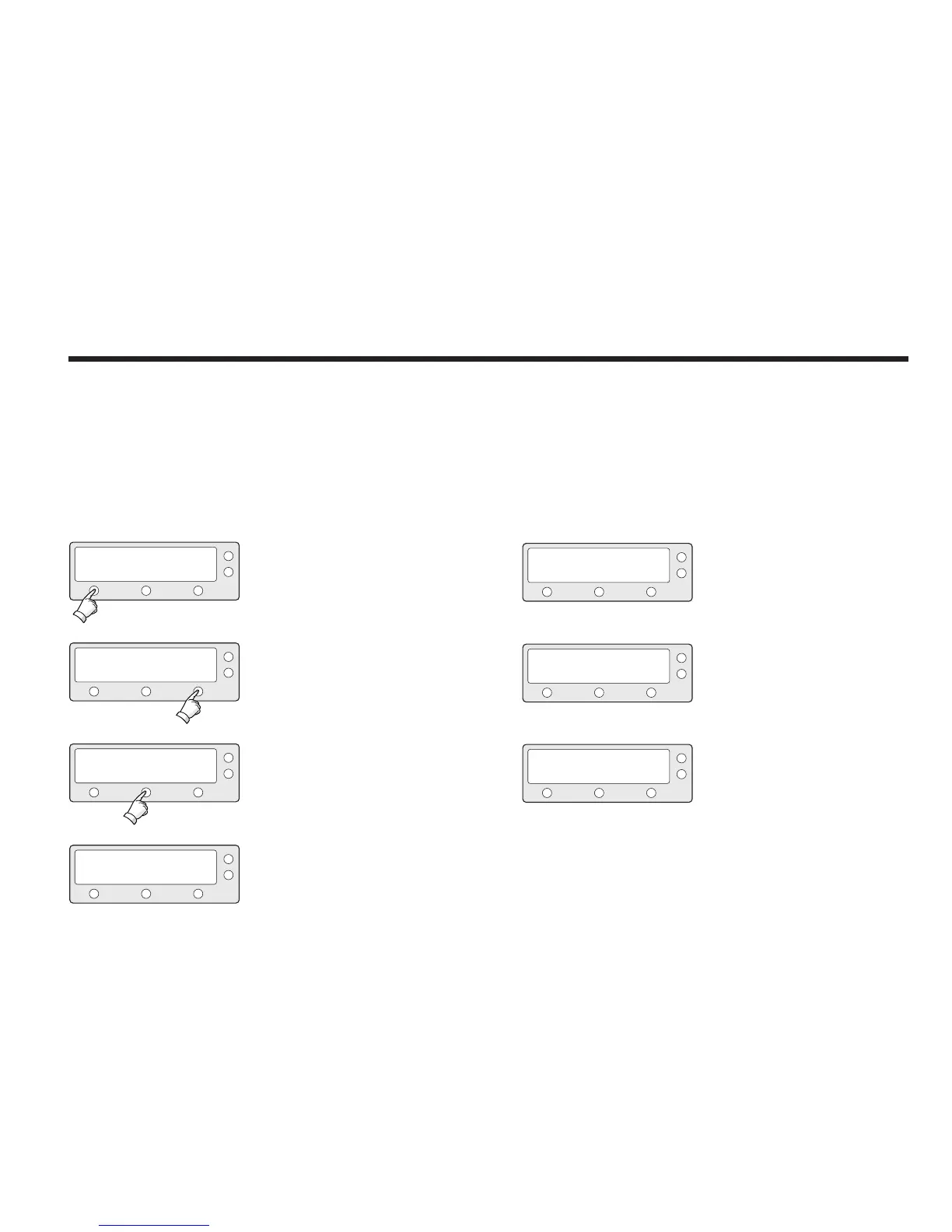

1. Press YES to enter Display Version.
2. Press NEXT seven times to enter the View
Version mode.
(*i6P/i6PE: Press NEXT eight times)
3. Press YES to view version.
4. Antenna product name and S/N are shown.
Press EXIT to return to main setup mode.
DISPLAY VERSION?
SET SAT PAIR ?
VIEW VERSION ?
B4-629Q
YES
PREV
PREV
S/N: 0000000000
NO
NEXT
NEXT
EXIT
YES
YES
X7
Display Versions
This sequence enables you to see what version of antenna and ACU
software are installed on your system.
5. Antenna software version and S/N are shown.
Press EXIT to return to main setup mode.
6. ACU software version and S/N are shown.
Press EXIT to return to main setup mode.
7. Library version and S/N are shown.
Press EXIT to return to main setup mode.
ANT S/W VER : 4.00
ACU S/W VER : 0.01
LIBRARY VER : 0.01
S/N: 0000000000
S/N: 0000000000
S/N: 0000000000
EXIT
EXIT
EXIT

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
