Intellian i6P User Manual

46
Intellian Satellite TV Antenna Systems
Display Power

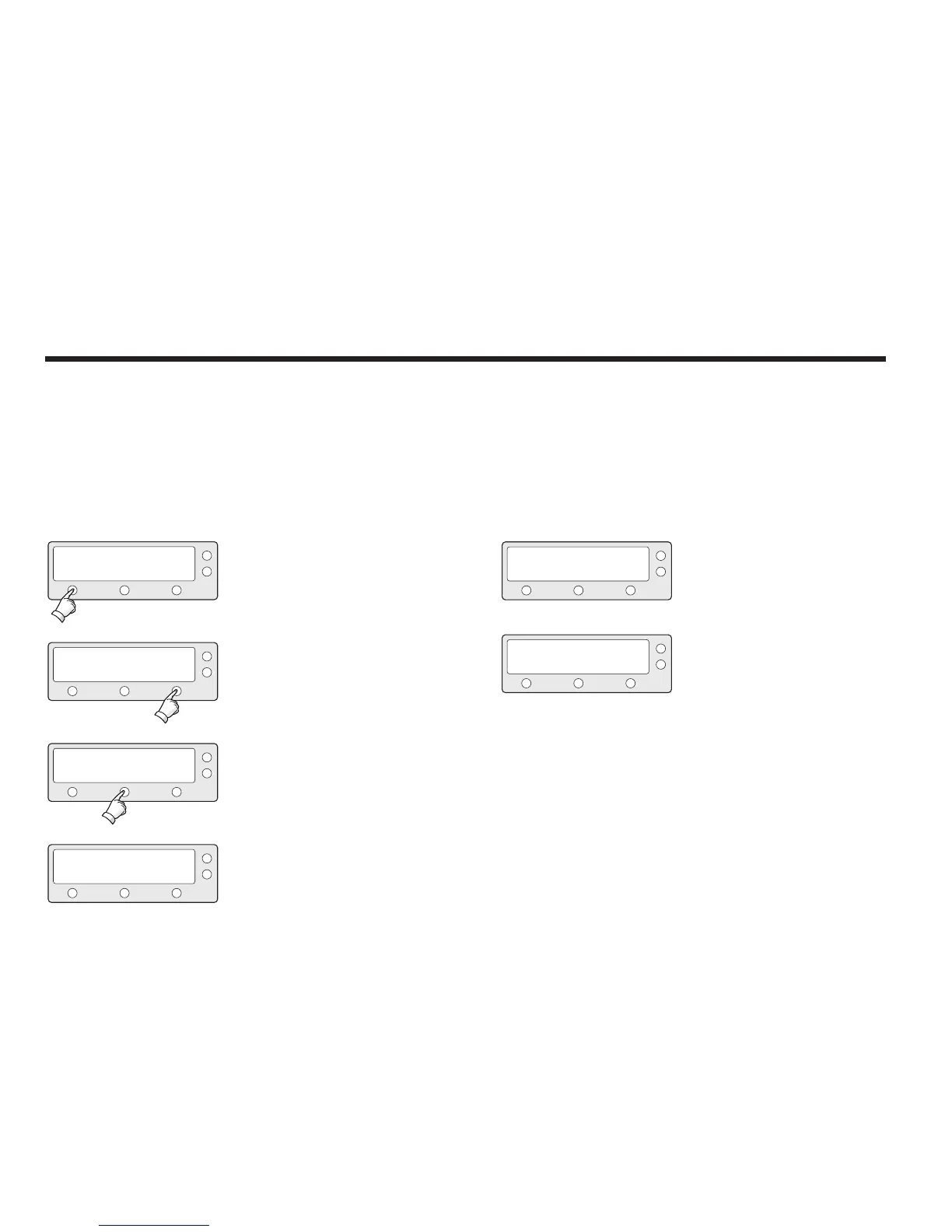

1. Press YES to enter setup mode.
2. Press NEXT eight times to enter the view power
mode.
(*i6P/i6PE: Press NEXT nine times)
3. Press YES to view power.
4. ACU power is shown.
Press any key to return to main setup mode.
SETUP MODE ?
SET SAT PAIR ?
VIEW POWER ?
ACU POWER : 27.1 V
PREV
PREV
NO
NEXT
NEXT
YES
YES
X8
YES
5. Antenna power is shown.
Press any key to return to main setup mode.
ANT POWER : 25.9 V
6. IRD voltage with tone is shown.
Press EXIT to return to main setup mode.
IRD : 18V + ##kHz
EXIT
EXIT
EXIT

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
