Intellian i6P User Manual

47

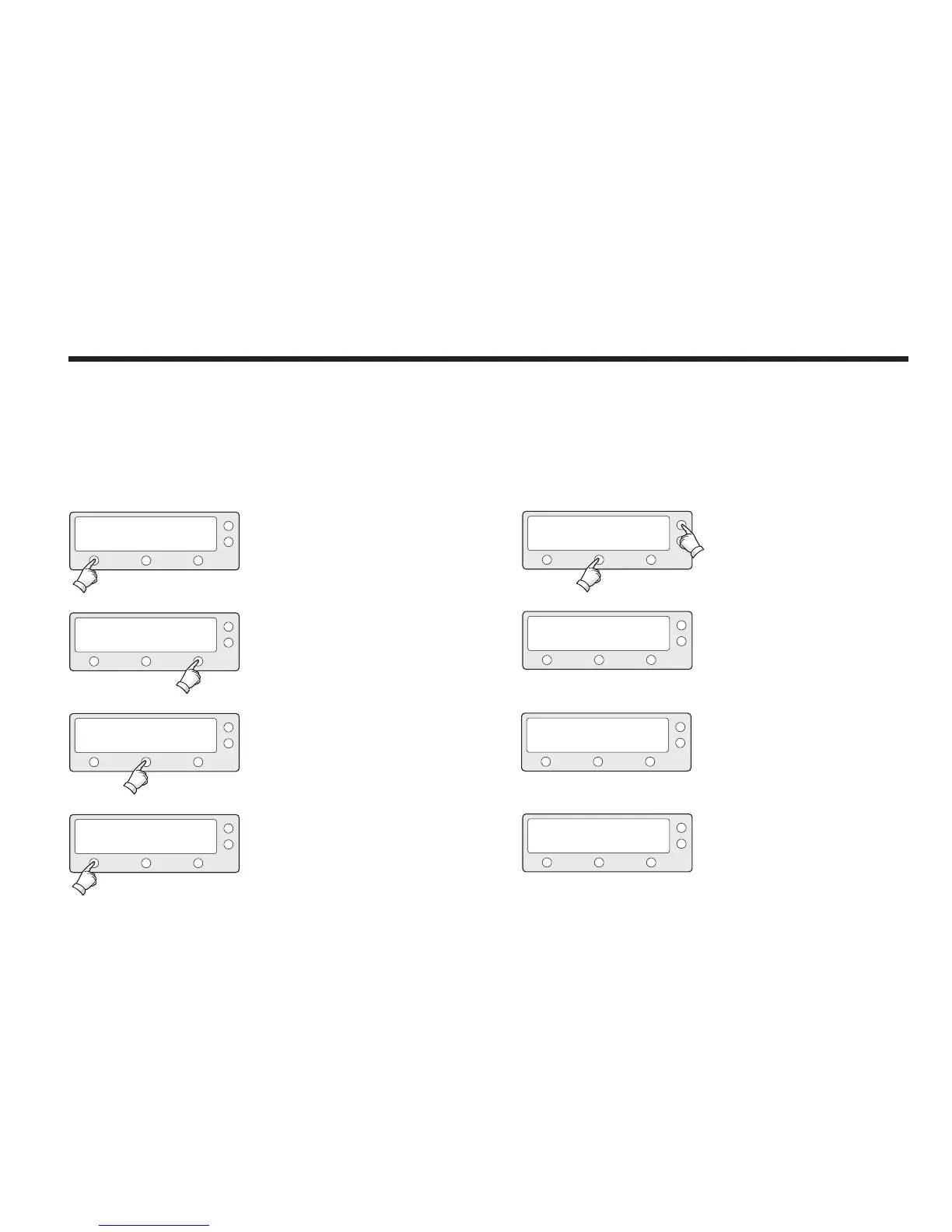

Setting Remote Control
1. Press YES to enter setup mode.
2. Press NEXT nine times to enter remote control
setting mode .
(*i6P/i6PE: Press NEXT ten times)
3. Press YES to set remote control.
4. Select the Function*
NEXT - Shows next function.
SETUP MODE ?
SET SAT PAIR ?
SET REMOCON ?
FUNC : CHANGE SAT
YES
PREV
PREV
NEXT
NO
NEXT
NEXT
EXIT
YES
YES
SELECT
X9
5. SELECT/ENTER - Registers a key on remote
control.
PRESS A REMOTE KEY
NEXT
BACK
EXIT
EXIT
SELECT
FUNC : SLEEP MODE
7. If failed to press the same key twice, TRY AGAIN
will be displayed.
8. If failed to register a free key, KEY IS USING will
be displayed.
FAILED - TRY AGAIN
THAT KEY IS USING
6. Point remote control to ACU.
Press any key on remote control for selected
function and press same key again for
conrmation.
Press BACK to move to previous screen.
Press EXIT to return to main setup mode.

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
