Intellian i6P User Manual

51
4. CODE 101 is being tested.
Press EXIT to return to main setup mode.
5. CODE* 101 has passed.
Press EXIT to return to main setup mode.
CODE 101 TESTING
CODE 101 PASSED.
RESULT: ?
RESULT: ●
EXIT
EXIT

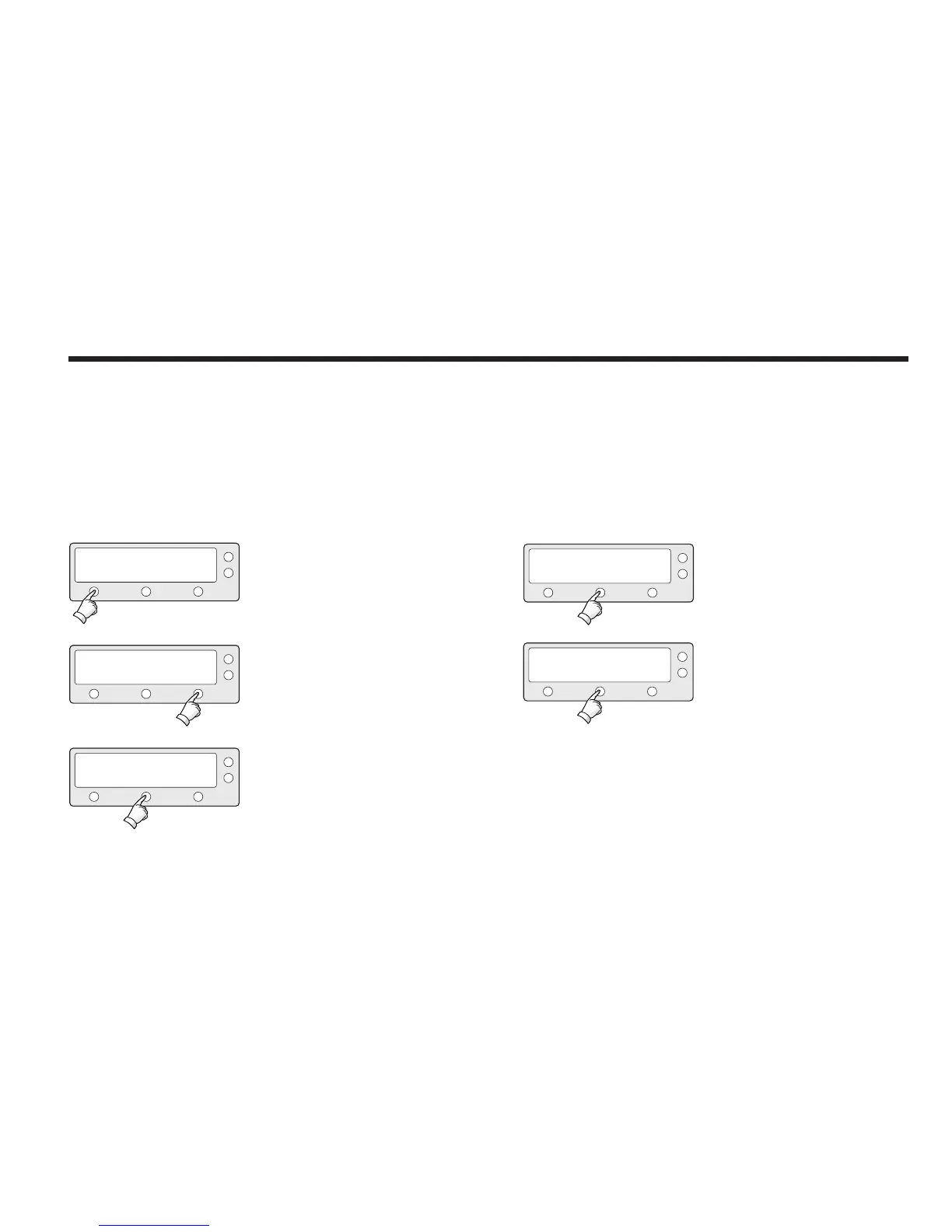

Executing Antenna Diagnosis
The antenna status can be checked by reviewing the results of the
diagnostic self-test of the antenna. Refer to the following codes to understand the test results.
1. Press YES to enter setup mode.
2. Press NEXT twelve times to enter Antenna
Diagnosis mode.
(*i6P/i6PE: Press NEXT thirteen times)
3. Press YES to diagnosis antenna.
SETUP MODE ?
SET SAT PAIR ?
ANT DIAGNOSIS ?
YES
PREV
PREV
NO
NEXT
NEXT
YES
YES
X12

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
