16
V110 – Marine Satellite Communication System
Preparing Antenna Supporting Pole
Unit: mm/inch

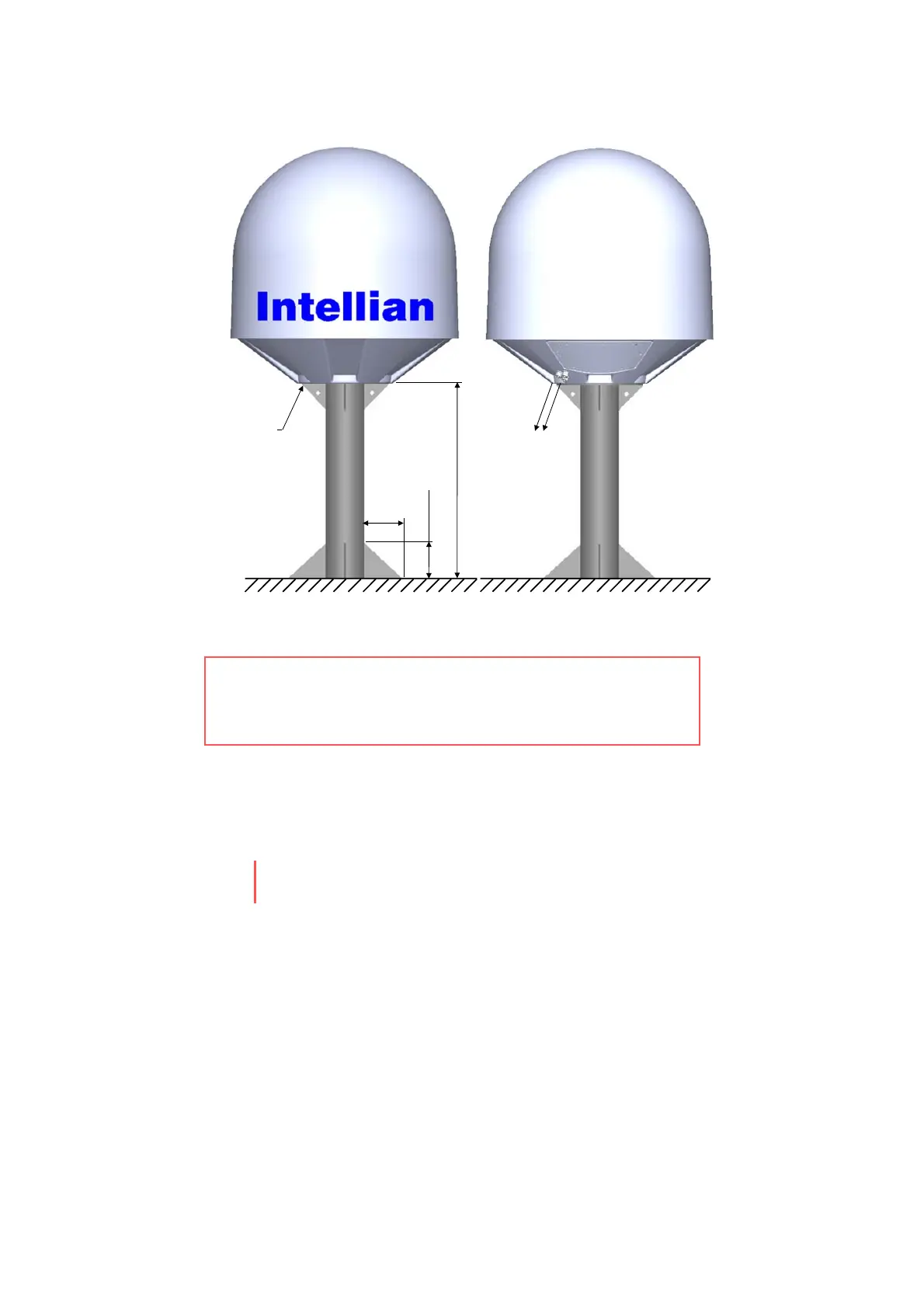

Figure 15. Recommended Dimension of Mounting Pole
WARNING: Ensure that cables have been run through watertight fittings to
prevent water entry into the vessel when the installation is
completed. The coax cables must be inserted through the cable
strain relief(s) at the base of the radome.
Cable Entry
1,000~1,500 (40~60”)
Base Panel (10t)
200 (7.8”)
150 (5.9”)
To Next Page
