Antenna Mounting Hole Pattern
The mounting holes must be in the exact same place as shown in the
diagram below.
24.7 cm (9.7”)
ø48cm (18.9”)
24.7cm (9.7”)
Ø48cm(18.9”)
4-Ø14
HOLES

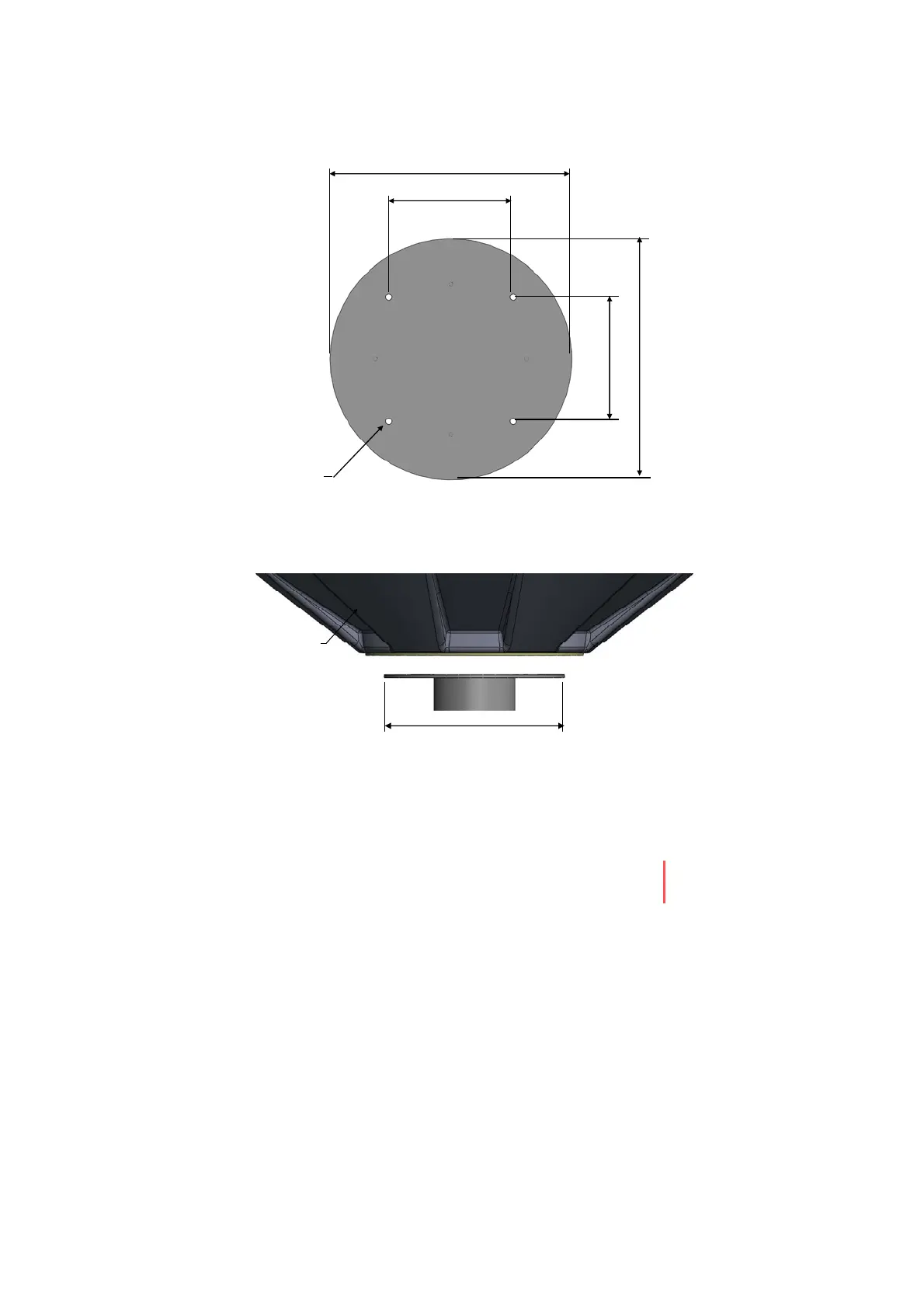

Figure 13. Dimension of Mounting Hole Pattern
ø48cm (18.9”)
V110 Radome
Bottom
Figure 14. Dimension of Mounting Plate
