V110 – Marine Satellite Communication System
◀
NBD F:1247000 BW: 1000 SIG:301
●▶
004.53E 52.22N HDG:000.0 L:10000 Fn
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
5. NBD, GPS and ship’s heading information are shown.
- NBD (Narrow Band Detector) Frequency : 1247000 KHz (IF Frequency)
- Band Width : 1000KHz
- SIG (Signal Level ): 301
- LNB LO. frequency : 10000 MHz (13V+0KHz)
- HDG (Ship’s Heading) : 000.0
- W (West ) / E (East) Lon gitude : 4.53E
- N (North ) / S (South) Latitude : 52.22N
OK
M
R
F

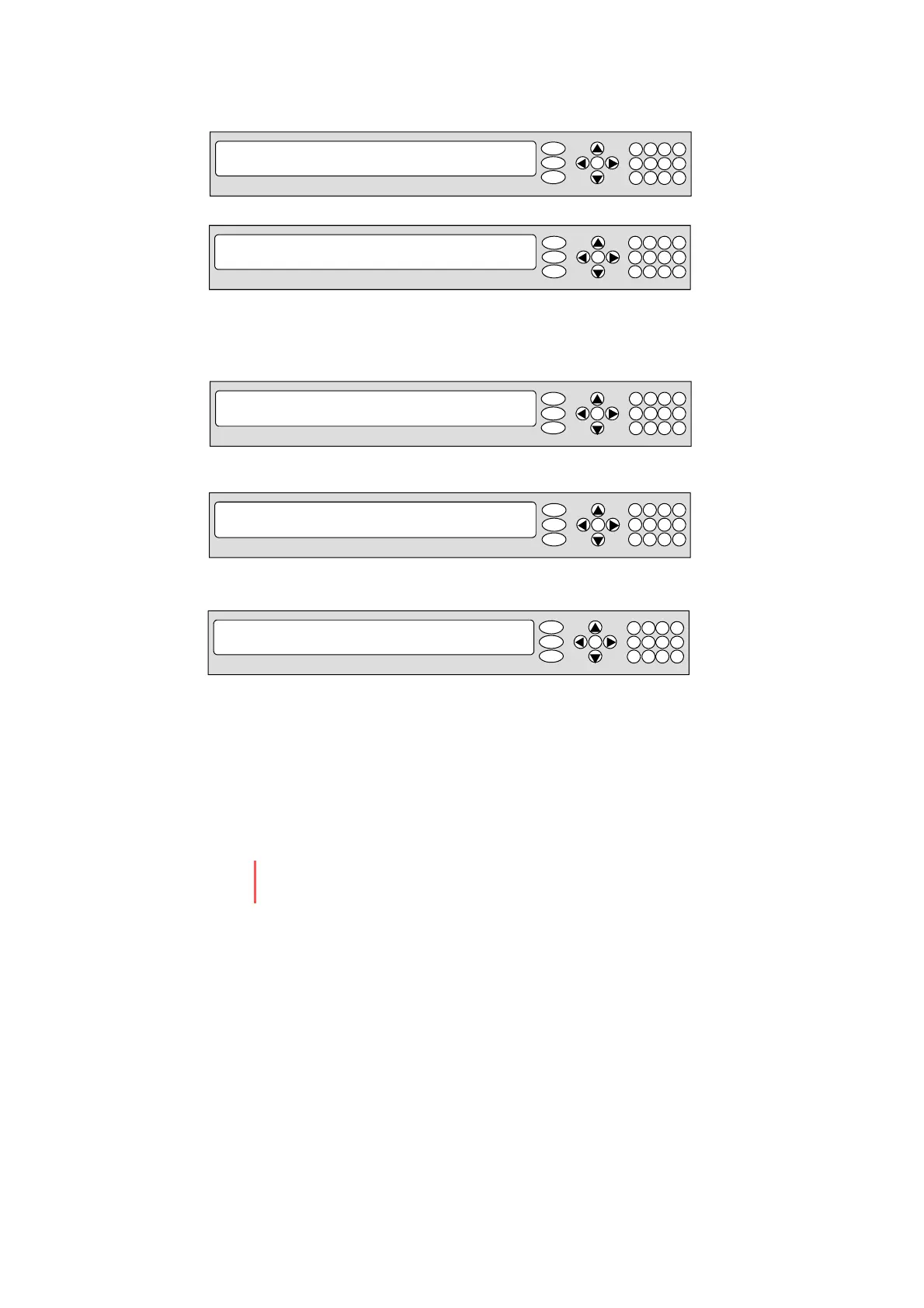

Monitoring Antenna Current Status
While the ACU power is on, it displays the status of the antenna. The
current status of the antenna is displayed as shown below.
◀
SEARCH2 113.0E KOREA_5 SIG:301 VL
▶
AZ:202.7( 202.7) EL: 48.3 SK:-72.0
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
2. The antenna is tracking current satellite.
True azimuth [ 202.7 ] position of the antenna is the sum of ships heading 000.0 [ HDG ]
an d antenna relative [ 202.7 ]. Cu rren t IF signal level (SIG/ AGC) is displayed . ● will
be only displayed when signal is strong enough to lock onto the satellite. [VL] refers to
vertical low. Local frequency is decided by the supplied voltage from the LNB.
1. The antenna is searching for current satellite.
SAVE CURRENT SAT INFO ?
→ YES NO
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
3. Press FUNCTION key to save current satellite information or abort and return to the
main display.
OK
M
R
F
OK
M
R
F
4. While the antenna is tracking the satellite, press RIGHT arrow key to display NBD ,
GPS and ship’s heading information.
◀
TRACKING 113.0E KOREA_5 SIG:301
●
VL
▶
AZ:202.7( 202.7) EL: 48.3 SK:-72.0 Fn
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
OK
M
R
F
◀
TRACKING 113.0E KOREA_5 SIG:301
●
VL
▶
AZ:202.7( 202.7) EL: 48.3 SK:-72.0 Fn
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
OK
M
R
F
