Antenna Control Unit

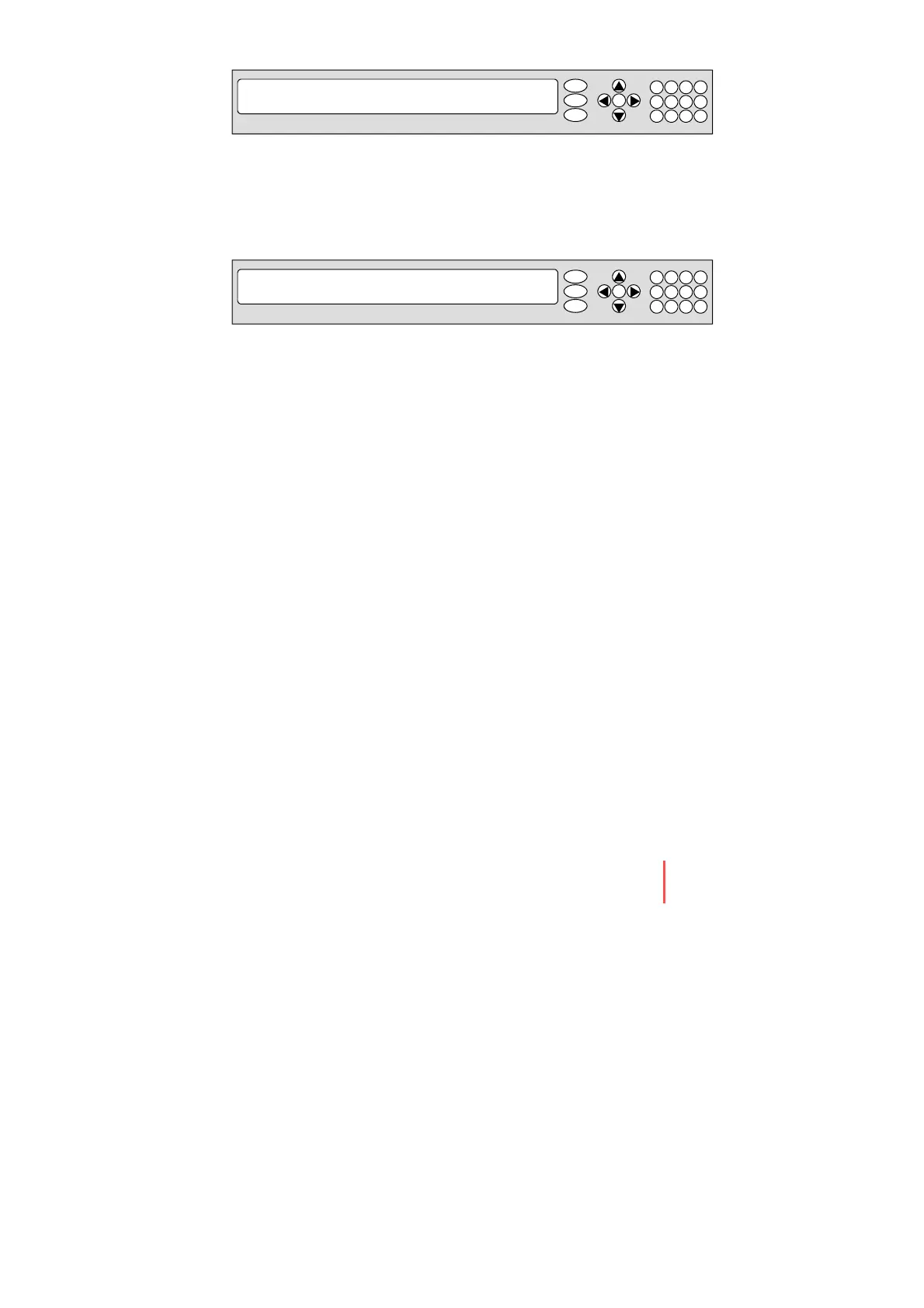

6. Press RIGHT arrow key to display ACU operation voltage , antenna operation
voltage and LNB voltage supplied information.
- VL (Vertical Low) : 13V+0KHz
- HL (Horizontal Low) : 18V+0KHz
- VH (Vertical High) : 13V + 22KHz
- HH (Horizontal High) : 18V+22KHz
OK
M
R
F
◀
V1-11426 ANT. Serial 1.00
▶
VP-T100 ACU Serial 1.00(1.00)
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
7. Press RIGHT arrow key to display system firmware and library versions.
ANT Serial : Antenna Serial Number, 1.00 (PCU Version)
ACU Serial : Anten na Con trol Unit Serial Number, 1.00 (ACU Main version), (1.00)
(Library version)
OK
M
R
F
Operating the ACU
