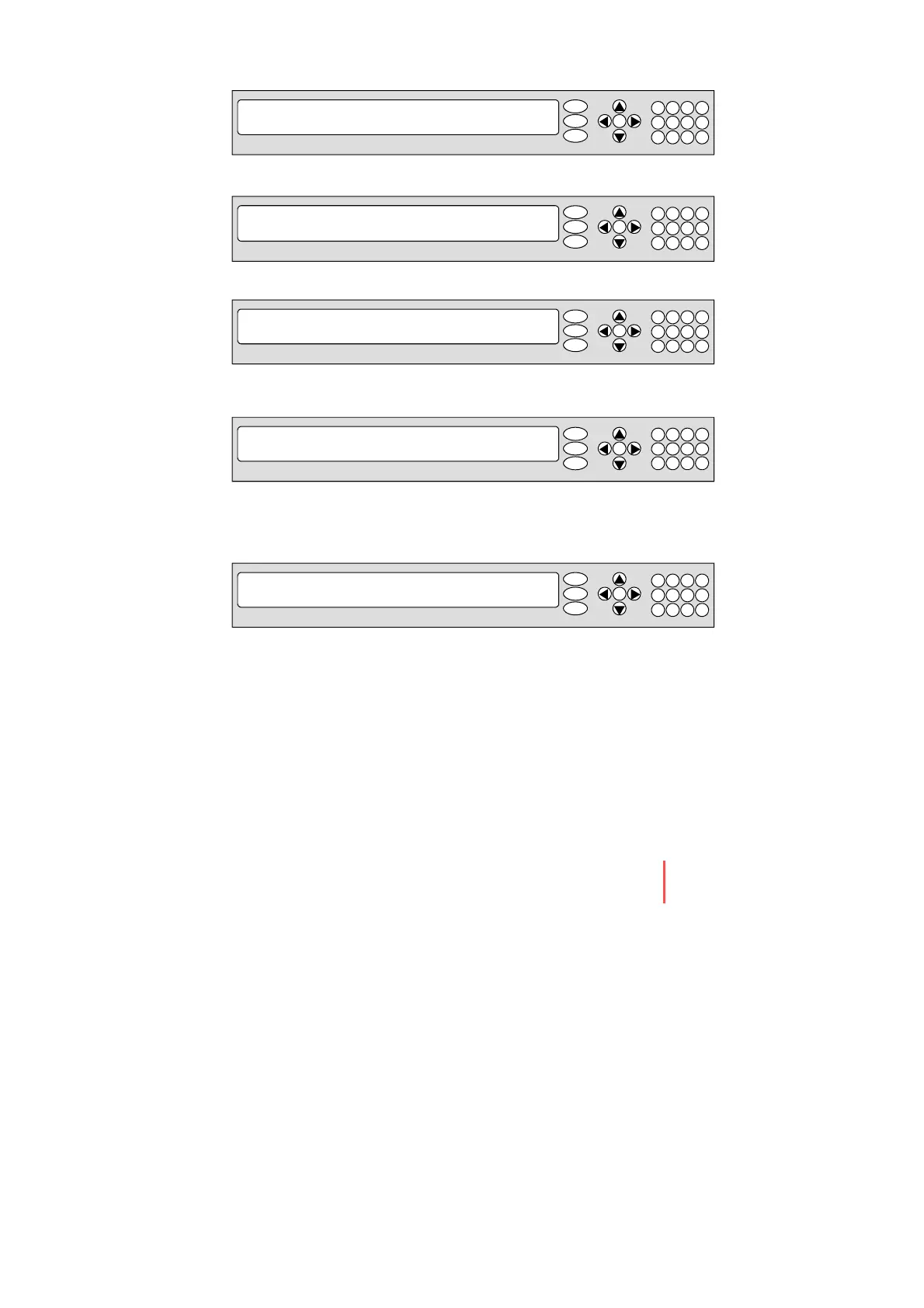

Setting Antenna LNB Skew Angle
3. Press RIGHT arrow key to move cursor to SET SKEW and press OK key to
enter SET SKEW menu.
◀ +MANUAL SEARCH →+SET SKEW ▶
+SEARCH PARAM +SET PARAMETERS
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
4. Press UP and DOWN arrow keys to select the skew type and press OK key
to run the selected operation ‘ CALIBRATION ‘ or ‘ MANUAL ‘. Select MANUAL to
control LNB skew angle manually. If you replace the control board , skew
poten tiometer or belt , select CALIBRATION to calibrate LNB skew angle.
SELECT SKEW TYPE
▲ CALIBRATION ▼
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
SKEW SIGNAL: 180
▲ 20 ▼
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
5. Press UP and DOWN arrow keys to increase or decrease the LNB skew angle
manually and the corresponded SIGNAL level will be displayed next to it.
Press RETURN key to return to the main display.
SETUP MODE ?
→ YES NO
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
1. Press LEFT key to move cursor to YES and press OK key to enter setup mode.
→+ANTENNA +SATELLITE
+SYSTEM +INSTALLATION
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
2. Press OK key to enter ANTENNA menu.
OK
M
R
F
OK
M
R
F
OK
M
R
F
OK
M
R
F
OK
M
R
F
