41
SEARCH2 AZ SEARCH2 EL
▲ 0
06 ▼ 06
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Cont rol Unit
OK
M
R
F
SEARCH3 AZ SEARCH3 EL
▲ 0
03 ▼ 04
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Cont rol Unit
5.Set the SEARCH 2 and 3 A (Azimuth) range (Range : 0 – 360) and set the
SEARCH 2 and 3 EL (Elevation) range. (Range : 0 -90)
Press LEFT and RIGHT arrow keys until the desired character is underscored (selected).
Press UP and DOWN arrow keys to increase and decrease the selected character. Or
press NUMBER keys to set the desired value directly. Press OK key to set the
parameter and set next parameter. Press RETURN key to select the parameter you
wish to edit and press the RETURN key again to save or abort and return to the main
display.
OK
M
R
F

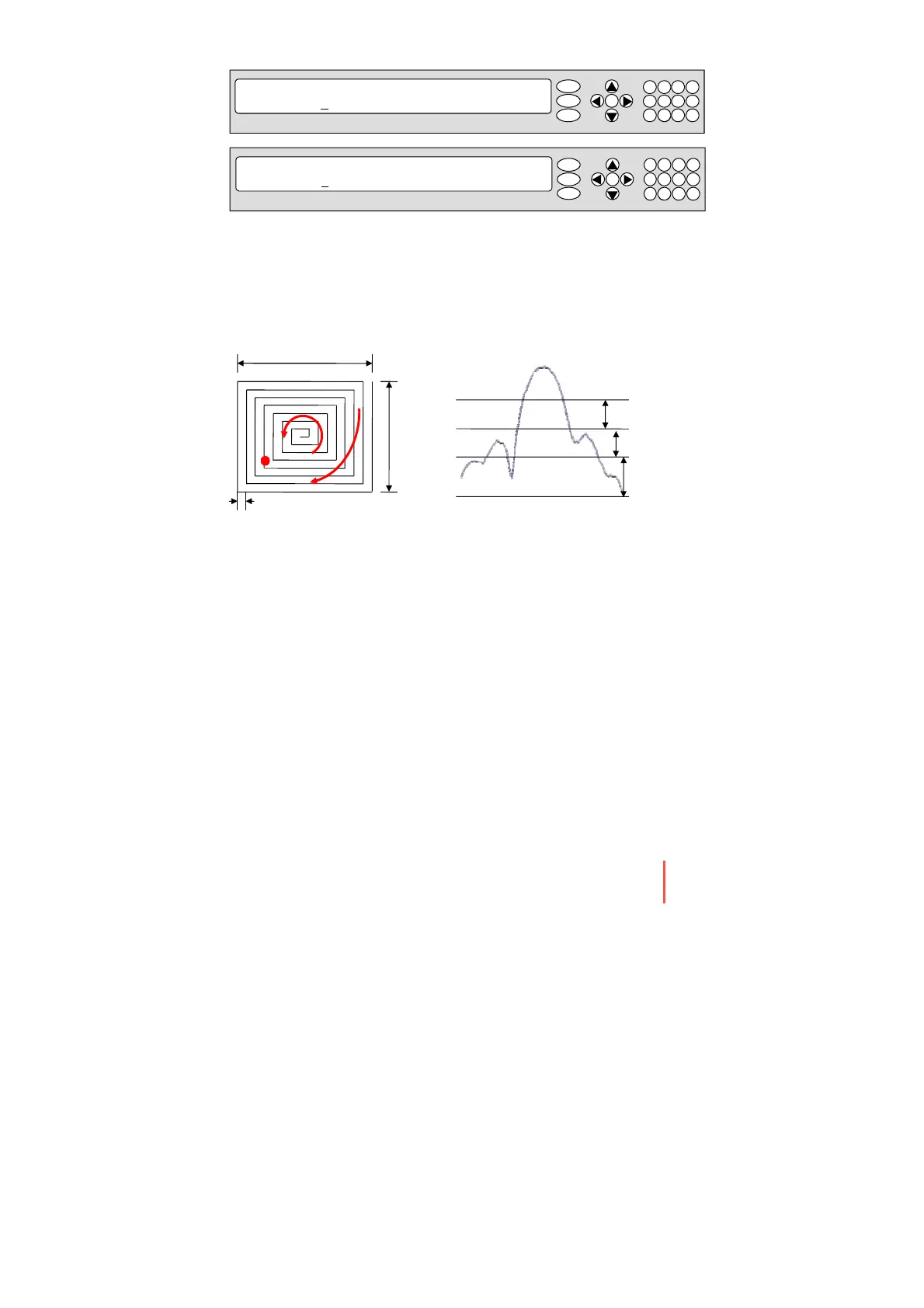

A search pattern will automatically be initiated when AGC/SIG falls below the current
threshold setting (indicates that satellite signal has been lost). Search is conducted
in a two-axis pattern consisting of alternate movements in azimuth (AZ) and elevation
(EL) as forming expanding square indicated as below diagram.
Search 2 : a search pattern 2 will automatically be initiated when AGC / SIG falls below
the current detect level threshold value. Search 3: a search pattern 3 will automatically
be initiated when AGC / SIG falls below the current tracking level threshold value.
Noise Level
Detect Level
Tracking Level
Peak Level
Azimuth (AZ) Range
Elevation
(EL)Range
1
Operating the ACU
