skew angle when replace the control board, skew potentiometer or belt.
Set Tracking Information of Current Satellite
Satellite name,
orbit position (longitude)
and satellite skew offset
DVB Tracking Frequency
NBD Tracking Frequency
LNB Local Frequency
Display current LNB
local frequency and
supplied LNB power
Setup RX and TX polarity
and tracking method

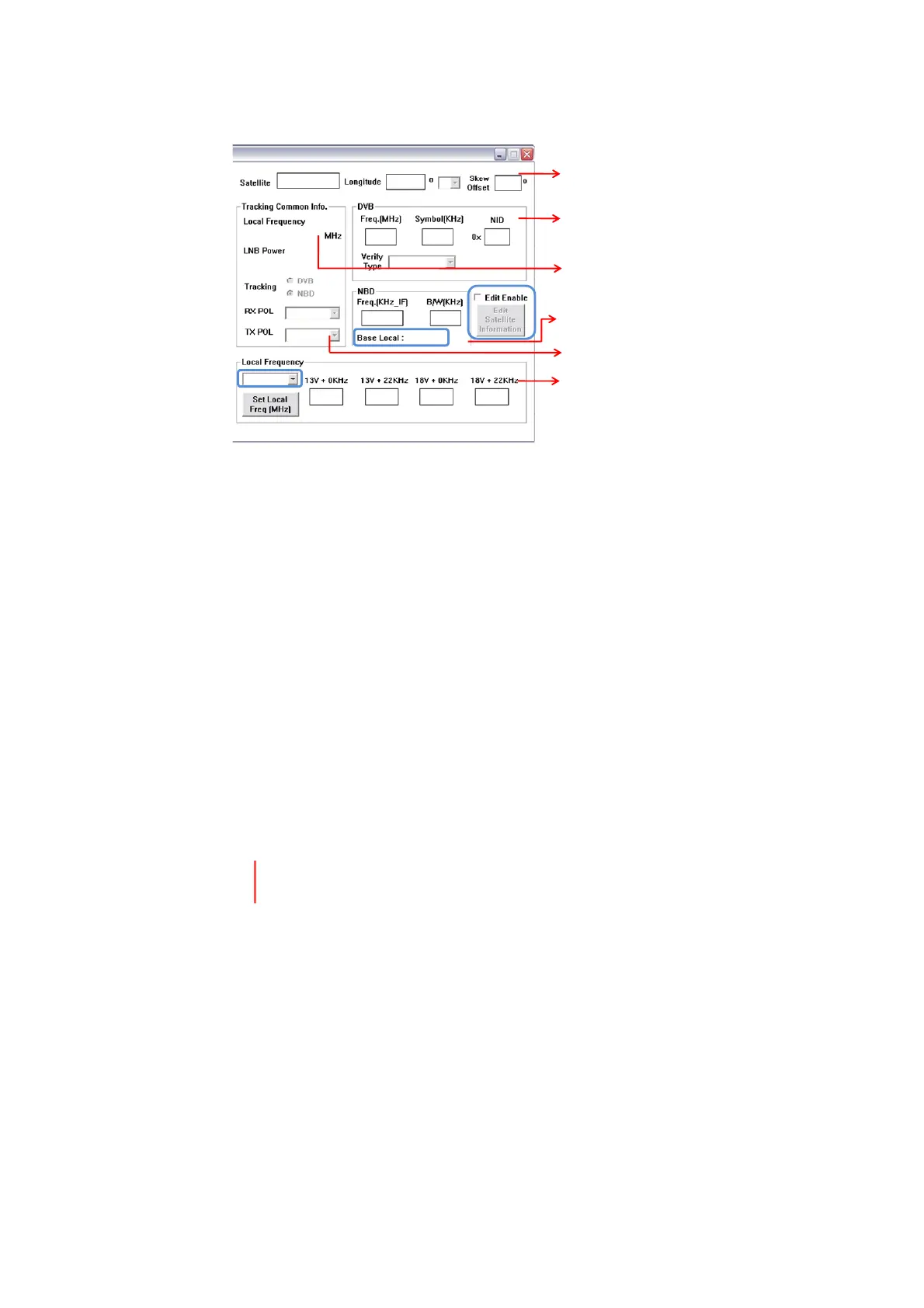

Figure 31. Setup the Current Satellite Tracking Information
Definition of Functions
Satellite, Longitude and Skew Offset: To display current target
satellite name, longitude position and LNB skew angle offset value.
TR Frequency Common Info: 1) To display current LNB local
frequency and supplied LNB power. 2) To setup tracking method
between NBD and DVB (Tuner). 3) To setup RX and TX polarity.
DVB: To setup tracking information for DVB tracking mode.
NBD: To setup tracking information for NBD tracking mode.
Local Frequency: To display LNB local frequency to the corresponded
LNB power.
Base Local: To display the local frequency of NBD RX.
Select the Swedish Microwave (SMW) LNB type. If SMW LNB is
already set, SMW LNB type will be displayed.
In the “Setup mode”, check the “Edit Enable” check box to set the
desired value for each parameter you wish to edit. After the changes are
made, click “Edit Satellite Information” button to save the current
settings.
