Intellinet 525800 User Manual

High-Power Ceiling Mount Wireless 300N PoE Access Point
29

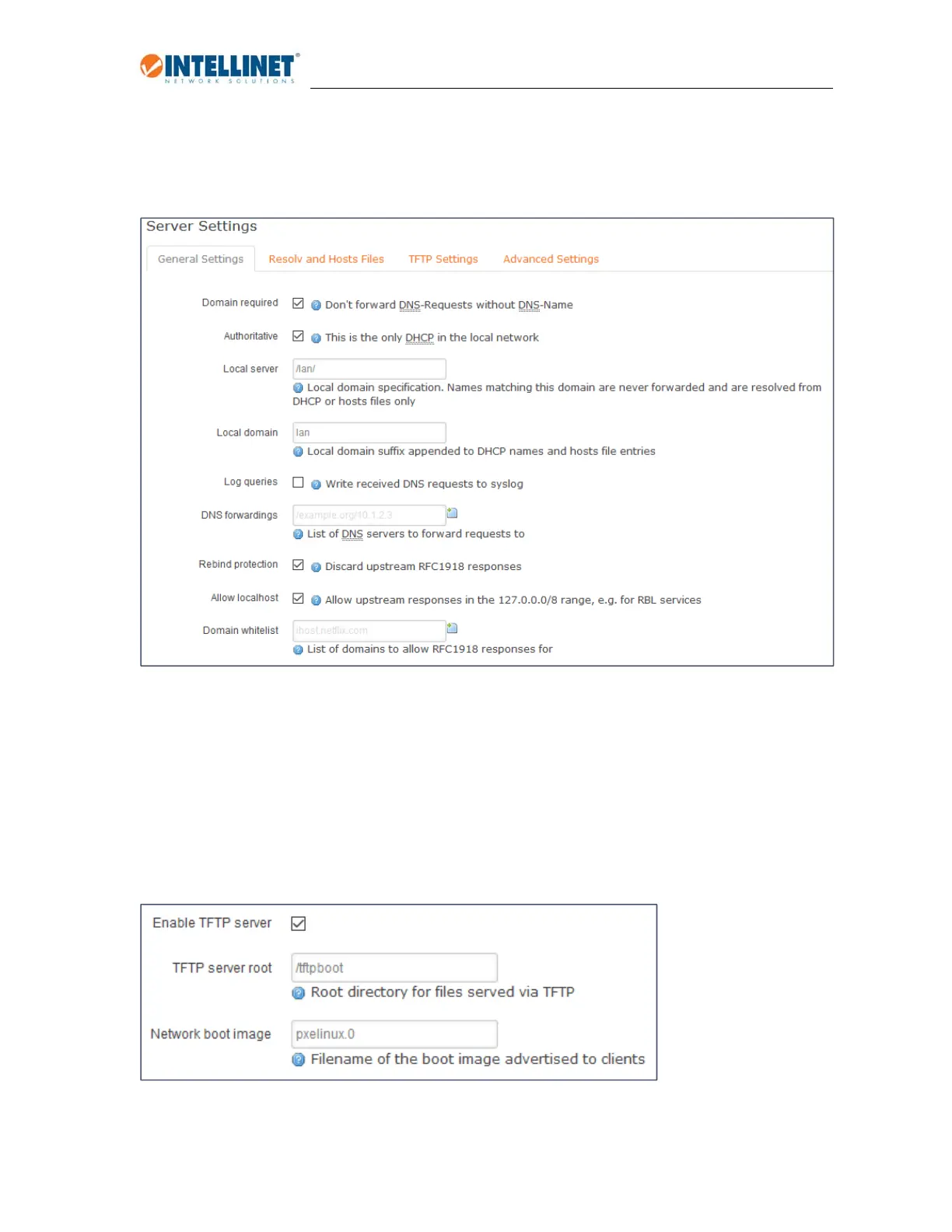

3.5.3 DHCPandDNS
Thissectionisonlyrelevantifyouareusingtheaccesspoint’sDHCPserver,wanttoconfigureDNSrelated
settingsandsetupTFTP. 



3.5.3.1 GeneralSettings/ResolvandHostsFiles
AlloftheseoptionsareforadvanceduserswithgoodknowledgeabouttheinnerworkingsofTCP/IPin
general,andDNSinparticular.Mostusersarewelladvisedtogivethisentiresectionawideberth.

3.5.3.2 TFTPSettings
OpenWRTusesDnsmasqasitsdefaultDNSforwarderandDHCPserver.Itisalsohasabuilt‐inTFTPserver.
DnsmasqallowsyoutohosttheTFTPfilesonyourrouter.Inordertodothat,youneedtospecifythe
TFTProotfolder,andthenameofthenetworkbootimage.



Intellinet 525800 Specifications

General

High power	Yes
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	-
USB port	No
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Flash memory	8 MB
Certification	CC Class B, CE Mark, RoHS
Frequency band	2.4 – 2.483 GHz GHz
Internal memory	64 MB
Processor model	Qualcomm Atheros AR9341
Maximum data transfer rate	100 Mbit/s
Frequency range	2.4 - 2.483 GHz
Security algorithms	802.1x RADIUS, WEP, WPA, WPA-TKIP, WPA2, WPA2-AES
Antennas quantity	2
Antenna gain level (max)	3 dBi
Product color	White
LED indicators	Power
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Output current	2 A
Output voltage	48 V
Power source type	AC
Power consumption (typical)	9 W
Number of products included	1 pc(s)
Chipset	Atheros AR9341
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	42.5 mm
Width	144 mm
Weight	800 g
