Intellinet 525800 User Manual

High-Power Ceiling Mount Wireless 300N PoE Access Point
36

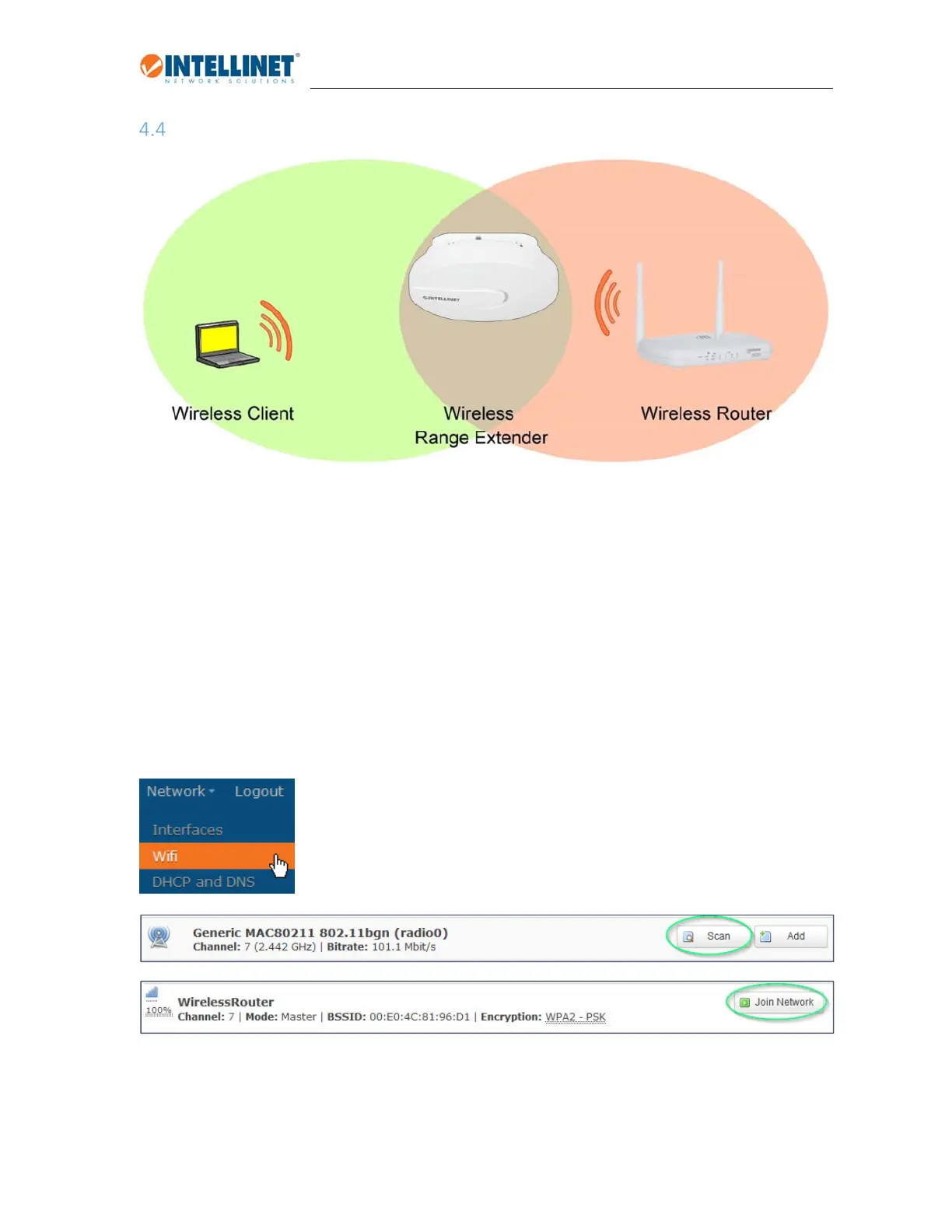

Howtosetuptheaccesspointasawirelessrepeater?


Awirelessrepeater(alsocalledwirelessrangeextender)takesanexistingsignalfromawirelessrouteror
wirelessaccesspointandrebroadcastsittocreateasecondnetwork.Theeffectisthattherangeofthe
wirelessnetworkisincreased.Theotherfunctionofthewirelessrepeateristhatitcreatesabridgeto
anotherwirelessnetworkforallclientsthatareconnectedtotheLANportontheaccesspoint.In
summary,therearetwofunctionsthattheaccesspointneedstodo:
1. Createawirelessbridgeconnectiontoanotherwirelessnetwork
2. CreatealocalwirelessnetworkforWi‐Ficlientstoconnectto.

InordertosetuptheIntellinetaccesspointasawirelessrepeater,youneedtoperformaseriesofsteps.
Weareusinganaccesspointthatissettothefactorydefaultsettings,andwearerepeatingthesignalof
awirelessnetworkwiththeSSID“WirelessRouter”,whichissecuredwithWPA2encryption.






