xGen Installation & Programming Guide 103
13. DONE. Your Channels are now set up and ready for use. When an event is
generated by the system or a zone it can now be sent to a Channel for
reporting.

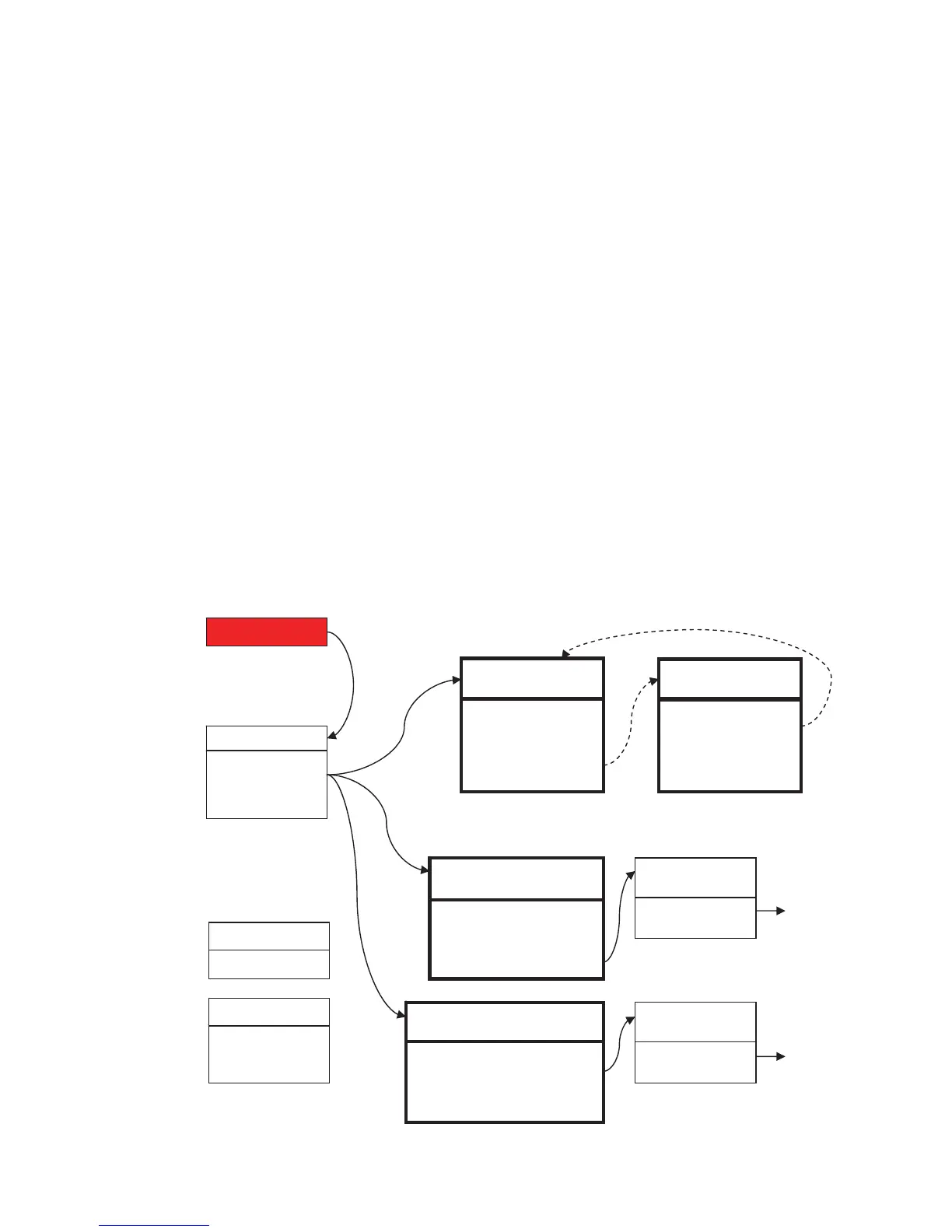

Example
In this example we have multi-path, prioritised/selective event reporting via three
reporting paths – two control rooms and an email address. These are grouped
into “Channel Group 1”.
All alarms are reported to Control Room 1 and 2. Control room 1 has a backup
receiver. This requires setting up 3 channels. These channels are labelled on the
diagram.
When Channel 1/4/2 receives an alarm message, xGen checks that the
channel’s Event List includes alarm messages and then attempts to deliver the
message via that channel.
When Channel 1/4/2 receives a low battery report, it is not actioned because
Event List 1 does not include the “low battery” event.
Low priority alerts such as opening and closings, low batteries, and autotest
reports, are sent via Channel 3 as an email to a building manager.
When Channel 3 receives the alarm event it takes no further action because
Event List 2 does not include the “alarm” event.
Channel Group 1
Channel 1
Channel 2
Channel 3
Zone 3 in Alarm
Menu 17 – Event Lists
Alarms
Event List 1
Channel 2
Control Room 2
Format = Radio
Phone = 0433 111 111
Event List = 1
Next Channel = 0
Channel 3
Email
Format = Email
Destination = Alex@home.com
Event List = 2
Next Channel = 0
Channel 1
Control Room 1
Format = Dial IP
Phone = 9999 1111
Event List = 1
Channel Attempts = 3
Next Channel = 4
Menu 18 – Channel Groups
Partition send
s
account numbe
r
and event to
Channel Group
Channel Group
sends Event t
o
every Channel i
t
contain
s
Menu 5 – Channels
Channel 4
Control Room 1
Format = Dial IP
Phone = 9999 2222
Event List = 1
Channel Attempts = 3
Next Channel = 0
A
fter failing Channel Attempts on the last back up channel,
x
Gen will go back to the first Channel in the chain
Report Attempts = 2
Channel checks to see if the
event is on its Event List, if yes it
will attempt to send, if not then it
stops
Opening &
Closing
Low Battery
Event List 2
Communicator
Email
Server settings
Communicator
Radio
Control room
settings
If it does not succeed after
Channel Attempts, it will try
sending on the next Channel
x
Gen attempts to
send event via
email over
ethernet
x
Gen attempts to
send event via
GSM radio module
