NXG-220 20 zone expander 135 x 80 x 64 mm 180 g
NXG-504 4 relay output expander 135 x 80 x 55 mm 150 g
NXG-510 10 relay output expander 135 x 80 x 64 mm 180 g
NXG-64-CPU 64 zone panel no IP, CPU 147 x 127 x 58 mm 340 g
NXG-64IP-CPU 64 zone panel /w IP, CPU 147 x 127 x 58 mm 340 g
Fuses
Battery 4 A, resettable
12 V aux 2 A, resettable
System LAN 2 A, resettable
Output, high current output J10 POS |
Siren, high current output J7 OP1+ | 2A combined
Strobe, high current output J7 OP2+ |
Mains, mains fuse: 500 mA, fast 20x5
Note: Mains fuse is part of the mains terminal block.
Maintenance
No regular maintenance needed. System will report servicing when necessary
System monitoring

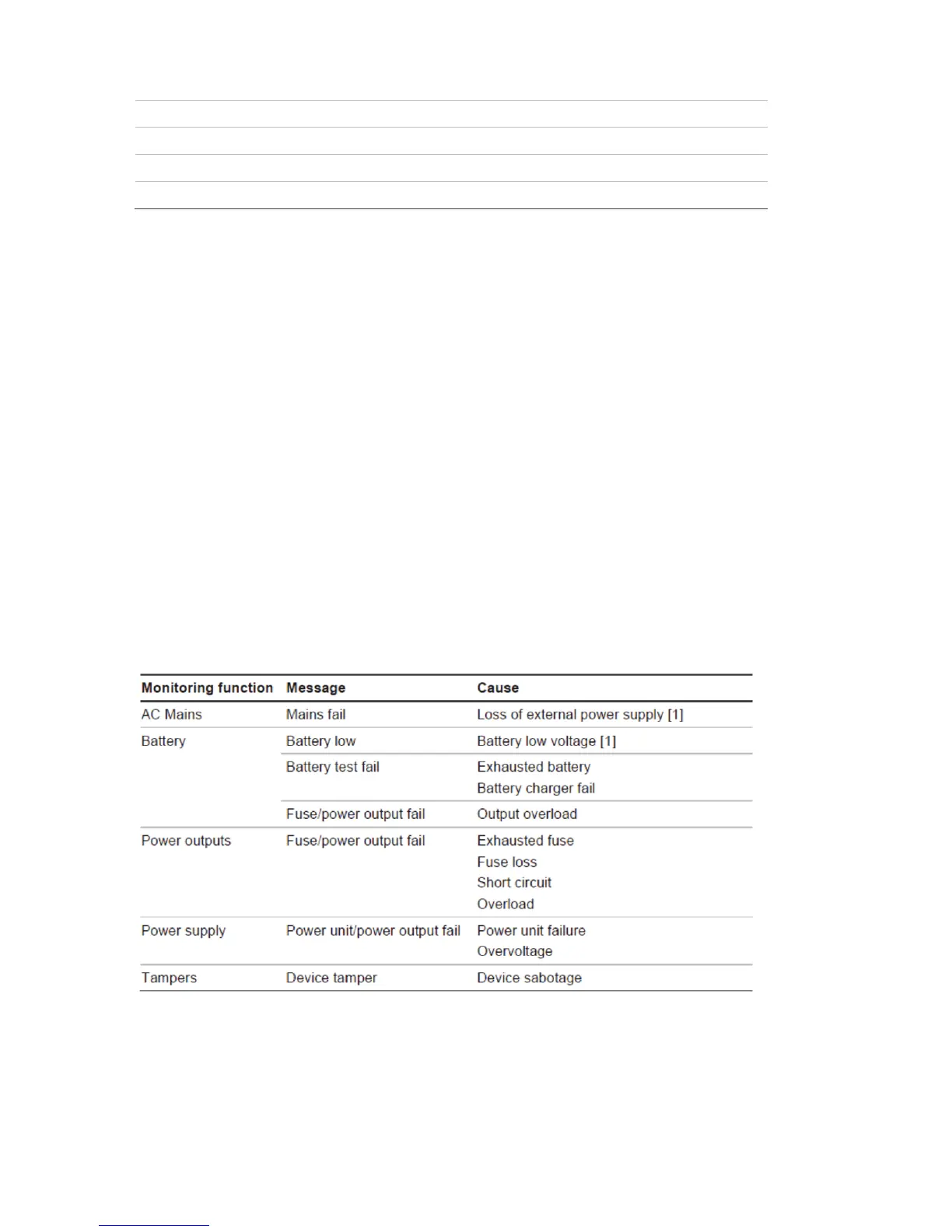

The system provides monitoring for the following items.
