32 xGen Installation & Programming Guide
• Turn chime mode on and off
• Add, remove and edit users
• Access to the advanced programming menu
Connect to xGen Web Server over LAN
1. Turn on power to your system
2. Connect an Ethernet cable to the rear of the xGen and wait 10 sec for the
local router to assign the xGen an IP address if DHCP is available.
3. On the keypad press Menu – [PIN] – [ENTER] – Installer – Communicator –
IP Configuration – IP Address and note the IP address displayed.
4. Open your web browser
5. Enter the IP address from step 3 and the xGen login screen should appear.
Some browsers may require you to enter http://
6. Enter your username and password, by default this is installer and 9713

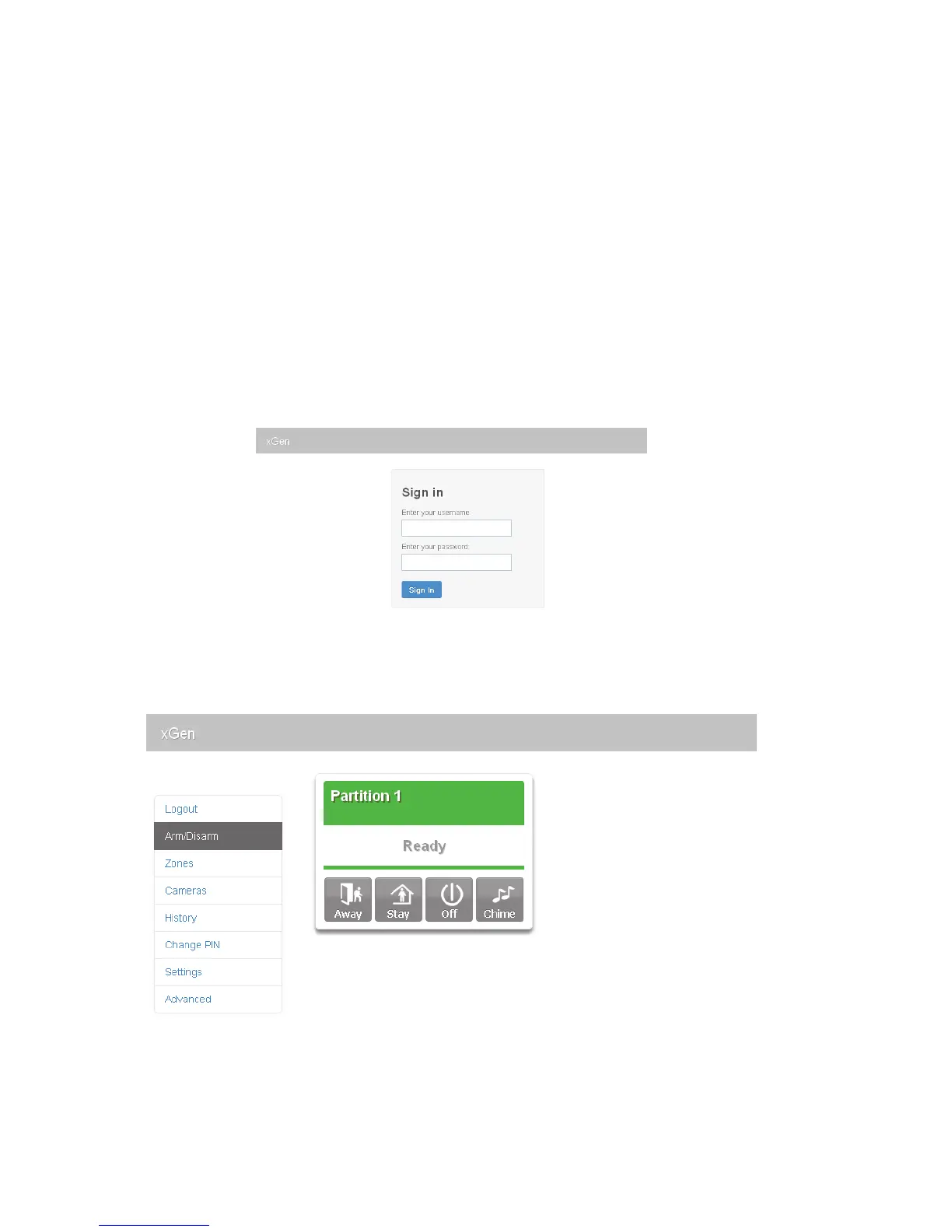

7. You should now see a screen similar to:
