xGen Installation & Programming Guide
59
8.

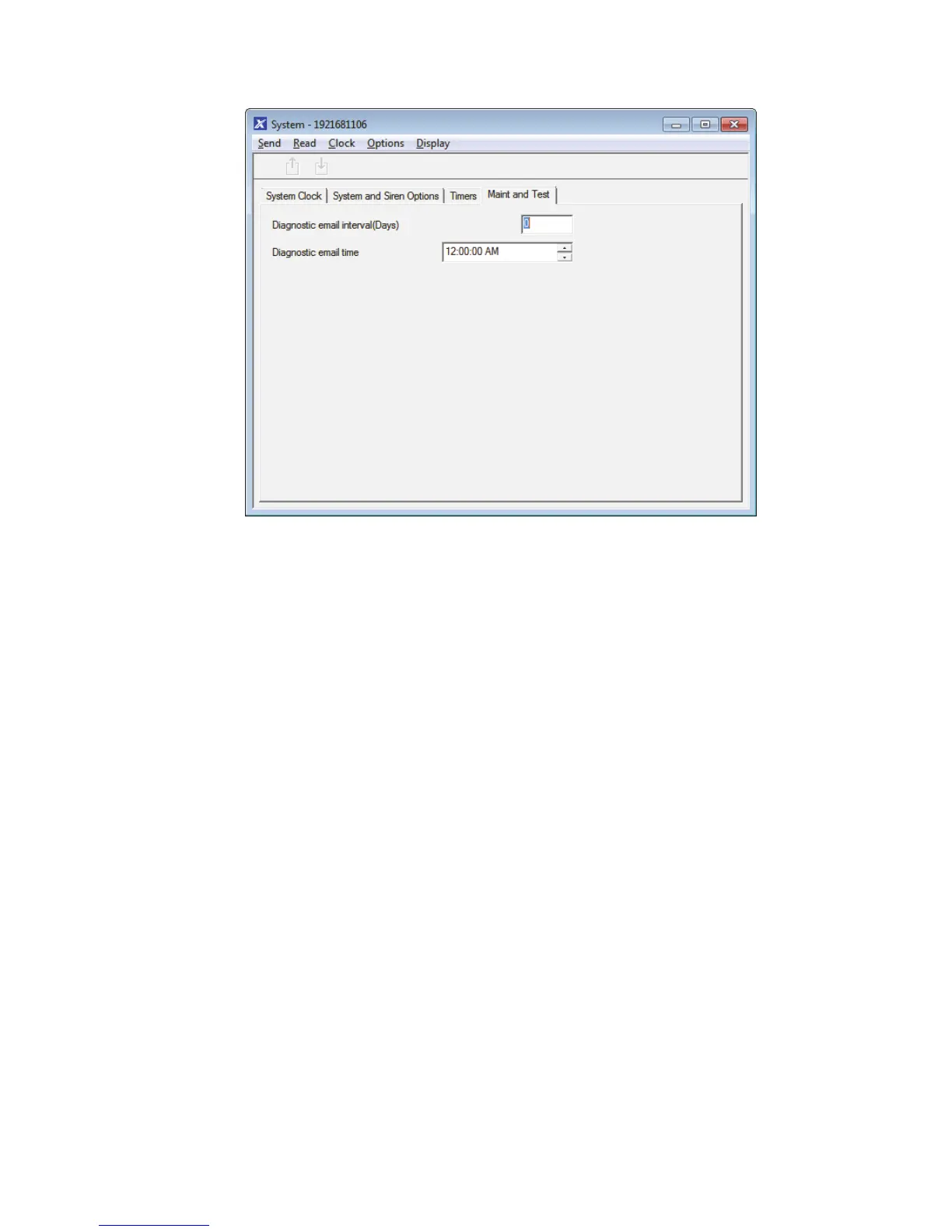

Go to Maintenance and Test
9.
Enter a Diagnostic email interval. This
is the number of days to wait before
sending an email at the specified time
. This verifies email communication is
working.
60
62
Table of Contents
Default Chapter
1
Programming Guide
1
Table of Contents
3
Important Information
6
Limitation of Liability
6
Product Warnings
6
Warranty Disclaimers
7
Disclaimer
8
Intended Use
8
Advisory Messages
9
Introduction
10
System Capacity
10
Xgen Product Codes
11
NXG-001 Xgen Plastic Enclosure
12
NXG-003 Xgen Metal Enclosure
13
Power Requirements
13
Grounding
14
Shielding
14
Termination Links
14
Cable Requirements
15
Xgen Wiring Diagram
16
Ferrite Installation
17
Xgen Terminal Diagram
18
Xgen LED Indicator Diagram
19
Xgen Specifications
21
Mains Power Specifications
21
Power Supply Specifications
21
General Features
21
Current Consumption
22
Output Current Rating
23
Auxiliary Current and Battery Capacity
23
Environmental
23
Physical Dimensions and Weight
23
Fuses
24
Maintenance
24
System Monitoring
24
SIA and CID Reporting Code Descriptions
25
EN50131-3 Compliancy
30
Options Affected by en 50131 Regulations
30
Optional Functions
31
EN 50131 Compliance Precautions
31
Programming Methods
32
Method 1 - DLX900 Management Software
32
Method 2 - Xgen Web Server
33
Method 3 - Ultraconnect App
38
Troubleshooting
44
Recommended Items to Change
45
System Status Messages
47
App and Web Error Messages
48
Arming and Disarming Your System
50
Keypress Tamper
50
Arm Your System in Away Mode
50
Arm Your System in Stay Mode
50
Disarm One or more Partitions
51
Activate SOS Feature
51
Configure Email Reporting
52
Xgen Building Blocks
53
System Diagram
54
Presets - Just Click and Go
55
Programming with Presets
56
Programming Guide for Xgen
57
Quick Start Guide
58
Programming Instructions for System Options
59
Programming Instructions for Permissions
63
Programming Instructions for Menus
65
Programming Instructions for Holidays
66
Programming Instructions for Users
70
Programming Instructions for Zones
73
Programming Instructions for Custom Zones
76
Programming Instructions for Partitions
79
Menu Overview
80
Programming Instructions for Schedules
83
Programming Instructions for Arm-Disarm
87
Programming Instructions for Communicator
92
Programming Instructions for Ultraconnect
98
Programming Instructions for Event Lists
100
Programming Instructions for Channels
102
Programming Instructions for Zone Reporting
106
Programming Instructions for System Event Reporting
109
Programming Instructions for Actions
111
Programming Instructions for Action Groups
113
Programming Instructions for Scenes
115
Programming Instructions for Outputs
116
Combining Actions with Schedules
117
Programming Instructions for Speech Tokens
118
Upgrading Firmware Using USBUP
120
Upgrading Firmware Using DLX900
121
Index
122
