xGen Installation & Programming Guide 73

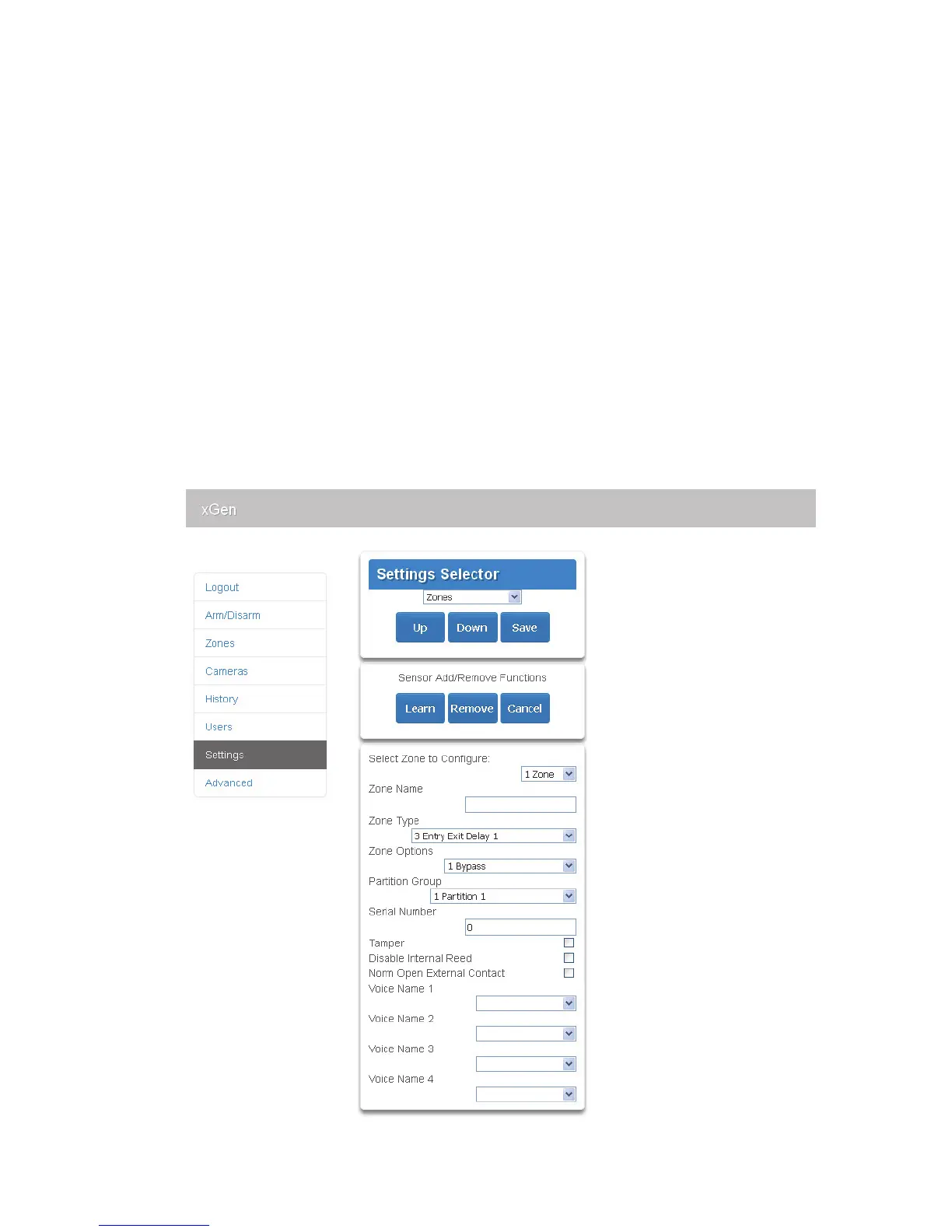

5. Select a zone options preset.
6. Select a Partition group for the zone. If you want a zone to be in its own
Partition then select a Partition group with only one Partition. To create a
zone in a common Partition, select a Partition group with multiple Partitions.
Alternatively come back to this step later.
7. For a standard installation set the schedule to a preset which is 24 hours
every day, holidays should NOT be ticked in this schedule. This will enable
the first zone profile.
If you want the zone settings to change based on a schedule, then select the
first schedule here.
8. If you are setting up a keyswitch zone then the user number field controls
which user profile will be used to arm/disarm that Partition. When this zone is
activated then it will report as this user number.
9. If you are programming a second zone profile, then go to that now and repeat
steps 4-7.
