Interpump SS71 - 3 Screw Tightening Calibration

ENGLISH
22
3 SCREW TIGHTENING CALIBRATION
Description Exploded
view position
Tightening
torque Nm
Bearing Cover Fixing Screw 9 10
Oil drain plug 11-88 40
Lifting bracket xing screw 61 40
Con-Rod Cap Fixing Screw 16 30*
Piston guide rod xing
screws
96 10
Piston Fixing 29 20
Head Fixing Screw 38 60**
Valve Cover Fixing Screw 39 120***
“A” type Flange Fixing Screw 63 40
Fixing Screw Coupl. SAE C 70 40
2nd PTO Flange Fixing
Screw
75 360****
Screw Fixing Cov. Red. 77 40
Red.Gear Fixing Screw 82 70
Red.Gearbox Fixing Screw 77 40
* The con-rod cap xing screws must be tightened
respecting the phases indicated on page17.

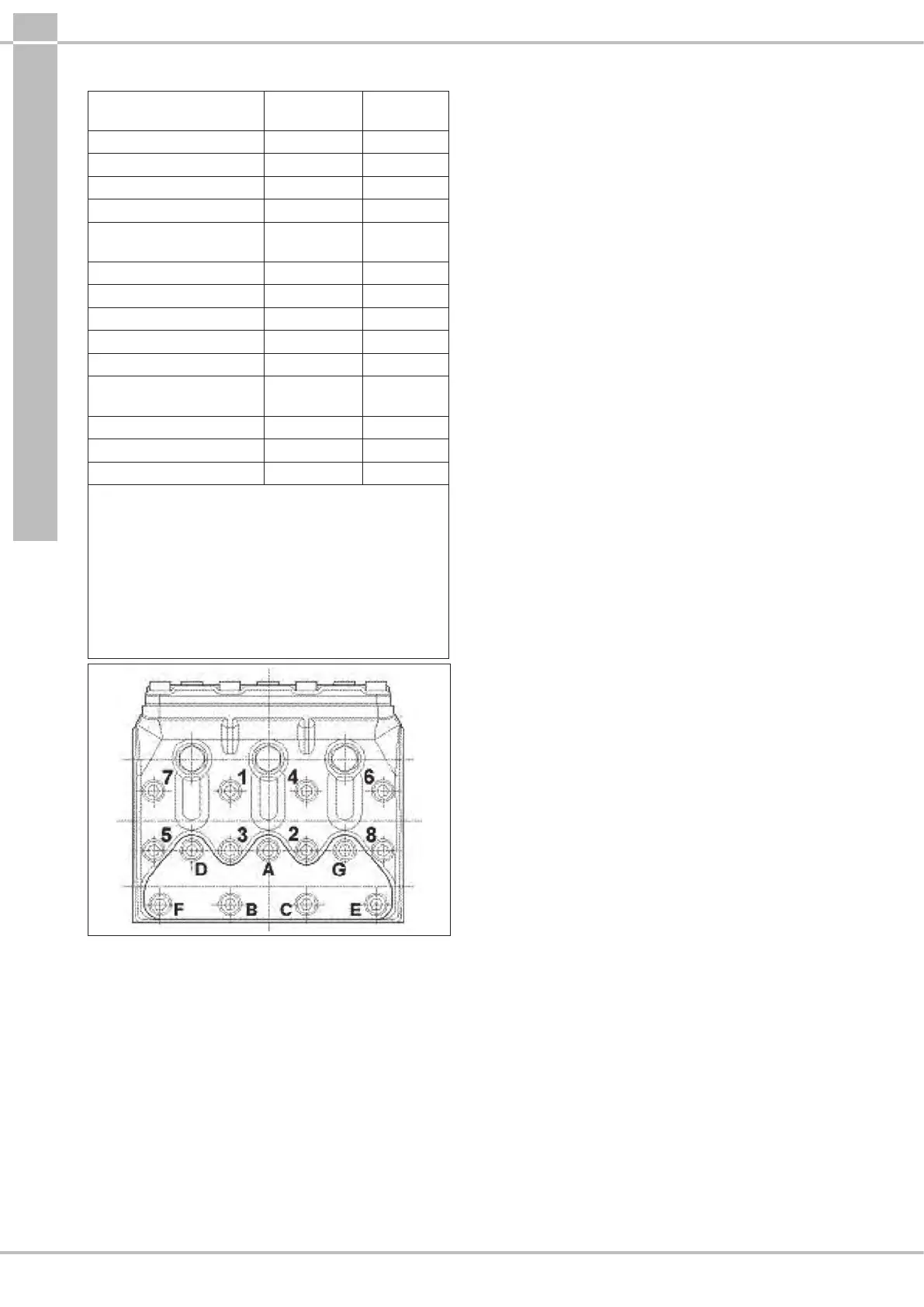

** The head xing screws must be tightened with a
torque wrench, lubricating the underhead, respecting
the order in Fig.24.
*** The valve cover xing screws must be tightened
with a torque wrench, lubricating the underhead,
respecting the order in Fig.24.
**** The PTO 2nd ange xing screw must be tightened
with a torque wrench, using Loctite 243 Blue.
Fig.24
