30

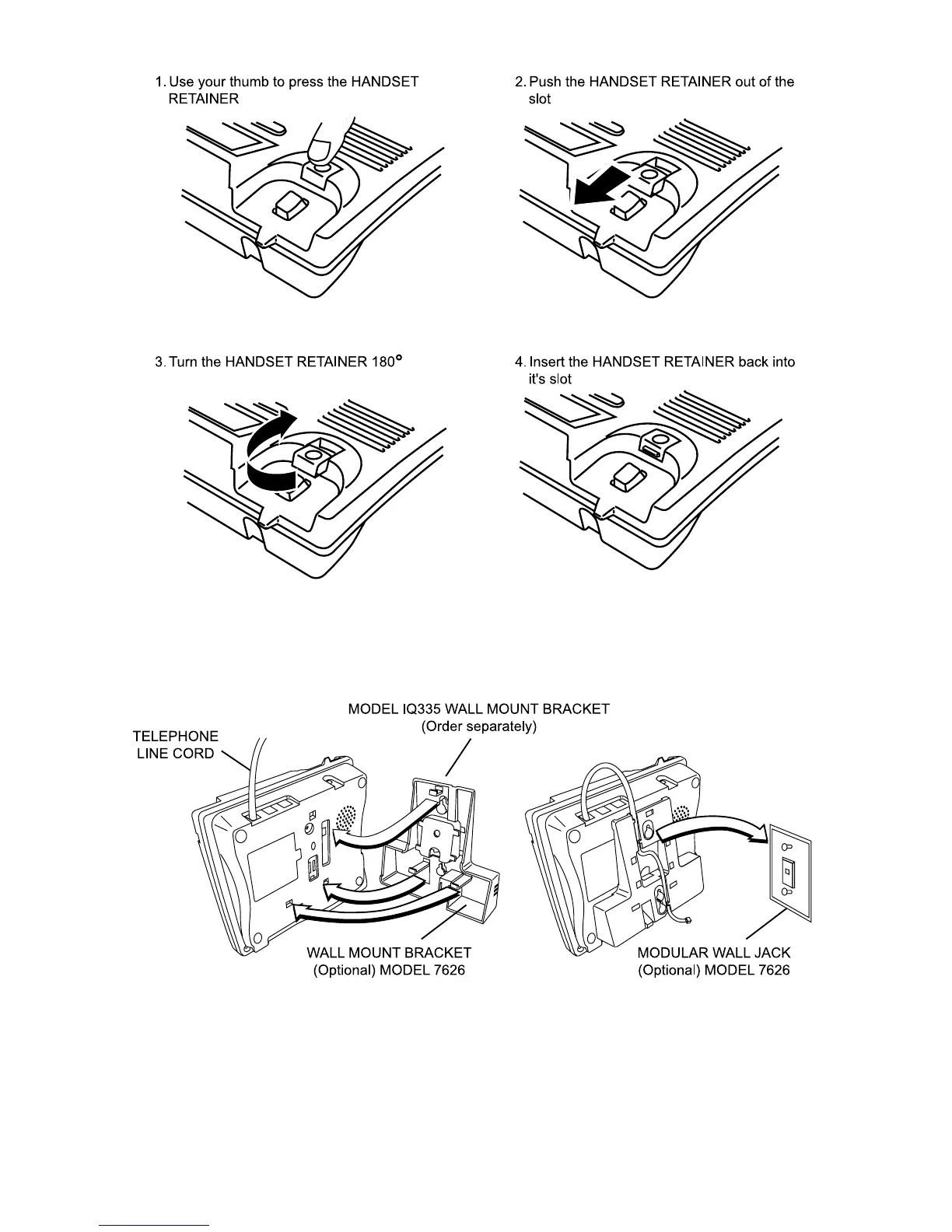

FIGURE 6A : WALL MOUNTING
FIGURE 6B : IQ335 WALL MOUNT BRACKET. 7626 MODULAR WALL JACK AND LINK CORD
Note: The IQ335 Wall Mount Bracket, 7626 Modular Wall Jack and link cord illustrated in Figure 6B are
available from your authorised Interquartz dealer and can be ordered together as Wall Mount Kit
No.4.
