DriveControl DC-20/DC-54
Product information
DIP switches
The DIP switches enable selection of the speed and direction of transport. In
state of delivery the DIP switches DIR and Reserve are OFF and the DIP
switches SPEED A, B, C, D are switched to ON.
* The rotation direction is reversed when the input DIR is switched.
DIP switches ON OFF
DIR Rotation direction of
RollerDrive in clockwise
direction (seen from the
connection cable side) *
Rotation direction of
RollerDrive in anticlockwise
direction (seen from the
connection cable side) *
SPEED A, B,
C, D
Speed setting (see "Operation", page 24)
Reserve not occupied

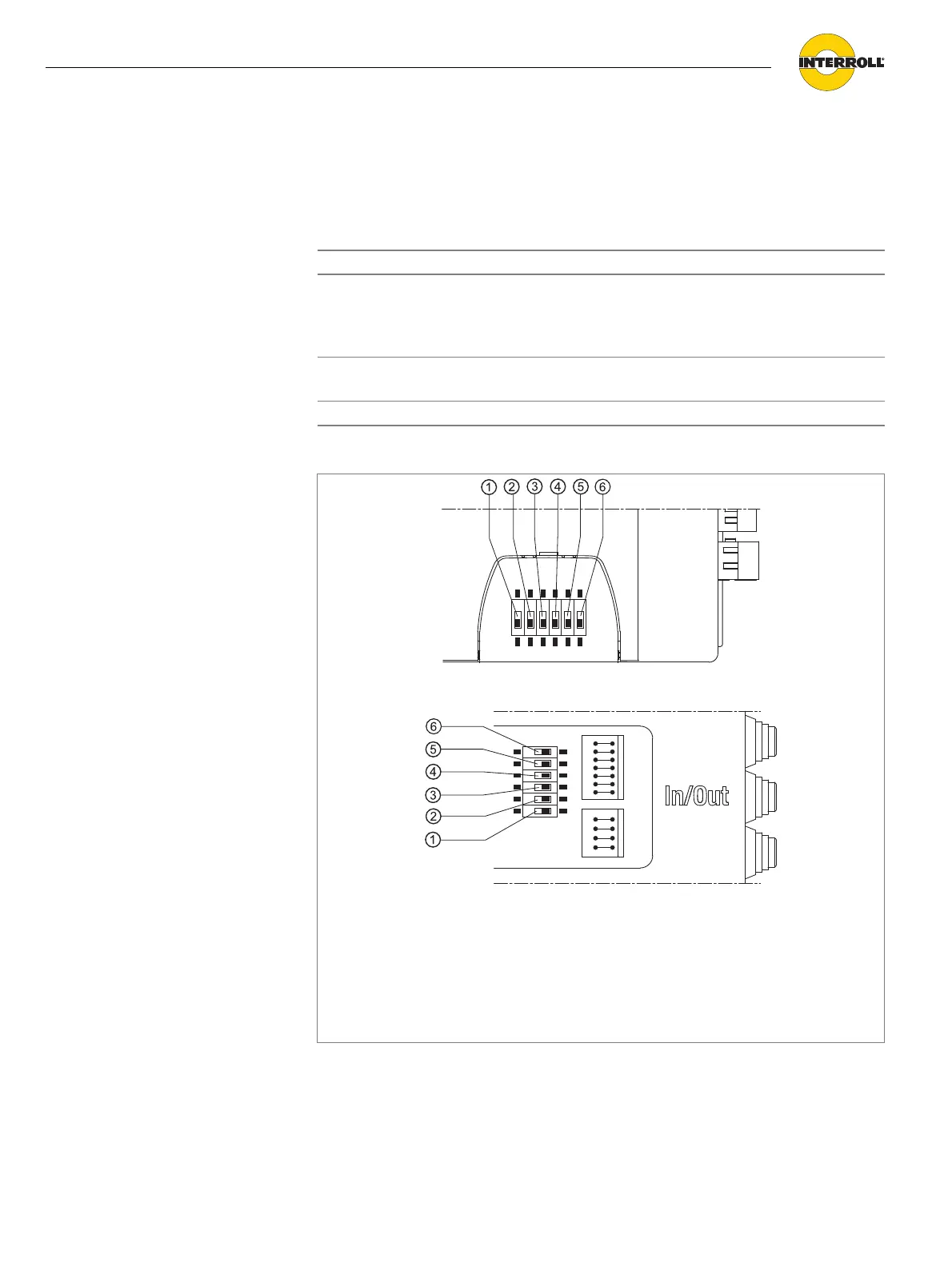

DIP switches on DriveControl 20
DIP switches on DriveControl 54
1 DIR
2 SPEED A
3 SPEED B
4 SPEED C
5 SPEED D
6 Reserve
