18
Version 2.0 (11/2013) en
Translation of the original instructions
DriveControl DC-20/DC-54
Assembly

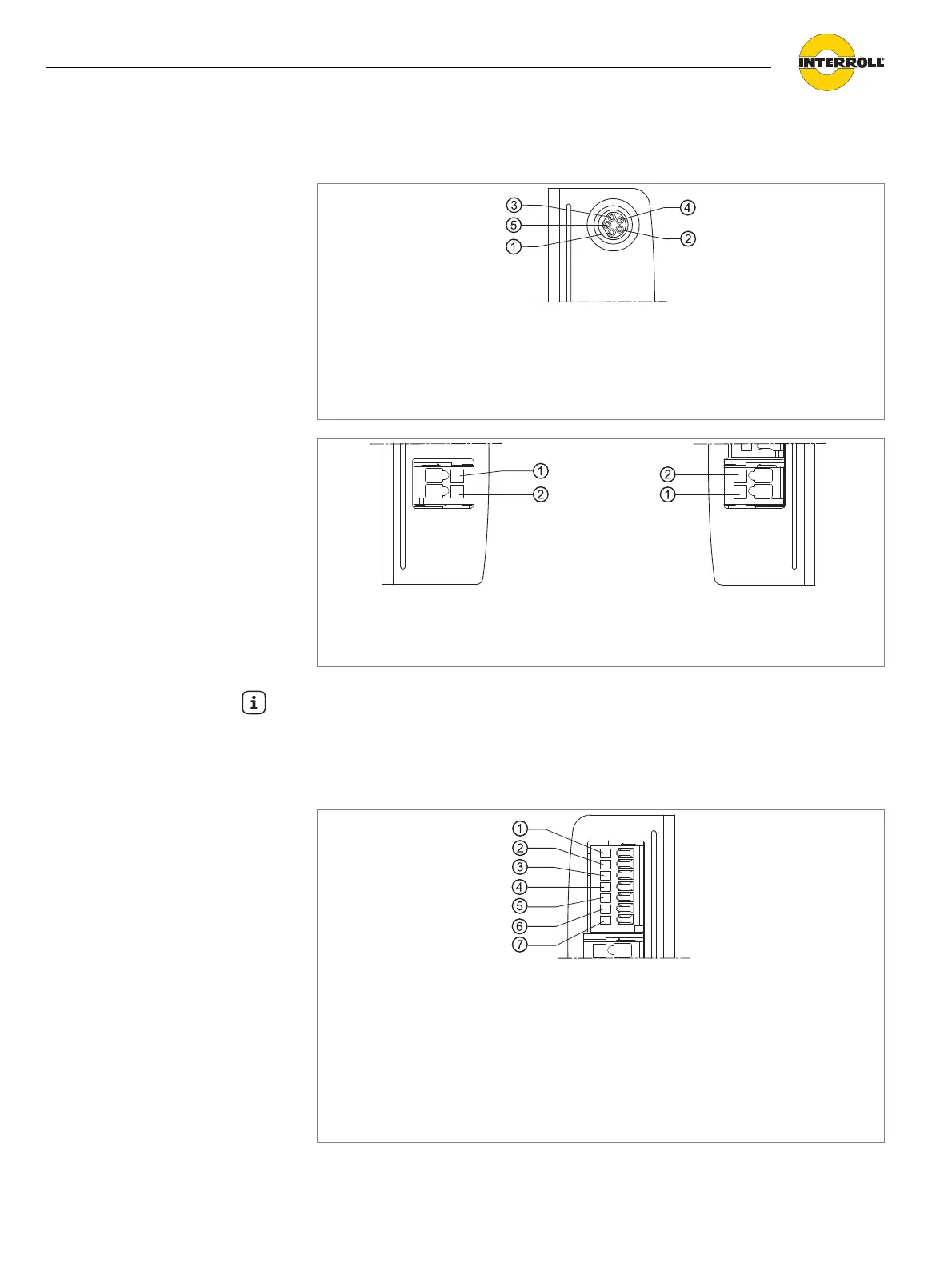

Inputs and outputs
DriveControl 20
Connection RollerDrive: 8 mm snap-in, 5 poles, contact configuration
according to DIN EN 61076-2
1 +24 V DC
2 Output for rotation direction
3 Earth
4 Input for fault
5 Output for speed
Power supply connection
Mating plug: WAGO 734-102/xxx-xxx
1 +24 V DC 2 GND (Earth)
Hint
The power supply connection is double in order to connect the power supply from
the most convenient side during installation. Both connections are directly
interconnected internally. The power supply can be implemented with a
DriveControl so that a maximum of two DriveControls can be connected in
sequence.
Connection of inputs/outputs
Mating plug: WAGO 733-107/xxx-xxx
1 COMMON GND (Common signal
earth)
2 24 V EXT (Power supply for signal
ERROR)
3 ERROR (Output for fault)
4 DIR (Rotation direction)
5 SPEED C (Input for speed setting)
6 SPEED B (Input for speed setting)
7 SPEED A (Input for speed setting)
