Layout - Remote Display
‘DOWN’ SELECTION
OR LOW
BRIGHTNESS
CONTROL. ALSO
USED TO TURN OFF
BACKLIGHT.
‘UP’ SELECTION
OR HIGH
BRIGHTNESS
CONTROL.
CONFIRMATION
SELECTION BUTTON.
ALSO USED TO
SWITCH BETWEEN
AUXILIARY AND
MAIN BATTERY.
FOR SWITCHING
BETWEEN TWO
CHARGING DEVICES.
ALSO USED AS
BACK AND EXIT
BUTTON.

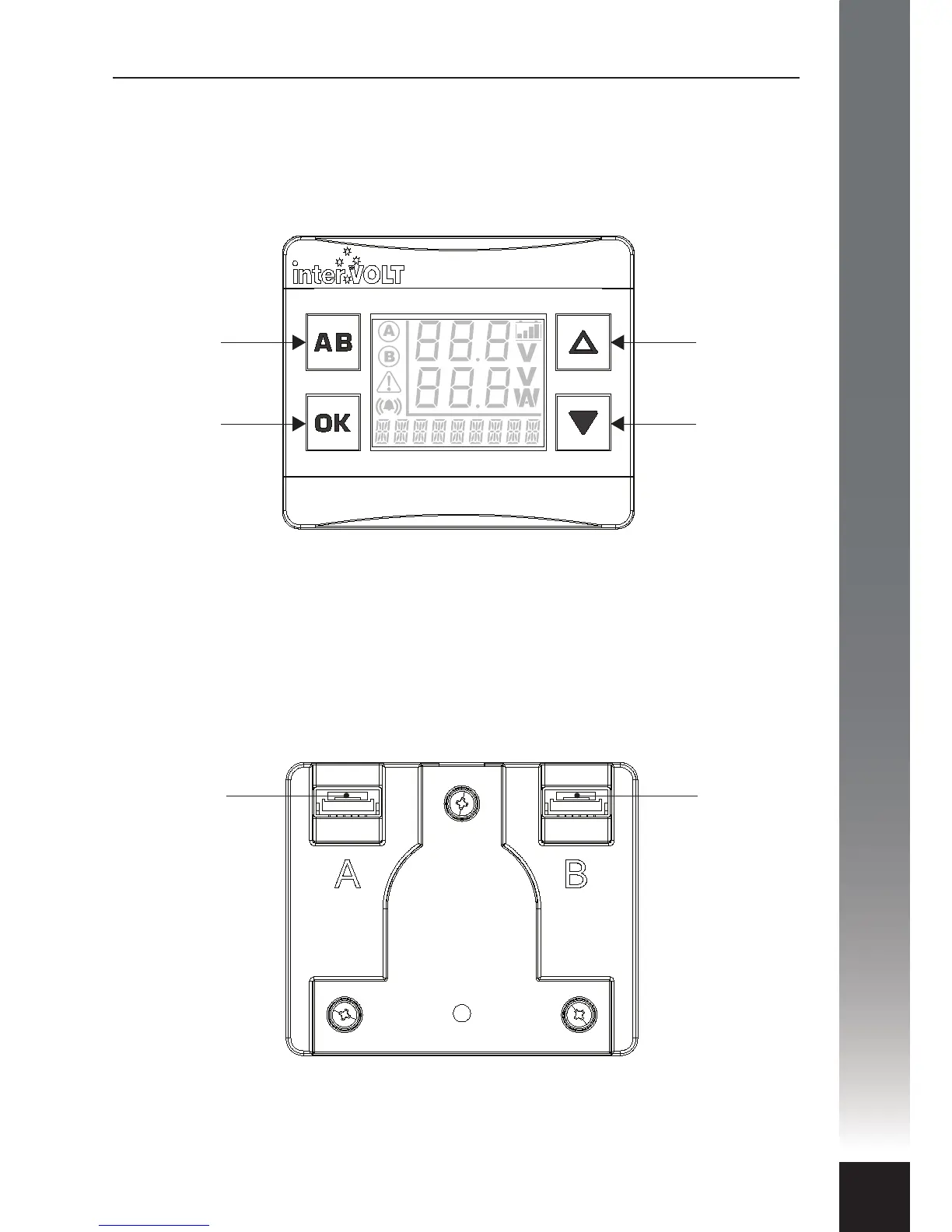

Front View
Back View
CHARGING
DEVICE
INPUT
A
CHARGING
DEVICE
INPUT
B
Note: Images above shown approximately actual size.
