Preset Stimulation patterns

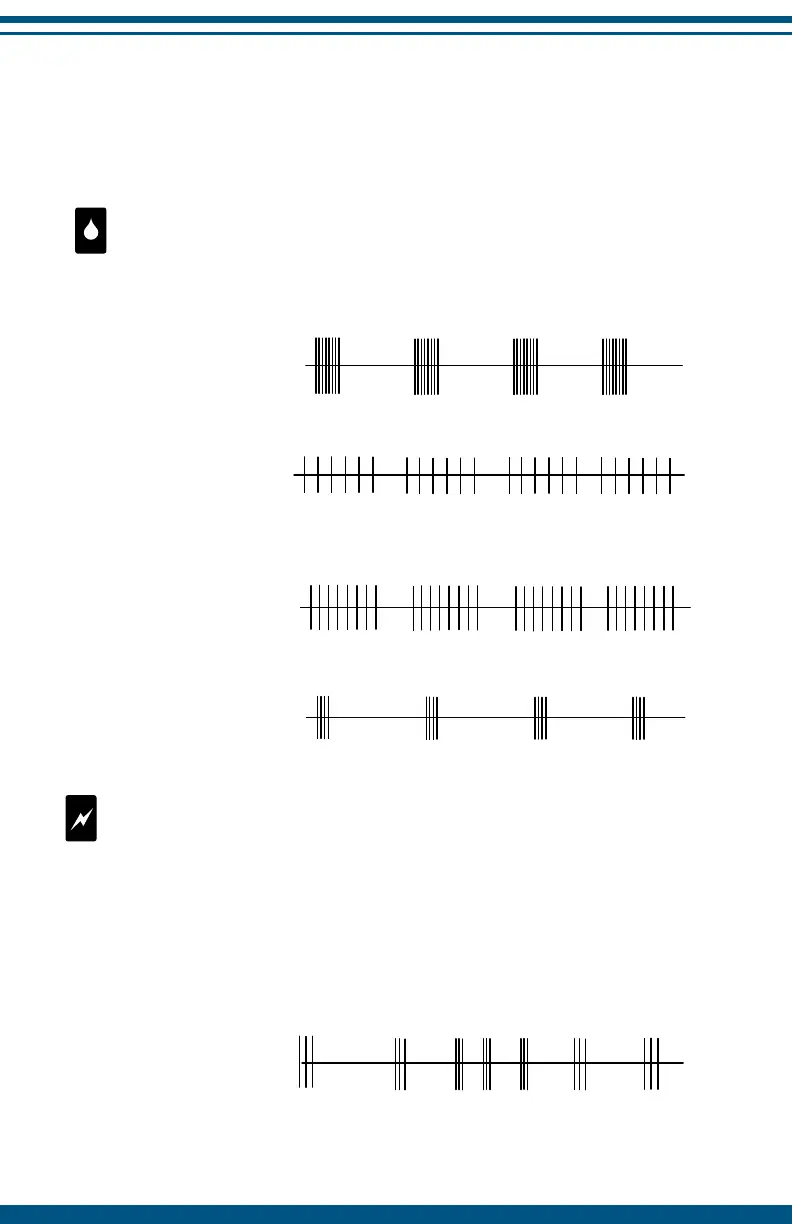

Below is an approximate illustration of the stimulation pattern
for each preset.
15
BURST Stim Patterns Presets 1, 3, 4, 6
Burst preset patterns indicated by an asterisk ( *).
Preset 1: 480*s PPS -
8 impulses per burst; 60 bursts per second.
The delay between impulses within the burst is short making this a very
aggressive preset.
Preset 3: 360* PPS -
6 impulses per burst; 60 bursts per second.
Preset 4: 480* PPS -
8 impulses per burst; 60 bursts per second. The
delay between impulses is longer than 480*s making this a less
aggressive preset.
Preset 6: 240* PPS -
4 impulses per burst; 60 bursts per second.
VARIABLE Stim Patterns Presets 2, 5, 7, 9
Patterns with a range between two frequencies. This is shown by the
Note: Stimulation may continue for up to 7 seconds after removing electrodes
from skin as the variable pattern is completed.
highest and lowest PPS in the range.
Preset 2: 90-360 PPS - 3 pulses per burst; variable between 30 and
120 bursts per second.
